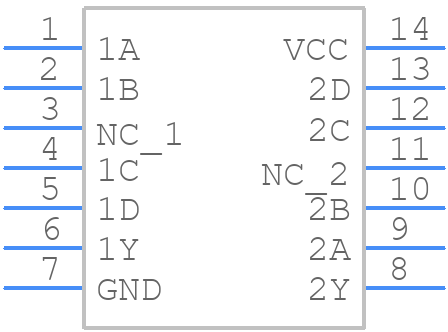

Part Symbol
-
Footprint
-

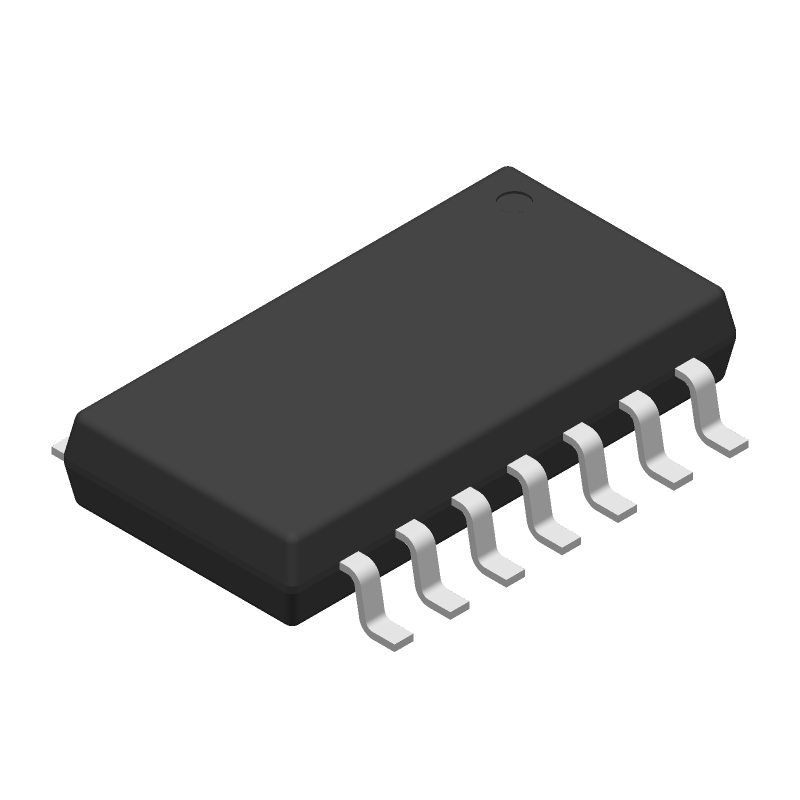

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74AS21NSR by Texas Instruments
Results Overview of SN74AS21NSR by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Financial Technology (Fintech)
Healthcare
SN74AS21NSR Information
SN74AS21NSR by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74AS21NSR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-SN74AS21NSR-ND
|
DigiKey | IC GATE AND 2CH 4-INP 14SO Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
42000 In Stock |
|
$1.6100 | Buy Now |
|
DISTI #
296-13162-1-ND
|
DigiKey | IC GATE AND 2CH 4-INP 14SO Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.5783 / $2.6900 | Buy Now |
|
DISTI #
595-SN74AS21NSR
|
Mouser Electronics | Logic Gates Dual 4-Input Pos RoHS: Compliant | 0 |
|
$1.5300 / $1.5700 | Order Now |
|
DISTI #
86032238
|
Verical | AND Gate 2-Element 4-IN Bipolar 14-Pin SOP T/R RoHS: Compliant Min Qty: 205 Package Multiple: 1 Date Code: 1101 | Americas - 16000 |
|
$1.5500 / $1.8375 | Buy Now |
|
DISTI #
86031110
|
Verical | AND Gate 2-Element 4-IN Bipolar 14-Pin SOP T/R RoHS: Compliant Min Qty: 205 Package Multiple: 1 Date Code: 1001 | Americas - 14000 |
|
$1.5500 / $1.8375 | Buy Now |
|
DISTI #
86017669
|
Verical | AND Gate 2-Element 4-IN Bipolar 14-Pin SOP T/R RoHS: Compliant Min Qty: 205 Package Multiple: 1 Date Code: 0601 | Americas - 12000 |
|
$1.5500 / $1.8375 | Buy Now |
|
|
Rochester Electronics | SN74AS21 Dual 4-Input Positive-AND Gates RoHS: Compliant Status: Active Min Qty: 1 | 42000 |
|
$1.2400 / $1.5500 | Buy Now |
Part Details for SN74AS21NSR
SN74AS21NSR CAD Models
SN74AS21NSR Part Data Attributes
|
|
SN74AS21NSR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74AS21NSR
Texas Instruments
2-ch, 4-input, 4.5-V to 5.5-V ultra-high-speed (4 ns) bipolar AND gate 14-SOP 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | AS | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 10.2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | AND GATE | |
| Max I(ol) | 0.02 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Inputs | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 12 mA | |
| Prop. Delay@Nom-Sup | 6 ns | |
| Propagation Delay (tpd) | 6 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | TTL | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
