SN74AHC74DRE4 by: Texas Instruments

Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear and Preset 14-SOIC -40 to 125

Part Details for SN74AHC74DRE4 by Texas Instruments

Results Overview of SN74AHC74DRE4 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SN74AHC74DRE4 Information

SN74AHC74DRE4 by Texas Instruments is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for SN74AHC74DRE4

Part # Distributor Description Stock Price Buy
Vyrian Logic ICs 577
RFQ

Part Details for SN74AHC74DRE4

SN74AHC74DRE4 CAD Models

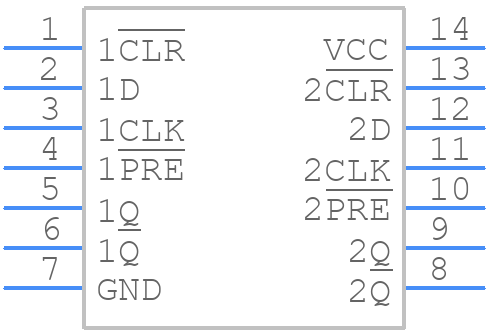

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SN74AHC74DRE4 Part Data Attributes

Parametric Data
SN74AHC74DRE4 Texas Instruments
Buy Now Datasheet
Compare Parts:
SN74AHC74DRE4 Texas Instruments Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear and Preset 14-SOIC -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description SOP, SOP14,.25
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Family AHC/VHC/H/U/V
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Length 8.65 mm
Load Capacitance (CL) 50 pF
Logic IC Type D FLIP-FLOP
Max Frequency@Nom-Sup 75000000 Hz
Max I(ol) 0.008 A
Moisture Sensitivity Level 1
Number of Bits 1
Number of Functions 2
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Polarity COMPLEMENTARY
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR, 13 INCH
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.02 mA
Prop. Delay@Nom-Sup 10.5 ns
Propagation Delay (tpd) 17.5 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Trigger Type POSITIVE EDGE
Width 3.9 mm
fmax-Min 110 MHz

Alternate Parts for SN74AHC74DRE4

This table gives cross-reference parts and alternative options found for SN74AHC74DRE4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74AHC74DRE4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SN74AHC74DRG4 Texas Instruments Check for Price AHC/VHC/H/U/V SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 SN74AHC74DRE4 vs SN74AHC74DRG4
Part Number Manufacturer Composite Price Description Compare
SN74AHC74DE4 Texas Instruments Check for Price AHC/VHC/H/U/V SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 SN74AHC74DRE4 vs SN74AHC74DE4
SN74AHC74DGV Texas Instruments Check for Price AHC SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, PLASTIC, TVSOP-14 SN74AHC74DRE4 vs SN74AHC74DGV
TC74VHC175FN Toshiba America Electronic Components Check for Price IC AHC/VHC SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO16, 0.150 INCH, 1.27 MM PITCH, LEAD FREE, PLASTIC, SOL-16, FF/Latch SN74AHC74DRE4 vs TC74VHC175FN
74VHC74N Fairchild Semiconductor Corporation Check for Price D Flip-Flop, AHC/VHC/H/U/V Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDIP14, 0.300 INCH, LEAD FREE, PLASTIC, MS-001BA, DIP-14 SN74AHC74DRE4 vs 74VHC74N
5962-9686001QCA Texas Instruments Check for Price Dual Positive-Edge-Triggered D-type Flip-Flops With Clear And Preset 14-CDIP -55 to 125 SN74AHC74DRE4 vs 5962-9686001QCA
PI74STX2G74DX Pericom Semiconductor Corporation Check for Price D Flip-Flop, STX Series, 1-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO8, US-8 SN74AHC74DRE4 vs PI74STX2G74DX
PI74STEX2G74UEX Pericom Semiconductor Corporation Check for Price D Flip-Flop, STEX Series, 1-Func, Positive Edge Triggered, 1-Bit, Complementary Output, PDSO8, MSOP-8 SN74AHC74DRE4 vs PI74STEX2G74UEX
74LV175D NXP Semiconductors Check for Price IC LV/LV-A/LVX/H SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO16, 3.90 MM, PLASTIC, MS-012AC, SOT-109-1, SO-16, FF/Latch SN74AHC74DRE4 vs 74LV175D
S9334W NXP Semiconductors Check for Price IC 93 SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CQFP16, FF/Latch SN74AHC74DRE4 vs S9334W
SNJ54AHC74FK Texas Instruments Check for Price Dual Positive-Edge-Triggered D-type Flip-Flops With Clear And Preset 20-LCCC -55 to 125 SN74AHC74DRE4 vs SNJ54AHC74FK
