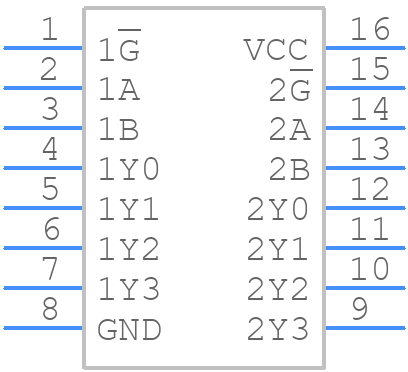

Part Symbol
-

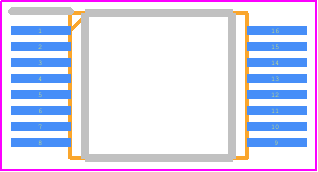

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74AHC139DGVR by Texas Instruments
Results Overview of SN74AHC139DGVR by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74AHC139DGVR Information
SN74AHC139DGVR by Texas Instruments is a Decoder/Driver.
Decoder/Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74AHC139DGVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-SN74AHC139DGVR
|
Mouser Electronics | Encoders, Decoders, Multiplexers & Demultiplexers Dual RoHS: Compliant | 1404 |
|
$0.1150 / $0.3000 | Buy Now |
|
DISTI #
86283928
|
Verical | Decoder/Demultiplexer Dual 2-to-4 16-Pin TVSOP T/R RoHS: Compliant Min Qty: 2511 Package Multiple: 1 Date Code: 1101 | Americas - 18000 |
|
$0.1116 / $0.1494 | Buy Now |
|
|
Rochester Electronics | SN74AHC139 Dual 2-Line To 4-Line Decoders / Demultiplexers RoHS: Compliant Status: Active Min Qty: 1 | 24601 |
|
$0.0893 / $0.1440 | Buy Now |
Part Details for SN74AHC139DGVR

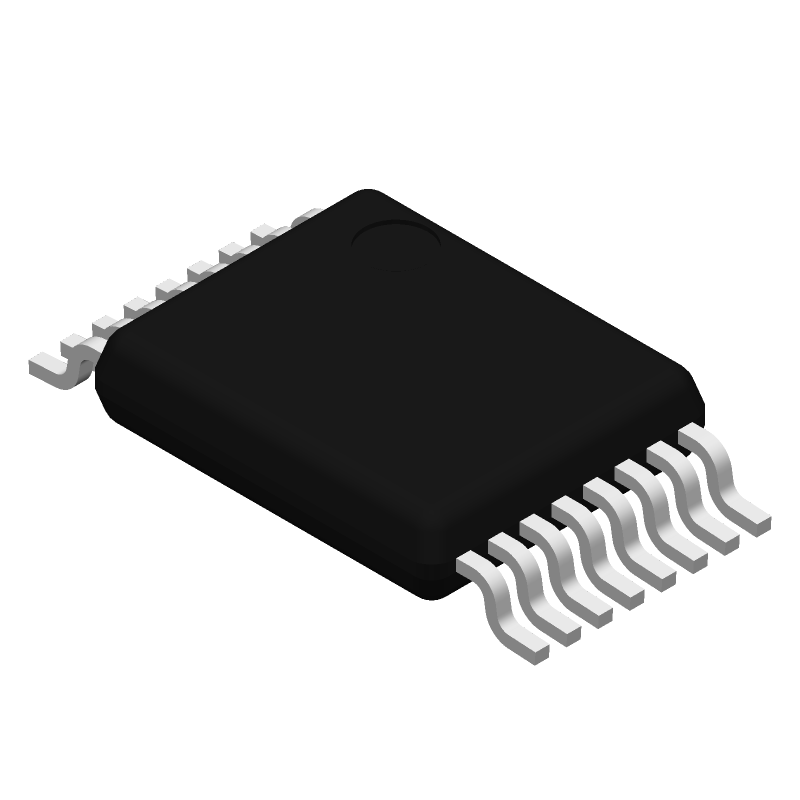

SN74AHC139DGVR CAD Models
SN74AHC139DGVR Part Data Attributes
|
|
SN74AHC139DGVR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74AHC139DGVR
Texas Instruments
Dual 2-line to 4-line demultiplexer and decoder 16-TVSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | AHC/VHC/H/U/V | |
| Input Conditioning | STANDARD | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 4.4 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | 2-LINE TO 4-LINE DECODER | |
| Max I(ol) | 0.008 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25,16 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.04 mA | |
| Prop. Delay@Nom-Sup | 10.5 ns | |
| Propagation Delay (tpd) | 16.5 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.6 mm |
Alternate Parts for SN74AHC139DGVR
This table gives cross-reference parts and alternative options found for SN74AHC139DGVR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74AHC139DGVR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74AHC139DGVRE4 | Texas Instruments | Check for Price | AHC/VHC/H/U/V SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, GREEN, PLASTIC, TVSOP-16 | SN74AHC139DGVR vs SN74AHC139DGVRE4 |
SN74AHC139DGVR Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the SN74AHC139DGVR is 2.0 V to 5.5 V.
-
To ensure proper power-on and power-off, it is recommended to follow a slow power-up and power-down sequence, with a rise and fall time of at least 1 ms/V.
-
The maximum frequency of operation for the SN74AHC139DGVR is 100 MHz.
-
Unused inputs should be tied to a valid logic level (VCC or GND) to prevent floating inputs and ensure proper device operation.
-
The thermal resistance of the SN74AHC139DGVR package (VQFN) is 24.6°C/W (junction-to-ambient) and 10.4°C/W (junction-to-case).
