SN74AHC139DBR by: Texas Instruments

Dual 2-line to 4-line demultiplexer and decoder 16-SSOP -40 to 125

Part Details for SN74AHC139DBR by Texas Instruments

Results Overview of SN74AHC139DBR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SN74AHC139DBR Information

SN74AHC139DBR by Texas Instruments is a Decoder/Driver.
Decoder/Drivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for SN74AHC139DBR

Part # Distributor Description Stock Price Buy
DISTI # 2156-SN74AHC139DBR-ND
DigiKey IC DECODER/DEMUX 1 X 2:4 16-SSOP Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 13993
In Stock
  • 1,913 $0.1600
$0.1600 Buy Now
DISTI # 296-4544-1-ND
DigiKey IC DECODER/DEMUX 1 X 2:4 16-SSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 3965
In Stock
  • 1 $0.3200
  • 10 $0.2220
  • 25 $0.1976
  • 100 $0.1700
  • 250 $0.1569
  • 500 $0.1490
  • 1,000 $0.1425
  • 2,000 $0.1371
  • 4,000 $0.1327
  • 6,000 $0.1305
  • 10,000 $0.1281
  • 14,000 $0.1266
  • 20,000 $0.1253
  • 50,000 $0.1223
$0.1223 / $0.3200 Buy Now
DISTI # 595-SN74AHC139DBR
Mouser Electronics Encoders, Decoders, Multiplexers & Demultiplexers Dual RoHS: Compliant 955
  • 1 $0.3200
  • 10 $0.2220
  • 25 $0.1980
  • 100 $0.1700
  • 250 $0.1490
  • 1,000 $0.1380
  • 2,000 $0.1300
  • 10,000 $0.1260
  • 20,000 $0.1250
$0.1250 / $0.3200 Buy Now
DISTI # 86288691
Verical Decoder/Demultiplexer Dual 2-to-4 16-Pin SSOP T/R RoHS: Compliant Min Qty: 2397 Package Multiple: 1 Date Code: 1201 Americas - 7993
  • 2,397 $0.1565
  • 10,000 $0.1395
  • 100,000 $0.1169
$0.1169 / $0.1565 Buy Now
Bristol Electronics   603
RFQ
Quest Components IC,DECODER/DEMUX,2-TO-4-LINE,AHC/VHC-CMOS,SSOP,16PIN,PLASTIC 1600
  • 1 $0.8270
  • 16 $0.3722
  • 135 $0.2481
$0.2481 / $0.8270 Buy Now
Quest Components IC,DECODER/DEMUX,2-TO-4-LINE,AHC/VHC-CMOS,SSOP,16PIN,PLASTIC 434
  • 1 $0.8850
  • 15 $0.3983
  • 127 $0.2655
$0.2655 / $0.8850 Buy Now
Quest Components IC,DECODER/DEMUX,2-TO-4-LINE,AHC/VHC-CMOS,SSOP,16PIN,PLASTIC 100
  • 1 $0.2481
  • 21 $0.2068
  • 49 $0.1654
$0.1654 / $0.2481 Buy Now
Rochester Electronics SN74AHC139 Dual 2-Line To 4-Line Decoders / Demultiplexers RoHS: Compliant Status: Active Min Qty: 1 13993
  • 100 $0.1508
  • 500 $0.1357
  • 1,000 $0.1252
  • 10,000 $0.1116
  • 100,000 $0.0935
$0.0935 / $0.1508 Buy Now

Part Details for SN74AHC139DBR

SN74AHC139DBR CAD Models

  • Part Symbol

    Part Symbol

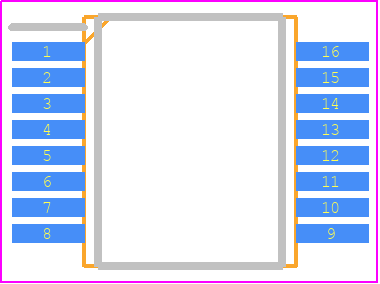

  • Footprint

    footprint

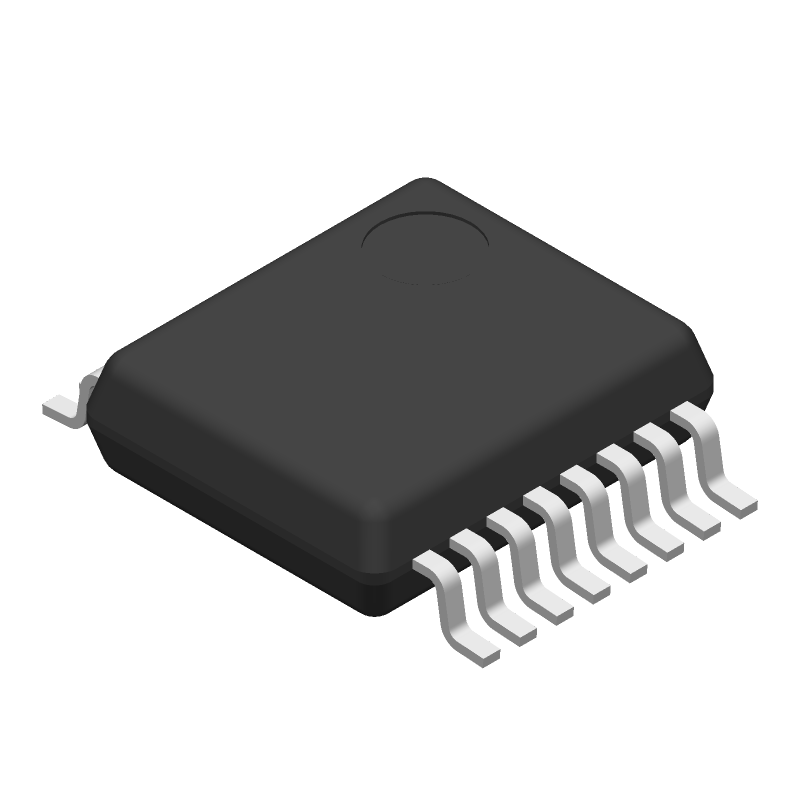

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SN74AHC139DBR Part Data Attributes

Parametric Data
SN74AHC139DBR Texas Instruments
Buy Now Datasheet
Compare Parts:
SN74AHC139DBR Texas Instruments Dual 2-line to 4-line demultiplexer and decoder 16-SSOP -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Pin Count 16
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Family AHC/VHC/H/U/V
Input Conditioning STANDARD
JESD-30 Code R-PDSO-G16
JESD-609 Code e4
Length 6.2 mm
Load Capacitance (CL) 50 pF
Logic IC Type 2-LINE TO 4-LINE DECODER
Max I(ol) 0.008 A
Moisture Sensitivity Level 1
Number of Bits 4
Number of Functions 2
Number of Terminals 16
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP16,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.04 mA
Prop. Delay@Nom-Sup 10.5 ns
Propagation Delay (tpd) 16.5 ns
Qualification Status Not Qualified
Seated Height-Max 2 mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 5.3 mm

Alternate Parts for SN74AHC139DBR
