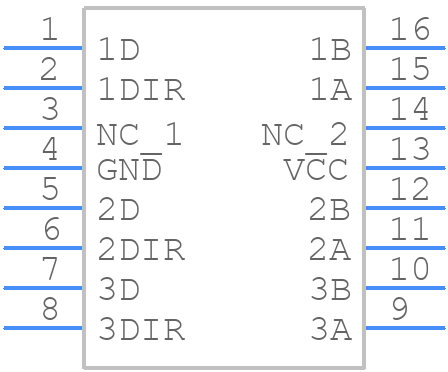

Part Symbol
-
Footprint
-

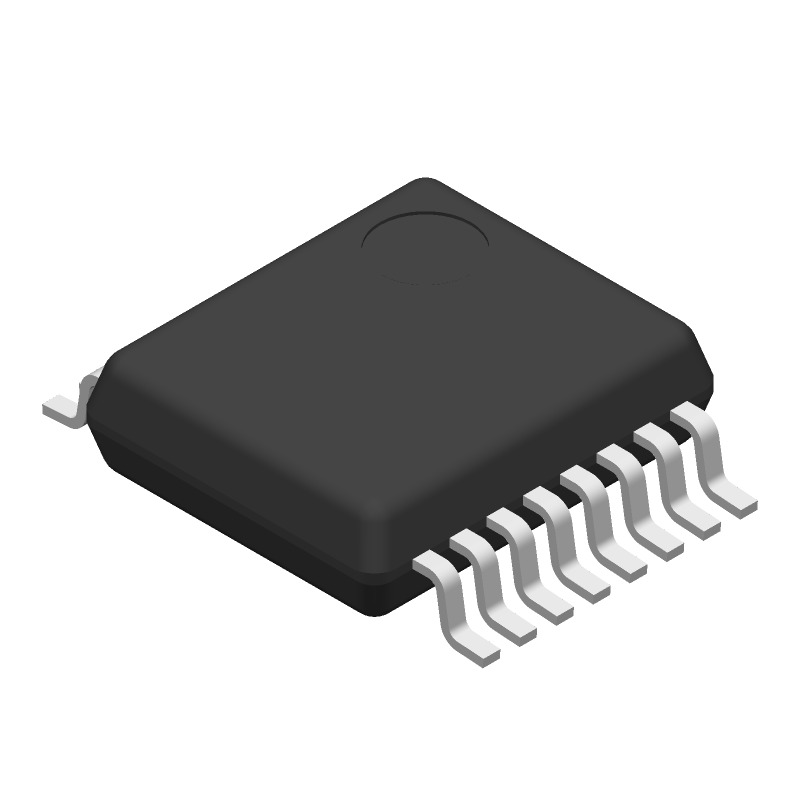

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN65LBC170DB by Texas Instruments
Results Overview of SN65LBC170DB by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN65LBC170DB Information
SN65LBC170DB by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SN65LBC170DB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-9702-5-ND
|
DigiKey | IC TRANSCEIVER HALF 3/3 16SSOP Min Qty: 1 Lead time: 12 Weeks Container: Tube | Temporarily Out of Stock |
|
$10.4037 / $16.3000 | Buy Now |
|
DISTI #
595-SN65LBC170DB
|
Mouser Electronics | SCSI Interface IC Triple Differential Transceivers A 595-SN65LBC170DBR RoHS: Compliant | 6 |
|
$10.1300 / $16.3000 | Buy Now |
|
|
Bristol Electronics | 24 |
|
RFQ |
Part Details for SN65LBC170DB
SN65LBC170DB CAD Models
SN65LBC170DB Part Data Attributes
|
|
SN65LBC170DB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN65LBC170DB
Texas Instruments
Triple Differential Transceivers 16-SSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, SSOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Differential Output | YES | |
| Driver Number of Bits | 3 | |
| High Level Input Current-Max | 0.0001 A | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-422; TIA-422; EIA-485; TIA-485; ISO 8482; X3.277 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 6.2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 3 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 1 V | |
| Output Characteristics | 3-STATE | |
| Output Low Current-Max | 0.008 A | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 16 ns | |
| Receiver Number of Bits | 3 | |
| Seated Height-Max | 2 mm | |
| Supply Current-Max | 20 mA | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Supply Voltage1-Max | 5.25 V | |
| Supply Voltage1-Min | 4.75 V | |
| Supply Voltage1-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 12 ns | |
| Width | 5.3 mm |
Alternate Parts for SN65LBC170DB
This table gives cross-reference parts and alternative options found for SN65LBC170DB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN65LBC170DB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN65LBC170DBRG4 | Texas Instruments | Check for Price | TRIPLE LINE TRANSCEIVER, PDSO20, GREEN, PLASTIC, SOIC-20 | SN65LBC170DB vs SN65LBC170DBRG4 |
SN65LBC170DB Frequently Asked Questions (FAQ)
-
The SN65LBC170DB can support data rates up to 100 Mbps.
-
Yes, the SN65LBC170DB can be used in a multi-point configuration, but it requires an external hub or repeater to connect multiple devices.
-
The SN65LBC170DB has a built-in common-mode voltage filter that helps to reject common-mode noise and improve signal integrity.
-
Yes, the SN65LBC170DB is compatible with other RS-485 transceivers that comply with the EIA/TIA-485 standard.
-
The maximum cable length that can be used with the SN65LBC170DB depends on the data rate and the type of cable used, but a general guideline is to limit the cable length to 4000 feet (1219 meters) or less.
