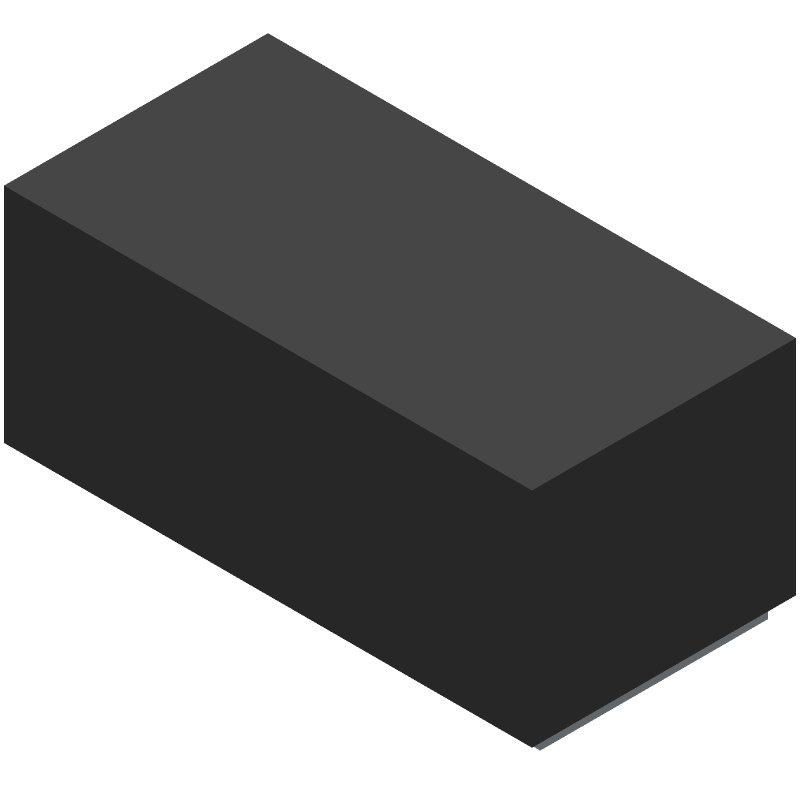

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SML-LXF1206GC-TR by ITW Lumex
Results Overview of SML-LXF1206GC-TR by ITW Lumex
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
SML-LXF1206GC-TR Information
SML-LXF1206GC-TR by ITW Lumex is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for SML-LXF1206GC-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71494749
|
RS | 1.6X3.2MM PCB SMD,565NM GRN CLR, TP&RL Min Qty: 2000 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1160 / $0.1360 | RFQ |
Part Details for SML-LXF1206GC-TR
SML-LXF1206GC-TR CAD Models
SML-LXF1206GC-TR Part Data Attributes
|
|
SML-LXF1206GC-TR
ITW Lumex
Buy Now
Datasheet
|
Compare Parts:
SML-LXF1206GC-TR
ITW Lumex
Single Color LED, Green, Water Clear, 2mm,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LUMEX INC | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Lumex | |
| Color | GREEN | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.025 A | |
| Lens Type | WATER CLEAR | |
| Luminous Intensity-Nom | 12.5 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 1.1 mm | |
| Packing Method | TR | |
| Peak Wavelength | 565 nm | |
| Shape | RECTANGULAR | |
| Size | 2 mm | |
| Surface Mount | YES | |
| Terminal Pitch | 3.25 mm | |
| Viewing Angle | 120 deg |
