Diodes / Transient Suppressors / SMAJ6.5A-TR
Datasheets
SMAJ6.5A-TR by: STMicroelectronics

400 W TVS in SMA

Part Details for SMAJ6.5A-TR by STMicroelectronics

Results Overview of SMAJ6.5A-TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMAJ6.5A-TR Information

SMAJ6.5A-TR by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMAJ6.5A-TR

Part # Distributor Description Stock Price Buy
DISTI # 33R1039
Newark Transil 400W 6.5V Unidirectional Sma, Product Range:Transil Smaj Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:6.5V, Clamping Voltage Max:14.5V, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Qualification:- Rohs Compliant: Yes |Stmicroelectronics SMAJ6.5A-TR RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape 1835
  • 1 $0.4620
  • 10 $0.2760
  • 25 $0.2290
  • 50 $0.1830
$0.1830 / $0.4620 Buy Now
DISTI # 45Y7718
Newark Transient Voltage Suppressor, Tvs, Transil Smaj Series, Unidirectional, 6.5 V, Do-214Ac, 2, 7.2 V Rohs Compliant: Yes |Stmicroelectronics SMAJ6.5A-TR RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 5,000 $0.1150
$0.1150 Buy Now
DISTI # 497-7895-1-ND
DigiKey TVS DIODE 6.5VWM 14.5V DO214AC Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 21624
In Stock
  • 1 $0.2500
  • 10 $0.1310
  • 100 $0.1120
  • 5,000 $0.0915
$0.0915 / $0.2500 Buy Now
DISTI # SMAJ6.5A-TR
Avnet Americas TVS Diode, TRANSZORB SMAJ, Unidirectional, 6.5 V, 14.5 V, DO-214AC (SMA), 2 Pins - Tape and Reel (Alt: SMAJ6.5A-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Reel 80000
  • 5,000 $0.0601
  • 10,000 $0.0585
  • 20,000 $0.0574
  • 30,000 $0.0561
  • 40,000 $0.0547
$0.0547 / $0.0601 Buy Now
DISTI # 511-SMAJ6.5A-TR
Mouser Electronics ESD Protection Diodes / TVS Diodes 400W 6.5V Unidirect RoHS: Compliant 17909
  • 1 $0.2500
  • 10 $0.1310
  • 100 $0.0940
  • 500 $0.0920
  • 5,000 $0.0910
$0.0910 / $0.2500 Buy Now
DISTI # E54:1762_06543490
Arrow Electronics Diode TVS Single Uni-Dir 6.5V 400W 2-Pin SMA T/R Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks Date Code: 2445 Europe - 20000
  • 5,000 $0.0919
$0.0919 Buy Now
DISTI # V36:1790_06556608
Arrow Electronics Diode TVS Single Uni-Dir 6.5V 400W 2-Pin SMA T/R Min Qty: 10000 Package Multiple: 5000 Lead time: 13 Weeks Date Code: 2507 Americas - 20000
  • 10,000 $0.0910
  • 15,000 $0.0901
  • 20,000 $0.0892
  • 25,000 $0.0883
  • 30,000 $0.0874
  • 50,000 $0.0865
$0.0865 / $0.0910 Buy Now
DISTI # E02:0323_00213641
Arrow Electronics Diode TVS Single Uni-Dir 6.5V 400W 2-Pin SMA T/R Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks Date Code: 2509 Europe - 15000
  • 5,000 $0.0902
$0.0902 Buy Now
DISTI # V72:2272_17700798
Arrow Electronics Diode TVS Single Uni-Dir 6.5V 400W 2-Pin SMA T/R Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 1619 Container: Cut Strips Americas - 8
  • 1 $0.0919
$0.0919 Buy Now
STMicroelectronics 400 W, 6.5 V TVS in SMA COO: France RoHS: Compliant Min Qty: 1 17909
  • 1 $0.2500
  • 10 $0.1300
  • 100 $0.0900
  • 500 $0.0900
$0.0900 / $0.2500 Buy Now
DISTI # 86030429
Verical Diode TVS Single Uni-Dir 6.5V 400W 2-Pin SMA T/R Min Qty: 4179 Package Multiple: 1 Americas - 45000
  • 4,179 $0.0898
  • 10,000 $0.0800
  • 100,000 $0.0670
$0.0670 / $0.0898 Buy Now
DISTI # 87862221
Verical Diode TVS Single Uni-Dir 6.5V 400W 2-Pin SMA T/R Min Qty: 5000 Package Multiple: 5000 Date Code: 2445 Americas - 20000
  • 5,000 $0.0919
$0.0919 Buy Now
DISTI # 89522905
Verical Diode TVS Single Uni-Dir 6.5V 400W 2-Pin SMA T/R Min Qty: 10000 Package Multiple: 5000 Date Code: 2507 Americas - 20000
  • 10,000 $0.0910
  • 15,000 $0.0901
  • 20,000 $0.0892
  • 25,000 $0.0883
  • 30,000 $0.0874
  • 50,000 $0.0865
$0.0865 / $0.0910 Buy Now
DISTI # 16538954
Verical Diode TVS Single Uni-Dir 6.5V 400W 2-Pin SMA T/R Min Qty: 5000 Package Multiple: 5000 Americas - 15000
  • 5,000 $0.0898
$0.0898 Buy Now
Rochester Electronics SMA6JxxA - TVS SMA UNI 600W - 18V RoHS: Compliant Status: Active Min Qty: 1 45000
  • 100 $0.0865
  • 500 $0.0778
  • 1,000 $0.0718
  • 10,000 $0.0640
  • 100,000 $0.0536
$0.0536 / $0.0865 Buy Now
Future Electronics SMAJ Series 7.2 V 400 W Unidirectional Surface Mount TVS Diode - DO-214AC Min Qty: 5000 Package Multiple: 5000 60000
null
  • 5,000 $0.0475
  • 10,000 $0.0467
  • 15,000 $0.0463
  • 20,000 $0.0459
  • 25,000 $0.0449
$0.0449 / $0.0475 Buy Now
DISTI # SMAJ6.5A-TR
TME Diode: TVS, 400W, 7.58V, 160A, unidirectional, SMA, reel,tape Min Qty: 1 6285
  • 1 $0.4100
  • 10 $0.3140
  • 25 $0.2770
  • 100 $0.1920
  • 250 $0.1760
  • 500 $0.1570
  • 1,000 $0.1120
  • 5,000 $0.0980
  • 10,000 $0.0850
$0.0850 / $0.4100 Buy Now
DISTI # SMAJ6.5A-TR
IBS Electronics SMAJ SERIES 7.2 V 400 W UNIDIRECTIONAL SURFACE MOUNT TVS DIODE - DO-214AC Min Qty: 5000 Package Multiple: 1 60000
  • 5,000 $0.0608
  • 10,000 $0.0598
  • 15,000 $0.0593
  • 20,000 $0.0588
  • 25,000 $0.0575
$0.0575 / $0.0608 Buy Now
DISTI # SMC-SMAJ6.5A-TR
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 336
RFQ
DISTI # SMAJ6.5A-TR
Avnet Silica TVS Diode TRANSZORB SMAJ Unidirectional 65 V 145 V DO214AC SMA 2 Pins (Alt: SMAJ6.5A-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days Silica - 115000
Buy Now
DISTI # SMAJ6.5A-TR
EBV Elektronik TVS Diode TRANSZORB SMAJ Unidirectional 65 V 145 V DO214AC SMA 2 Pins (Alt: SMAJ6.5A-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days EBV - 15000
Buy Now
LCSC 160A8/20us 400W 14.5V 7.2V 6.5V SMA(DO-214AC) ESD and Surge Protection (TVS/ESD) ROHS 95
  • 5 $0.1674
  • 50 $0.1640
  • 150 $0.1617
  • 500 $0.1523
$0.1523 / $0.1674 Buy Now
Vyrian Diodes 38552
RFQ
Win Source Electronics TVS DIODE 6.5VWM 14.5VC SMA 9890
  • 1,150 $0.0504
  • 2,455 $0.0471
  • 3,810 $0.0455
  • 5,465 $0.0423
  • 7,105 $0.0407
  • 8,880 $0.0390
$0.0390 / $0.0504 Buy Now

Part Details for SMAJ6.5A-TR

SMAJ6.5A-TR CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

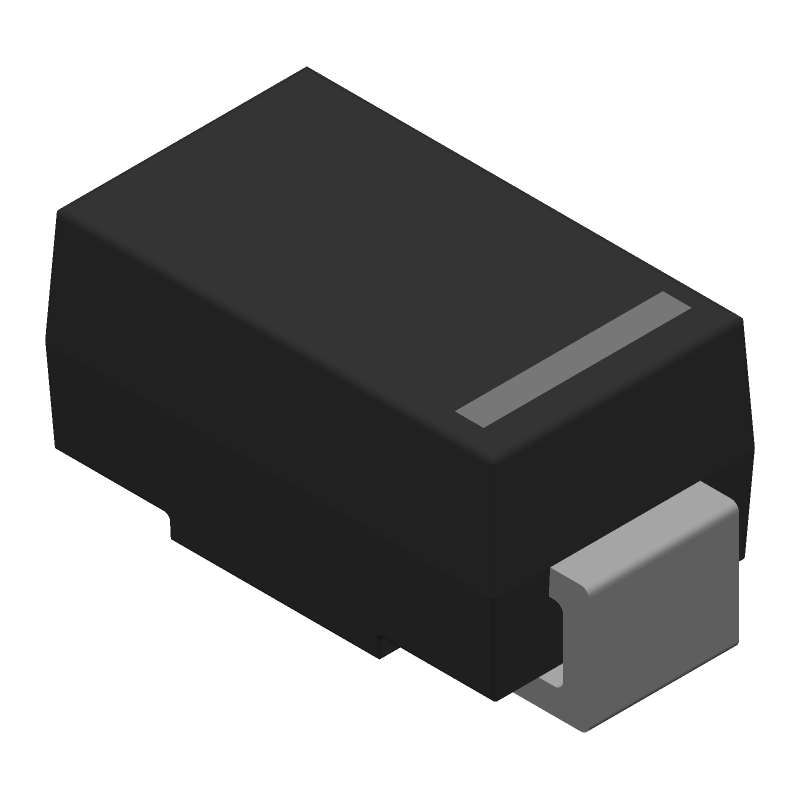

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMAJ6.5A-TR Part Data Attributes

Parametric Data
SMAJ6.5A-TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
SMAJ6.5A-TR STMicroelectronics 400 W TVS in SMA
Rohs Code Yes
Part Life Cycle Code Active
parentfamilyid 4191611
Ihs Manufacturer STMICROELECTRONICS
Part Package Code DO-214AC
Package Description SMA, 2 PIN
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Schedule B Code 8541.10.00.50
Factory Lead Time 13 Weeks
Samacsys Description 400 W, 6.5 V TVS in SMA
Samacsys Manufacturer STMicroelectronics
Samacsys Modified On 2023-03-07 16:10:32
Total Weight 68
Category CO2 Kg 8.54
CO2 580.7199999999999
Compliance Temperature Grade Military: -55C to +150C
EU RoHS Version RoHS 2 (2015/863/EU)
EU RoHS Exemptions 7(a)
Candidate List Date 2025-01-21
SVHC Over MCV 7439-92-1
CAS Accounted for Wt 100
CA Prop 65 Presence YES
CA Prop 65 CAS Numbers 7439-92-1, 1333-86-4, 7440-02-0
EFUP 50
Conflict Mineral Status DRC Conflict Free Undeterminable
Conflict Mineral Status Source CMRT V6.31
Additional Feature MOS COMPATIBLE
Breakdown Voltage-Min 7.2 V
Clamping Voltage-Max 14.5 V
Configuration SINGLE
Diode Capacitance-Min 3100 pF
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AC
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 400 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 3.3 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 6.5 V
Reverse Current-Max 500 µA
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30

SMAJ6.5A-TR Related Parts

SMAJ6.5A-TR Frequently Asked Questions (FAQ)

  • The recommended footprint for SMAJ6.5A-TR is a standard SOD128 package with a 1.5mm x 0.8mm body size and a 0.5mm pitch.

  • To ensure reliability in high-temperature applications, ensure that the device is operated within the recommended temperature range (-40°C to 150°C), and follow proper PCB design and assembly guidelines to minimize thermal stress.

  • Yes, SMAJ6.5A-TR can be used in high-frequency circuits up to 1 GHz. However, ensure that the device is properly decoupled and that the PCB layout is optimized for high-frequency operation.

  • Select the correct SMAJ6.5A-TR variant based on the required standoff voltage, clamping voltage, and power dissipation requirements of your application. Refer to the datasheet for specific details on each variant.

  • The recommended soldering profile for SMAJ6.5A-TR is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
