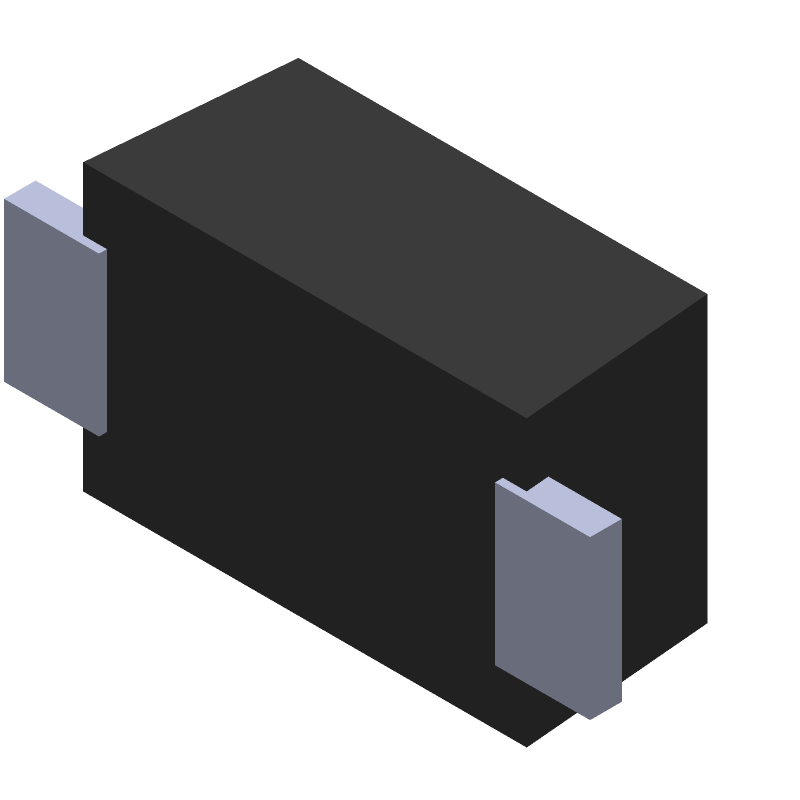

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SL1A by Diotec Semiconductor AG
Results Overview of SL1A by Diotec Semiconductor AG
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Renewable Energy
SL1A Information
SL1A by Diotec Semiconductor AG is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SL1A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2796-SL1ATR-ND
|
DigiKey | DIODE STANDARD 50V 1A SOD123F Min Qty: 3000 Lead time: 2 Weeks Container: Tape & Reel (TR) MARKETPLACE PRODUCT |
30000 In Stock |
|
$0.0174 | Buy Now |
|
DISTI #
4878-SL1A-ND
|
DigiKey | DIODE STANDARD 50V 1A SOD123FL Min Qty: 3000 Lead time: 8 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.0317 | Buy Now |
|
DISTI #
637-SL1A
|
Mouser Electronics | Rectifiers Diode, SOD-123FL, 50V, 1A RoHS: Compliant | 9943 |
|
$0.0130 / $0.1000 | Buy Now |
|
DISTI #
E02:0323_06676339
|
Arrow Electronics | Diode Switching 50V 1A 2-Pin SOD-123FL T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks Date Code: 2446 | Europe - 18000 |
|
$0.0132 / $0.0176 | Buy Now |
|
|
Onlinecomponents.com | Diode - SOD-123FL - 50V - 1A RoHS: Compliant | 0 |
|
$0.0072 / $0.0112 | Buy Now |
|
DISTI #
87887253
|
Verical | Diode Switching 50V 1A 2-Pin SOD-123FL T/R Min Qty: 3000 Package Multiple: 3000 Date Code: 2446 | Americas - 18000 |
|
$0.0133 / $0.0177 | Buy Now |
|
DISTI #
87346803
|
Verical | Diode Switching 50V 1A 2-Pin SOD-123FL T/R Min Qty: 5556 Package Multiple: 1 | Americas - 10574 |
|
$0.0126 | Buy Now |
|
DISTI #
SL1A-DIO
|
TME | Diode: rectifying, SMD, 50V, 1A, 1us, SOD123F, Ufmax: 1.1V, Ifsm: 27A Min Qty: 25 | 9050 |
|
$0.0082 / $0.0313 | Buy Now |
|
DISTI #
SL1A-DIO
|
Maritex | Rectifying Diode, 50V, 5A, -40+125 deg.C, SMD, SOD123F Min Qty: 1 Package Multiple: 1 | 1690 |
|
$0.0080 / $0.0290 | Buy Now |
Part Details for SL1A
SL1A CAD Models
SL1A Part Data Attributes
|
|
SL1A
Diotec Semiconductor AG
Buy Now
Datasheet
|
Compare Parts:
SL1A
Diotec Semiconductor AG
Rectifier Diode, Blank, 1 Element, 1A, 50V V(RRM), Silicon, GREEN, POWER, PLASTIC PACKAGE-2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIOTEC SEMICONDUCTOR AG | |
| Package Description | GREEN, POWER, PLASTIC PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Diotec | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Rep Pk Reverse Voltage-Max | 50 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Recovery Time-Max | 1.5 µs | |
| Reverse Test Voltage | 50 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
