SIL12-1A72-71L Information
SIL12-1A72-71L by Standex-Meder Electronics is a Reed Relay.
Reed Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for SIL12-1A72-71L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97K9763
|
Newark | Reed Relay, Sil Series, 12 Vdc, 1 Kohm, 1 A, 200 V, Spst-No Rohs Compliant: Yes |Standexmeder SIL12-1A72-71L RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.2900 / $3.4800 | Buy Now |
|
DISTI #
374-1114-ND
|
DigiKey | RELAY REED SPST 0.5A 12V Min Qty: 1 Lead time: 11 Weeks Container: Tube |
184 In Stock |
|
$2.3812 / $3.3700 | Buy Now |
|
DISTI #
876-SIL12-1A72-71L
|
Mouser Electronics | Reed Relays 1 Form A 12 V SIL RoHS: Compliant | 342 |
|
$2.0100 / $3.3700 | Buy Now |
|
DISTI #
STXSIL12-1A72-71L
|
Heilind Electronics | REED RELAY, 1 FORM A, SPST-NO, 12V SIL (SINGLE IN-LINE) | Americas - 0 in Stock |
|
$2.1803 / $2.3834 | Buy Now |
|
|
Onlinecomponents.com | Reed Relay, 1 Form A, SPST-NO, 12V SIL (Single In-Line) RoHS: Compliant |
200 In Stock |
|
$1.5900 / $2.1500 | Buy Now |
|
DISTI #
67559460
|
Verical | Reed Relay 12VDC 1KOhm 1A SPST-NO(19.8x5.08x7.8)mm THT Dry RoHS: Compliant Min Qty: 6 Package Multiple: 1 Date Code: 2313 | Americas - 2898 |
|
$0.9300 / $1.0827 | Buy Now |
|
DISTI #
61238113
|
Verical | Reed Relay 12VDC 1KOhm 1A SPST-NO(19.8x5.08x7.8)mm THT Dry RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2203 | Americas - 200 |
|
$2.2490 / $2.7950 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 1379 |
|
$2.4177 / $5.8968 | Buy Now |
|
|
Bristol Electronics | Min Qty: 2 | 15 |
|
$2.1840 / $3.3600 | Buy Now |
|
|
Quest Components | 1103 |
|
$2.7641 / $7.8975 | Buy Now |
Part Details for SIL12-1A72-71L

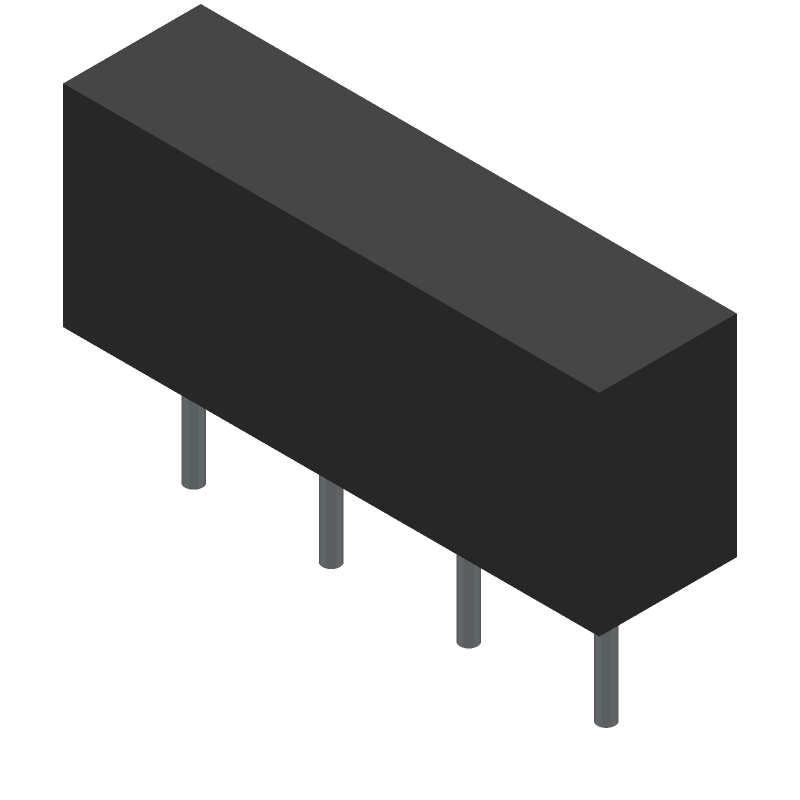

SIL12-1A72-71L CAD Models
