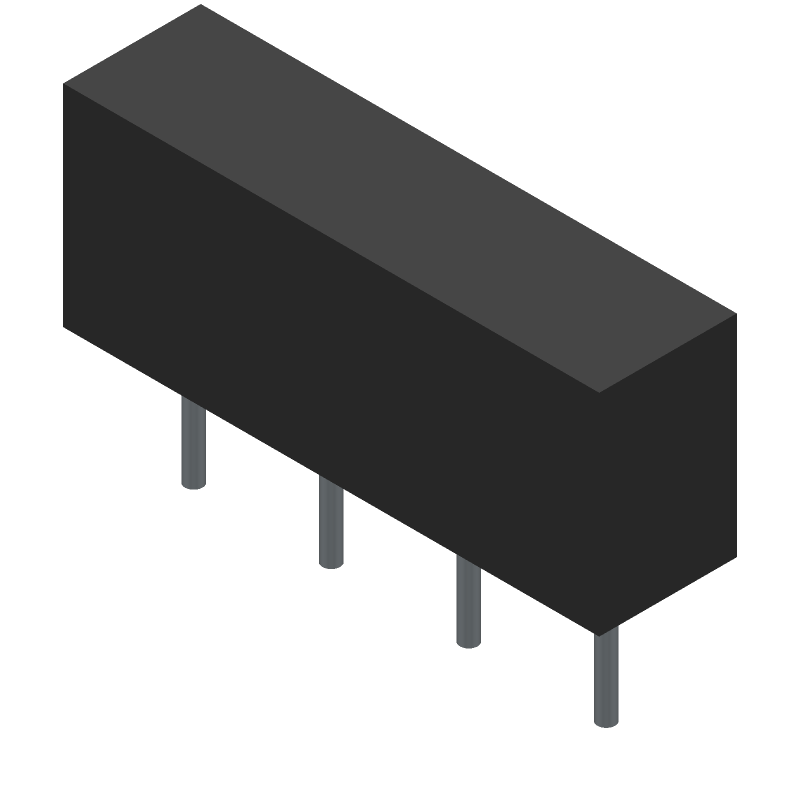

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIL12-1A72-71D by Standex-Meder Electronics
Results Overview of SIL12-1A72-71D by Standex-Meder Electronics
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
SIL12-1A72-71D Information
SIL12-1A72-71D by Standex-Meder Electronics is a Reed Relay.
Reed Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for SIL12-1A72-71D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97K9762
|
Newark | Relay, Reed, Spst-No, 200V, 1A, Tht, Contact Configuration:Spst-No, Coil Voltage:12Vdc, Product Range:Sil Series, Relay Mounting:Through Hole, Coil Resistance:1Kohm, Switching Current Max:1A, Switching Voltage Max:200V Rohs Compliant: Yes |Standexmeder SIL12-1A72-71D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 247 |
|
$2.2600 / $4.0400 | Buy Now |
|
DISTI #
374-1249-ND
|
DigiKey | RELAY REED SPST 0.5A 12V Min Qty: 1 Lead time: 11 Weeks Container: Tube |
900 In Stock |
|
$2.1702 / $3.9800 | Buy Now |
|
DISTI #
876-SIL12-1A72-71D
|
Mouser Electronics | Reed Relays 1 Form A, SPST-NO 12V SIL w/Diode RoHS: Compliant | 0 |
|
$2.0100 / $3.7100 | Order Now |
|
DISTI #
STXSIL12-1A72-71D
|
Heilind Electronics | 3312100171 RELAY | Americas - 0 in Stock |
|
Buy Now | |
|
|
Onlinecomponents.com | Reed Relay, 1 Form A, SPST-NO, 12V SIL (Single In-Line) w/Diode RoHS: Compliant |
28 In Stock |
|
$2.2400 / $3.4900 | Buy Now |
|
DISTI #
89519559
|
Verical | Reed Relay 12VDC 1KOhm 0.5A SPST-NO(19.8x5.08x7.8)mm THT Dry RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2519 | Americas - 789 |
|
$2.2060 / $3.2336 | Buy Now |
|
DISTI #
66719152
|
Verical | Reed Relay 12VDC 1KOhm 0.5A SPST-NO(19.8x5.08x7.8)mm THT Dry RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 2246 | Americas - 20 |
|
$3.2370 / $4.5370 | Buy Now |
|
DISTI #
SIL12-1A72-71D
|
TTI | Reed Relays 1 Form A, SPST-NO 12V SIL w/Diode RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 100 Container: Tube | Americas - 0 |
|
$1.6800 / $1.9500 | Buy Now |
|
DISTI #
SIL12-1A72-71D
|
TTI | Reed Relays 1 Form A, SPST-NO 12V SIL w/Diode RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 100 Container: Tube | Americas - 0 |
|
$1.6800 / $1.9500 | Buy Now |
|
DISTI #
SIL12-1A72-71D
|
TME | Relay: reed switch, SPST-NO, Ucoil: 12VDC, 1.25A, max.200VDC, 145mW Min Qty: 1 | 342 |
|
$1.5900 / $2.9400 | Buy Now |
Part Details for SIL12-1A72-71D
SIL12-1A72-71D CAD Models
SIL12-1A72-71D Part Data Attributes
|
|
SIL12-1A72-71D
Standex-Meder Electronics
Buy Now
Datasheet
|
Compare Parts:
SIL12-1A72-71D
Standex-Meder Electronics
Dry Reed Relay, SPST, Momentary, 0.012A (Coil), 12VDC (Coil), 145mW (Coil), 1A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STANDEX-MEDER ELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.49.00.50 | |
| Samacsys Manufacturer | STANDEXMEDER | |
| Body Breadth | 5.08 mm | |
| Body Height | 7.8 mm | |
| Body Length or Diameter | 19.8 mm | |
| Coil Current(DC)-Max | 0.012 A | |
| Coil Operate Voltage(DC) | 8.4 V | |
| Coil Power | 145 mW | |
| Coil Release Voltage(DC) | 1.8 V | |
| Coil Resistance | 1000 Ω | |
| Coil Voltage-Nom | 12 V | |
| Coil/Input Supply Type | DC | |
| Contact (AC) Max Rating R Load | 0.5A@200VAC | |
| Contact Current(AC)-Max | 0.5 A | |
| Contact Current(DC)-Max | 0.5 A | |
| Contact (DC) Max Rating R Load | 0.5A@200VDC | |
| Contact Resistance | 100 mΩ | |
| Contact Voltage(AC)-Max | 200 V | |
| Contact Voltage(DC)-Max | 200 V | |
| Contact/Output Supply Type | AC/DC | |
| Input Switching Control Type | Random | |
| Insulation Resistance | 10000000000 Ω | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Number of Terminals | 4 | |
| Operate Time | 0.5 ms | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Physical Dimension | 19.8mm x 5.08mm x 7.8mm | |
| Reference Standard | CUL; UL | |
| Relay Action | MBB | |
| Relay Form | 1 FORM A | |
| Relay Function | SPST | |
| Relay Type | DRY REED RELAY | |
| Release Time | 0.1 ms | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Length | 0.003500127000254001 inch | |
| Termination Type | SOLDER |
SIL12-1A72-71D Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the SIL12-1A72-71D is between 250°C to 260°C for a maximum of 5 seconds.
-
Yes, the SIL12-1A72-71D is designed to withstand high-vibration environments and can operate reliably in applications with vibrations up to 10G.
-
The maximum operating frequency of the SIL12-1A72-71D is 100 kHz, but it can be customized for higher frequencies with proper design and testing.
-
Yes, the SIL12-1A72-71D is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The typical power rating of the SIL12-1A72-71D is 1 Watt, but it can be customized for higher power ratings with proper design and testing.
