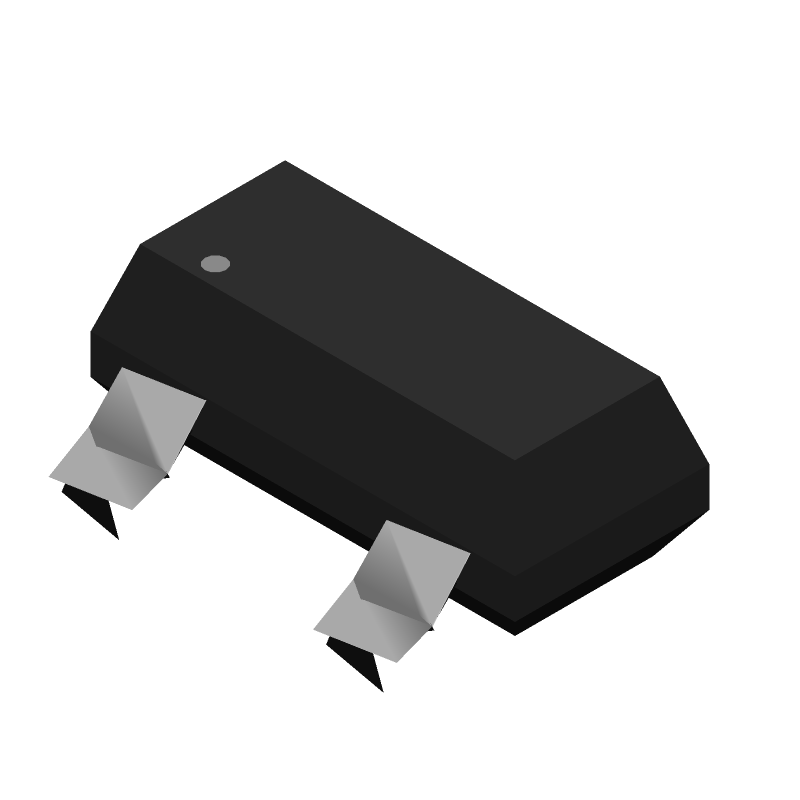

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SI2305CDS-T1-GE3 by Vishay Intertechnologies
Results Overview of SI2305CDS-T1-GE3 by Vishay Intertechnologies
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
SI2305CDS-T1-GE3 Information
SI2305CDS-T1-GE3 by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for SI2305CDS-T1-GE3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96AJ0106
|
Newark | Mosfet, P-Ch, 8V, 5.8A, Sot-23 Rohs Compliant: Yes |Vishay SI2305CDS-T1-GE3 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 9000 |
|
$0.1560 / $0.1730 | Buy Now |
|
DISTI #
55R1909
|
Newark | Mosfet, P Channel, -8V, -5.8A, Sot-23-3, Channel Type:P Channel, Drain Source Voltage Vds:8V, Continuous Drain Current Id:5.8A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:4.5V, Gate Source Threshold Voltage Max:1V, Msl:-Rohs Compliant: Yes |Vishay SI2305CDS-T1-GE3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 25 |
|
$0.0420 | Buy Now |
|
DISTI #
SI2305CDS-T1-GE3
|
Avnet Americas | Trans MOSFET P-CH 8V 4.4A 3-Pin SOT-23 T/R - Tape and Reel (Alt: SI2305CDS-T1-GE3) RoHS: Compliant Min Qty: 18000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Reel | 3000 |
|
$0.0882 / $0.0938 | Buy Now |
|
DISTI #
55R1909
|
Avnet Americas | Trans MOSFET P-CH 8V 4.4A 3-Pin SOT-23 T/R - Product that comes on tape, but is not reeled (Alt: 55R1909) RoHS: Compliant Min Qty: 5 Package Multiple: 5 Lead time: 25 Weeks, 4 Days Container: Ammo Pack | 25 Partner Stock |
|
$0.2130 / $0.5300 | Buy Now |
|
DISTI #
781-SI2305CDS-GE3
|
Mouser Electronics | MOSFETs -8V Vds 8V Vgs SOT-23 RoHS: Compliant | 32735 |
|
$0.0970 / $0.4800 | Buy Now |
|
DISTI #
V36:1790_07433097
|
Arrow Electronics | Trans MOSFET P-CH 8V 5.8A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks Date Code: 2306 | Americas - 6000 |
|
$0.0916 / $0.1125 | Buy Now |
|
|
Future Electronics | Single P-Channel 8 V 0.035 Ohm Surface Mount TrenchFET Power Mosfet - TO-236 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks Container: Reel | 39000Reel |
|
$0.0891 / $0.0957 | Buy Now |
|
DISTI #
88113462
|
Verical | Trans MOSFET P-CH 8V 5.8A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2503 | Americas - 27000 |
|
$0.4704 | Buy Now |
|
DISTI #
77899105
|
Verical | Trans MOSFET P-CH 8V 5.8A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2306 | Americas - 6000 |
|
$0.0916 / $0.1125 | Buy Now |
|
|
Bristol Electronics | 3804 |
|
RFQ |
Part Details for SI2305CDS-T1-GE3
SI2305CDS-T1-GE3 CAD Models
SI2305CDS-T1-GE3 Part Data Attributes
|
|
SI2305CDS-T1-GE3
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SI2305CDS-T1-GE3
Vishay Intertechnologies
Small Signal Field-Effect Transistor, 5.8A I(D), 8V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-236AB, TO-236, SOT-23, 3 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | TO-236, SOT-23, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 8 V | |
| Drain Current-Max (ID) | 5.8 A | |
| Drain-source On Resistance-Max | 0.035 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 300 pF | |
| JEDEC-95 Code | TO-236 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 1.7 W | |
| Pulsed Drain Current-Max (IDM) | 20 A | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61249-2-21 | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Turn-off Time-Max (toff) | 75 ns | |
| Turn-on Time-Max (ton) | 60 ns |
