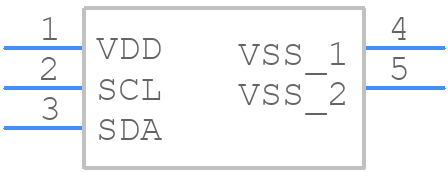

Part Symbol
-
Footprint
-

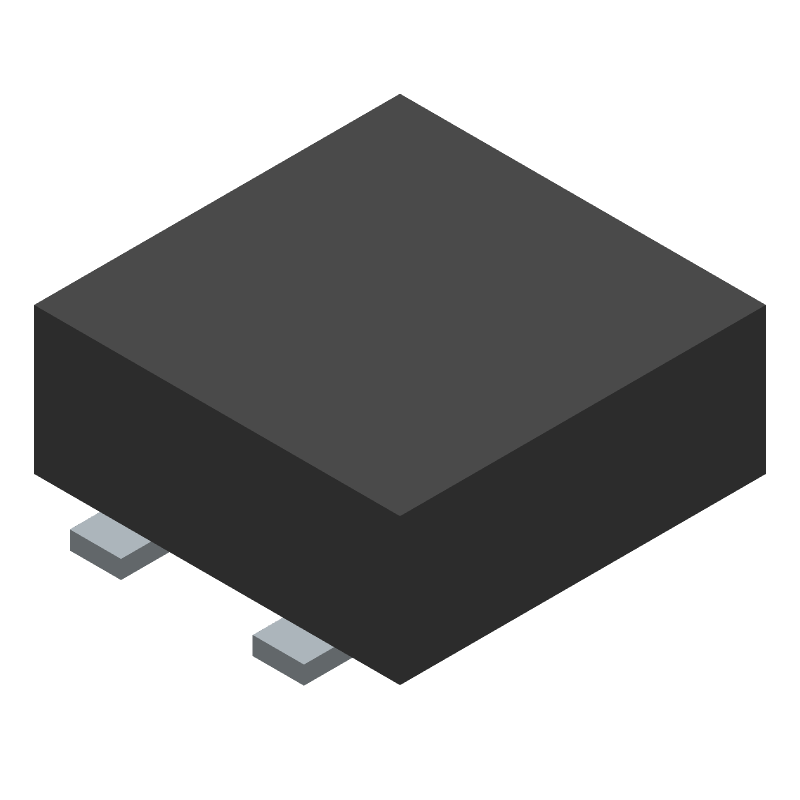

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SHTC3-TR-10KS by Sensirion
Results Overview of SHTC3-TR-10KS by Sensirion
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SHTC3-TR-10KS Information
SHTC3-TR-10KS by Sensirion is an Other Sensor/Transducer.
Other Sensors/Transducers are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for SHTC3-TR-10KS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
25AM6975
|
Newark | Humidity/Temp Sensor, -40To125Deg C Rohs Compliant: Yes |Sensirion SHTC3-TR-10KS RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 8566 |
|
$1.4200 / $2.1500 | Buy Now |
|
DISTI #
21AH4658
|
Newark | Shtc3-Tr-10Ks/ Tape & Reel Rohs Compliant: Yes |Sensirion SHTC3-TR-10KS RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.8000 | Buy Now |
|
|
Future Electronics | SHTC3 Series 0 to 100% RH 3.6 V Humidity and Temperature Sensor IC - DFN-4 RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks Container: Reel | 40000Reel |
|
$1.2000 | Buy Now |
|
DISTI #
89489305
|
Verical | Humidity/Temperature Sensor Digital Serial (I2C) 4-Pin DFN EP T/R Min Qty: 10000 Package Multiple: 10000 Date Code: 2519 | Americas - 30000 |
|
$1.4803 | Buy Now |
|
|
Future Electronics | SHTC3 Series 0 to 100% RH 3.6 V Humidity and Temperature Sensor IC - DFN-4 Min Qty: 10000 Package Multiple: 10000 |
50000 null |
|
$1.2000 | Buy Now |
Part Details for SHTC3-TR-10KS
SHTC3-TR-10KS CAD Models
SHTC3-TR-10KS Part Data Attributes
|
|
SHTC3-TR-10KS
Sensirion
Buy Now
Datasheet
|
Compare Parts:
SHTC3-TR-10KS
Sensirion
Humidity And Temperature Sensor, Digital, CMOS, 4 Pin, Plastic/epoxy, DFN-4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SENSIRION AG | |
| Package Description | DFN-4 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Sensirion | |
| Accuracy-Max (%) | 2% | |
| Body Breadth | 2 mm | |
| Body Height | 0.75 mm | |
| Body Length or Diameter | 2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | DIGITAL | |
| Output Type | DIGITAL VOLTAGE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SOLCC4,.07,40 | |
| Package Shape/Style | SQUARE | |
| Sensors/Transducers Type | HUMIDITY AND TEMPERATURE SENSOR | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.62 V | |
| Surface Mount | YES | |
| Technology | CMOS |
SHTC3-TR-10KS Frequently Asked Questions (FAQ)
-
Sensirion recommends a reflow soldering profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a cooling rate of 4°C/s or slower.
-
Store the SHTC3-TR-10KS in a dry, nitrogen-filled package or a vacuum-sealed bag with a desiccant packet to maintain a relative humidity below 20%. Avoid exposing the sensor to moisture, high temperatures, or physical stress during shipping and storage.
-
Sensirion provides a recommended PCB layout and land pattern in the datasheet, which includes a minimum pad size of 1.3 mm x 1.3 mm, a solder mask opening of 0.5 mm, and a non-solder mask defined (NSMD) pad shape.
-
The SHTC3-TR-10KS is calibrated during manufacturing, but you can perform a one-point calibration for temperature and humidity using the sensor's built-in heater and a reference thermometer and hygrometer.
-
Power up the SHTC3-TR-10KS by applying VCC first, followed by a delay of at least 10 ms, and then applying the clock signal. Power down the sensor by removing the clock signal first, followed by a delay of at least 10 ms, and then removing VCC.
