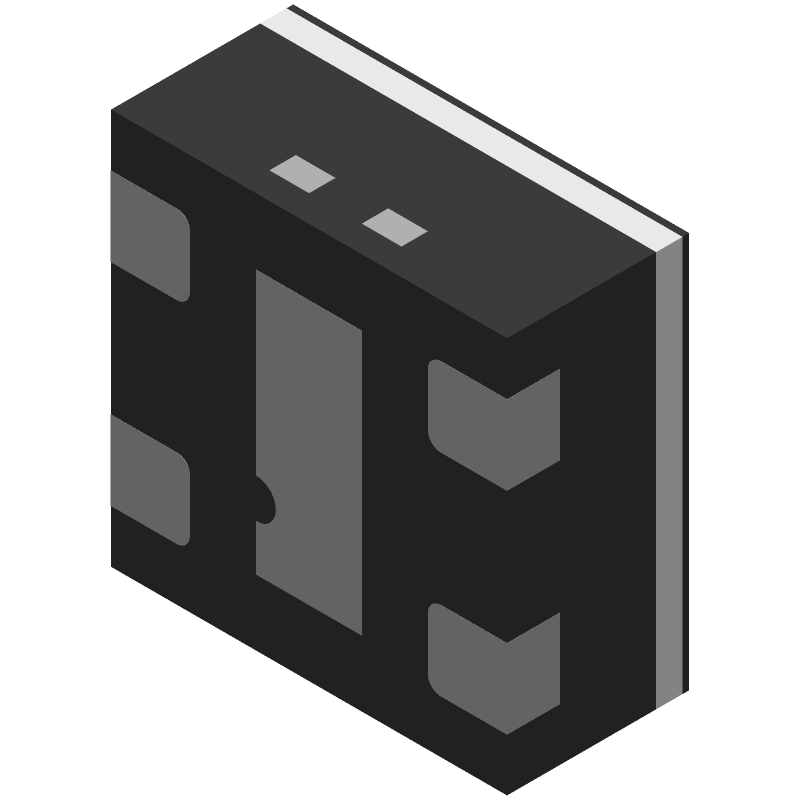

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SHT40-BD1F-R2 by Sensirion
Results Overview of SHT40-BD1F-R2 by Sensirion
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SHT40-BD1F-R2 Information
SHT40-BD1F-R2 by Sensirion is an Other Sensor/Transducer.
Other Sensors/Transducers are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for SHT40-BD1F-R2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
63AK2666
|
Newark | Humidity/Temp Sensor, -40To125Deg C, Humidity Range:0% To 100% Relative Humidity, Humidity Accuracy:± 1.8% Rh, Temperature Accuracy:± 0.2°C, Rh Response Time:4S, Temperature Response Time:2S, Sensor Interface Type:I2C Rohs Compliant: Yes |Sensirion SHT40-BD1F-R2 RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$3.0400 | Buy Now |
|
DISTI #
403-SHT40-BD1F-R2
|
Mouser Electronics | Board Mount Humidity Sensors Digital Humidity and Temperature Sensor incl Filter Membrane RoHS: Compliant | 3836 |
|
$1.3200 / $2.1700 | Buy Now |
|
DISTI #
SHT40-BD1F-R2
|
TME | Sensor: temperature and humidity, 0÷100%RH, -40÷125°C, DFN, SHT Min Qty: 1 | 0 |
|
$1.2000 / $1.7900 | RFQ |
Part Details for SHT40-BD1F-R2
SHT40-BD1F-R2 CAD Models
SHT40-BD1F-R2 Part Data Attributes
|
|
SHT40-BD1F-R2
Sensirion
Buy Now
Datasheet
|
Compare Parts:
SHT40-BD1F-R2
Sensirion
Humidity And Temperature Sensor, 4 Pin,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SENSIRION AG | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Sensirion | |
| Body Breadth | 1.5 mm | |
| Body Height | 0.5 mm | |
| Body Length or Diameter | 1.5 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Type | DIGITAL VOLTAGE | |
| Package Equivalence Code | SOLCC4,.06,32 | |
| Package Shape/Style | SQUARE | |
| Sensors/Transducers Type | HUMIDITY AND TEMPERATURE SENSOR | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.08 V | |
| Surface Mount | YES |
SHT40-BD1F-R2 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the SHT40-BD1F-R2 is 1.8 V to 3.6 V.
-
The SHT40-BD1F-R2 outputs 16-bit and 32-bit raw data for temperature and humidity, respectively. You need to apply the provided calibration data and formulas to convert the raw data into accurate temperature and humidity readings.
-
The typical response time of the SHT40-BD1F-R2 is around 1 second for temperature and 5 seconds for humidity.
-
Yes, the SHT40-BD1F-R2 is designed to operate in high-humidity environments up to 100% RH. However, it's recommended to follow proper installation and sealing guidelines to prevent water ingress.
-
To ensure accuracy, it's essential to follow the recommended operating temperature range (-40°C to 125°C) and to perform temperature compensation using the provided calibration data and formulas.
