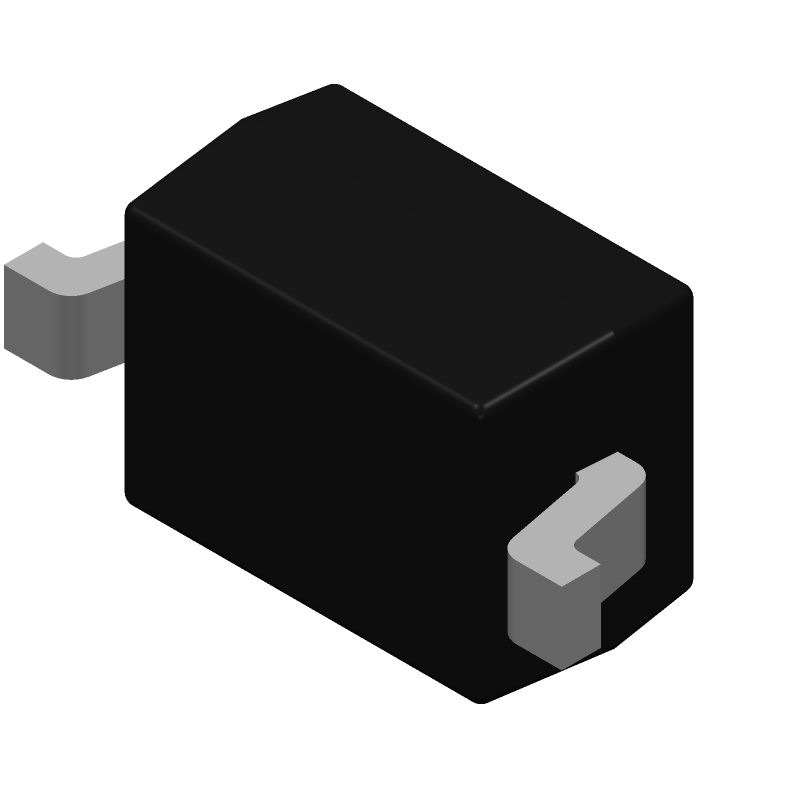

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SD101AWS-TP by Micro Commercial Components
Results Overview of SD101AWS-TP by Micro Commercial Components
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Space Technology
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Electronic Manufacturing
Communication and Networking
Robotics and Drones
SD101AWS-TP Information
SD101AWS-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SD101AWS-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
22AM0341
|
Newark | Schottky Diode, 60V, 0.015A, Sod-323 Rohs Compliant: Yes |Micro Commercial Components SD101AWS-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2785 |
|
$0.0470 / $0.1080 | Buy Now |
|
DISTI #
SD101AWSTPMSCT-ND
|
DigiKey | DIODE SCHOTTKY 60V 15MA SOD323 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
30733 In Stock |
|
$0.0185 / $0.1100 | Buy Now |
|
DISTI #
833-SD101AWS-TP
|
Mouser Electronics | Schottky Diodes & Rectifiers 60V RoHS: Compliant | 10057 |
|
$0.0300 / $0.1100 | Buy Now |
|
DISTI #
E54:1762_08673015
|
Arrow Electronics | Diode Small Signal Schottky 60V 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2513 | Europe - 3000 |
|
$0.0262 / $0.0293 | Buy Now |
|
DISTI #
V72:2272_06842062
|
Arrow Electronics | Diode Small Signal Schottky 60V 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks Date Code: 2151 Container: Cut Strips | Americas - 178 |
|
$0.0070 / $0.0205 | Buy Now |
|
DISTI #
61138820
|
Verical | Diode Small Signal Schottky 60V 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 | Americas - 204000 |
|
$0.0200 | Buy Now |
|
DISTI #
89487397
|
Verical | Diode Small Signal Schottky 60V 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2513 | Americas - 3000 |
|
$0.0379 | Buy Now |
|
|
Bristol Electronics | 17 |
|
RFQ | ||
|
|
Future Electronics | SD101AWS Series 60 V 2 A Surface Mount Small Signal Schottky Diode - SOD-323 Min Qty: 3000 Package Multiple: 3000 |
3000 null |
|
$0.0171 / $0.0186 | Buy Now |
|
DISTI #
SD101AWS-TP
|
TME | Diode: Schottky switching, SOD323, SMD, 60V, 15mA, 1ns, reel,tape Min Qty: 20 | 8080 |
|
$0.0351 / $0.0861 | Buy Now |
Part Details for SD101AWS-TP
SD101AWS-TP CAD Models
SD101AWS-TP Part Data Attributes
|
|
SD101AWS-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
SD101AWS-TP
Micro Commercial Components
Rectifier Diode, Schottky, 1 Element, 60V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | ROHS COMPLIANT, PLASTIC PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | MCC | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.41 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 2 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.015 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.4 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 60 V | |
| Reverse Current-Max | 0.2 µA | |
| Reverse Recovery Time-Max | 0.001 µs | |
| Reverse Test Voltage | 50 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for SD101AWS-TP
This table gives cross-reference parts and alternative options found for SD101AWS-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SD101AWS-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SD101AWS-7-F | Diodes Incorporated | $0.1073 | Rectifier Diode, Schottky, 1 Element, 0.015A, 60V V(RRM), Silicon, GREEN, ULTRA SMALL, PLASTIC PACKAGE-2 | SD101AWS-TP vs SD101AWS-7-F |
| SD101AWS | Lite-On Semiconductor Corporation | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.015A, 60V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2 | SD101AWS-TP vs SD101AWS |
| SD101AWS | General Instrument Corp | Check for Price | Rectifier Diode, Schottky, 1 Element, 60V V(RRM), Silicon, | SD101AWS-TP vs SD101AWS |
| SD101AWS | Diodes Incorporated | Check for Price | Rectifier Diode, Schottky, 1 Element, 60V V(RRM), Silicon, PLASTIC, SOD-323, 2 PIN | SD101AWS-TP vs SD101AWS |
| SD101AWS_R1_00001 | PanJit Semiconductor | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.35A, 60V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2 | SD101AWS-TP vs SD101AWS_R1_00001 |
| SD101AWS-TP-HF | Micro Commercial Components | Check for Price | Rectifier Diode, | SD101AWS-TP vs SD101AWS-TP-HF |
| SD101AWS-T | Micro Commercial Components | Check for Price | Rectifier Diode, | SD101AWS-TP vs SD101AWS-T |
| SD101AWS-E3-08 | Vishay Intertechnologies | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.03A, 60V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-2 | SD101AWS-TP vs SD101AWS-E3-08 |
| SD101AWS-13 | Diodes Incorporated | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.015A, 60V V(RRM), Silicon, PLASTIC, SOD-323, 2 PIN | SD101AWS-TP vs SD101AWS-13 |
