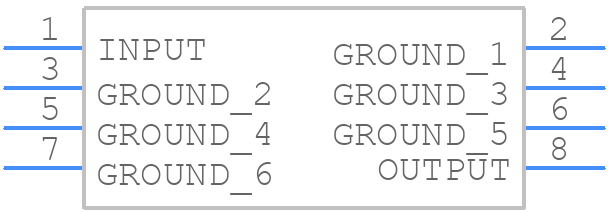

Part Symbol
-

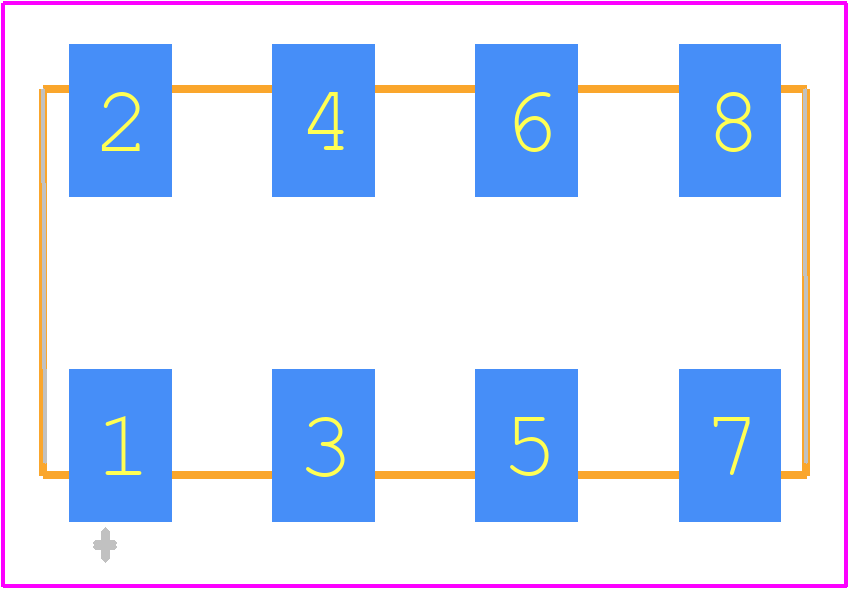

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SCLF-10.7+ by Mini-Circuits
Results Overview of SCLF-10.7+ by Mini-Circuits
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
SCLF-10.7+ Information
SCLF-10.7+ by Mini-Circuits is a General Purpose Passive Filter.
General Purpose Passive Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for SCLF-10.7+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3157-SCLF-10.7+CT-ND
|
DigiKey | RF FILTER LOW PASS 14MHZ 1206 Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
336 In Stock |
|
$15.1801 / $21.1700 | Buy Now |
|
DISTI #
139-SCLF-10.7
|
Mouser Electronics | Signal Conditioning LOW PASS FLTR / SM / RoHS RoHS: Compliant | 559 |
|
$18.1300 / $21.1700 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 9 |
|
$9.0000 / $12.0000 | Buy Now |
|
|
Quest Components | 7 |
|
$12.0000 / $16.0000 | Buy Now |
Part Details for SCLF-10.7+
SCLF-10.7+ CAD Models
SCLF-10.7+ Part Data Attributes
|
|
SCLF-10.7+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
SCLF-10.7+
Mini-Circuits
Low Pass Filter, 14MHz, ROHS COMPLIANT, CASE YY161, 8 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MINI-CIRCUITS | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Mini-Circuits | |
| Attenuation Frequency-Max | 24 MHz | |
| Attenuation Frequency-Min | 19 MHz | |
| Attenuation@Freq-Max | 40 dB | |
| Attenuation@Freq-Min | 20 dB | |
| Average Input Power | 0.5 W | |
| Center or Cutoff Frequency (fo/fc) | 14 MHz | |
| Filter Type | LOW PASS FILTER | |
| Height | 7.11 mm | |
| Input Impedance | 50 OHM | |
| Insertion Loss-Max | 3 dB | |
| JESD-609 Code | e3 | |
| Length | 19.05 mm | |
| Mounting Type | SURFACE MOUNT | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Impedance | 50 OHM Ω | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| VSWR | 1.7 | |
| Width | 9.65 mm |
