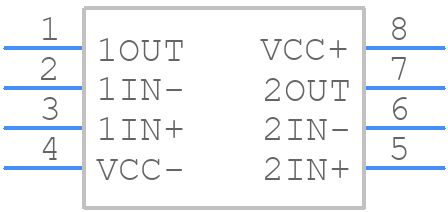

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SA5532AP by Texas Instruments
Results Overview of SA5532AP by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
SA5532AP Information
SA5532AP by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for SA5532AP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-SA5532AP-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8DIP Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
13201 In Stock |
|
$0.3400 | Buy Now |
|
DISTI #
296-16995-5-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8DIP Min Qty: 1 Lead time: 12 Weeks Container: Tube |
33 In Stock |
|
$0.4559 / $0.9800 | Buy Now |
|
DISTI #
595-SA5532AP
|
Mouser Electronics | Operational Amplifiers - Op Amps Dual Low-Noise Op Am p RoHS: Compliant | 80 |
|
$0.2890 / $0.9800 | Buy Now |
|
DISTI #
86039411
|
Verical | Op Amp Dual Low Noise Amplifier ±15V 8-Pin PDIP Tube RoHS: Compliant Min Qty: 1101 Package Multiple: 1 Date Code: 0501 | Americas - 12850 |
|
$0.2546 / $0.3409 | Buy Now |
|
|
Quest Components | 664 |
|
$0.7040 / $1.7600 | Buy Now | |
|
|
Rochester Electronics | SA5532A Dual Low-Noise Operational Amplifier RoHS: Compliant Status: Active Min Qty: 1 | 13201 |
|
$0.2037 / $0.3285 | Buy Now |
Part Details for SA5532AP
SA5532AP CAD Models
SA5532AP Part Data Attributes
|
|
SA5532AP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SA5532AP
Texas Instruments
Dual, 30-V, 10-MHz, low noise (6-nV/√Hz max) audio op amp with -40°C to 85°C operation 8-PDIP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | ROHS COMPLIANT, PLASTIC, DIP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 1 µA | |
| Bias Current-Max (IIB) @25C | 0.8 µA | |
| Common-mode Reject Ratio-Min | 70 dB | |
| Common-mode Reject Ratio-Nom | 100 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.15 µA | |
| Input Offset Voltage-Max | 4000 µV | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e4 | |
| Length | 9.81 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Neg Supply Voltage Limit-Max | -22 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Slew Rate-Nom | 9 V/us | |
| Supply Current-Max | 16 mA | |
| Supply Voltage Limit-Max | 22 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 10000 | |
| Voltage Gain-Min | 10000 | |
| Wideband | NO | |
| Width | 7.62 mm |
Alternate Parts for SA5532AP
This table gives cross-reference parts and alternative options found for SA5532AP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SA5532AP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| NE5532DG | onsemi | $0.8494 | Operational Amplifier, Low Noise, Dual 0 to 70°C, SO-16 WB, 47-TUBE | SA5532AP vs NE5532DG |
| AD713JRZ-16-REEL7 | Analog Devices Inc | $11.0245 | Precision, High Speed, BiFET Quad Op Amp | SA5532AP vs AD713JRZ-16-REEL7 |
| V62/09614-01XE | Texas Instruments | Check for Price | Enhanced Product Quad Precision Operational Amplifier 16-SOIC -55 to 125 | SA5532AP vs V62/09614-01XE |
| OP400GS-REEL | Analog Devices Inc | Check for Price | Low Offset, Low Power Quad Op Amp | SA5532AP vs OP400GS-REEL |
| NE5532D8 | onsemi | Check for Price | Operational Amplifier, Low Noise, Dual, SOIC-8 Narrow Body, 98-TUBE | SA5532AP vs NE5532D8 |
| NE5532PSR | Texas Instruments | Check for Price | Dual, 30-V, 10-MHz, low-noise operational amplifier for audio applications 8-SO 0 to 70 | SA5532AP vs NE5532PSR |
| V62/04755-06YE | Texas Instruments | Check for Price | Enhanced Product Excalibur High-Speed Low-Power Precision Op Amps 16-SOIC -40 to 125 | SA5532AP vs V62/04755-06YE |
| NE5532AD8 | NXP Semiconductors | Check for Price | IC DUAL OP-AMP, 5000 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 3.90 MM, PLASTIC, MS-012, SOT96-1, SOP-8, Operational Amplifier | SA5532AP vs NE5532AD8 |
| MAX4120EEE | Maxim Integrated Products | Check for Price | Operational Amplifier, 4 Func, 8000uV Offset-Max, BIPolar, PDSO16, QSOP-16 | SA5532AP vs MAX4120EEE |
| TLE2024AIDWR | Texas Instruments | Check for Price | QUAD OP-AMP, 950uV OFFSET-MAX, 2.8MHz BAND WIDTH, PDSO16, PLASTIC, SOIC-16 | SA5532AP vs TLE2024AIDWR |
SA5532AP Frequently Asked Questions (FAQ)
-
The recommended power-on sequence is to apply VCC first, followed by VDD, and then the input signal. This ensures proper internal biasing and prevents damage to the device.
-
To minimize noise, use a low-ESR capacitor for decoupling, keep the input and output traces short and symmetrical, and avoid running digital signals near the analog signal paths. Additionally, use a quiet power supply and consider adding a noise filter to the input signal.
-
The SA5532AP can handle input signal amplitudes up to 2.5Vpp (peak-to-peak) without distortion or clipping. Exceeding this limit may result in signal degradation or device damage.
-
Verify that the supply voltage (VCC) is within the recommended range of 4.5V to 16V, and the operating temperature is within the range of -40°C to 85°C. Also, ensure the device is not exposed to excessive moisture or humidity.
-
The internal 10kΩ resistor is a pull-down resistor that helps to prevent the output from floating when the input signal is disconnected or in a high-impedance state.
