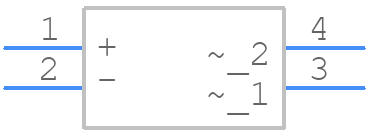

Part Symbol
-
Footprint
-

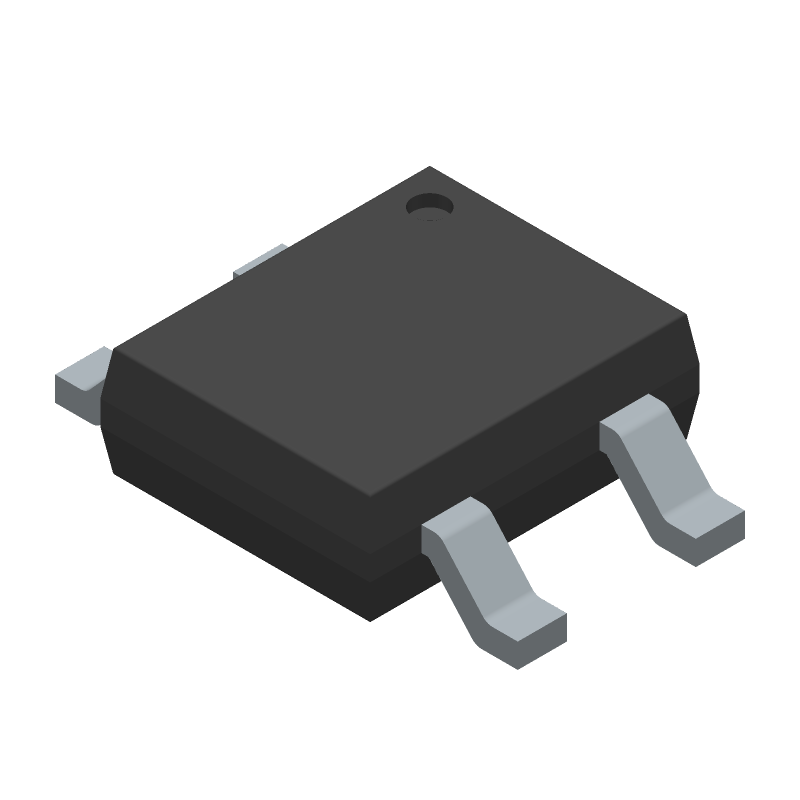

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for S80 by Diotec Semiconductor AG
Results Overview of S80 by Diotec Semiconductor AG
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
S80 Information
S80 by Diotec Semiconductor AG is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for S80
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4878-S80CT-ND
|
DigiKey | BRIDGE RECT 1P 160V 0.8A TO269AA Min Qty: 1 Lead time: 2 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
48 In Stock |
|
$0.0548 / $0.4000 | Buy Now |
|
DISTI #
637-S80
|
Mouser Electronics | Bridge Rectifiers Bridge, single phase, TO-269AA/MiniDIL, 160V, 0.8A, 150C RoHS: Compliant | 7270 |
|
$0.0730 / $0.4400 | Buy Now |
|
|
Onlinecomponents.com | Bridge - single phase - TO-269AA/MiniDIL - 160V - 0.8A RoHS: Compliant | 0 |
|
$0.0479 / $0.0598 | Buy Now |
|
DISTI #
87340219
|
Verical | Diode Rectifier Bridge Single 160V 0.8A 4-Pin Mini-DIP SMD T/R Min Qty: 582 Package Multiple: 1 | Americas - 25423 |
|
$0.0741 / $0.1012 | Buy Now |
|
DISTI #
88079927
|
Verical | Diode Rectifier Bridge Single 160V 0.8A 4-Pin Mini-DIP SMD T/R Min Qty: 938 Package Multiple: 1 | Americas - 4610 |
|
$0.0736 / $0.0784 | Buy Now |
|
DISTI #
S80-DIO
|
TME | Bridge rectifier: single-phase, 160V, If: 0.8A, Ifsm: 40A, SMT Min Qty: 5 | 8510 |
|
$0.0571 / $0.1641 | Buy Now |
|
|
New Advantage Corporation | Bridge Rectifier 0,8A/160V MiniDIL 2,54 RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 3688 |
|
$0.0929 / $0.1007 | Buy Now |
Part Details for S80
S80 CAD Models
S80 Part Data Attributes
|
|
S80
Diotec Semiconductor AG
Buy Now
Datasheet
|
Compare Parts:
S80
Diotec Semiconductor AG
Bridge Rectifier Diode, 1 Phase, 0.8A, 160V V(RRM), Silicon, TO-269AA, MINIDIP-4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIOTEC SEMICONDUCTOR AG | |
| Part Package Code | TO-269AA | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Diotec | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | BRIDGE RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JEDEC-95 Code | TO-269AA | |
| JESD-30 Code | R-PDSO-G4 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 44 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -50 °C | |
| Output Current-Max | 0.8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 160 V | |
| Reverse Current-Max | 10 µA | |
| Reverse Test Voltage | 160 V | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL |
Alternate Parts for S80
This table gives cross-reference parts and alternative options found for S80. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of S80, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| S80 | SEMIKRON | Check for Price | Bridge Rectifier Diode, 1 Phase, 0.8A, 160V V(RRM), Silicon, 4.70 X 3.90 MM, 2.40 MM HEIGHT, PLASTIC PACKAGE-4 | S80 vs S80 |
| MS80 | Diotec Semiconductor AG | Check for Price | Bridge Rectifier Diode, 1 Phase, 0.5A, 160V V(RRM), Silicon, TO-269AA, 3 X 3 MM, 1.50 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4 | S80 vs MS80 |
S80 Frequently Asked Questions (FAQ)
-
A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
-
Use a heat sink with a thermal resistance of ≤ 10 K/W, and ensure good airflow around the device. Also, consider derating the current and voltage ratings at high temperatures.
-
The S80 can withstand voltage spikes up to 1.5 times the maximum rated voltage for a duration of ≤ 100 ms. However, it's recommended to use a TVS diode or a voltage clamp to protect the device from voltage transients.
-
Yes, but ensure that the devices are matched in terms of voltage drop and current rating. Also, use a common heat sink and ensure good thermal coupling between the devices.
-
Use a diode or a rectifier bridge in series with the input to prevent reverse voltage. Alternatively, use a voltage supervisor IC to detect and respond to reverse polarity conditions.
