S7AW Information
S7AW by NKK Switches is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for S7AW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10X9519
|
Newark | Switch, Toggle, Dpdt, 20A, 125Vac, Switch Operation:On-Off-On, Contact Configuration:Dpdt, Illumination:Non Illuminated, Product Range:-, Contact Current Max:20A, Switch Mounting:Panel Mount, Contact Voltage Ac Nom:125V Rohs Compliant: Yes |Nkk Switches S7AW RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$18.8400 / $31.5600 | Buy Now |
|
DISTI #
360-1931-ND
|
DigiKey | SWITCH TOGGLE DPDT 20A 125V Min Qty: 1 Lead time: 22 Weeks Container: Bulk |
13 In Stock |
|
$13.9217 / $20.7600 | Buy Now |
|
DISTI #
633-S7AW
|
Mouser Electronics | Toggle Switches DPDT ON-OFF-ON SOLDER LUG RoHS: Compliant | 7 |
|
$13.9200 / $18.7500 | Buy Now |
|
DISTI #
70192239
|
RS | Switch, Toggle, Sealed, DPDT, ON-OFF-ON, Non-Illum,17.50mm Act,20A,125VAC, Solder Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 2 |
|
$16.0100 / $19.2900 | Buy Now |
|
DISTI #
S7AW
|
TME | Switch: toggle, Pos: 3, DP3T, ON-OFF-ON, 10A/250VAC, 20A/30VDC, S Min Qty: 1 | 0 |
|
$15.4400 / $16.5500 | RFQ |
Part Details for S7AW
S7AW CAD Models
S7AW Part Data Attributes
|
|
S7AW
NKK Switches
Buy Now
Datasheet
|
Compare Parts:
S7AW
NKK Switches

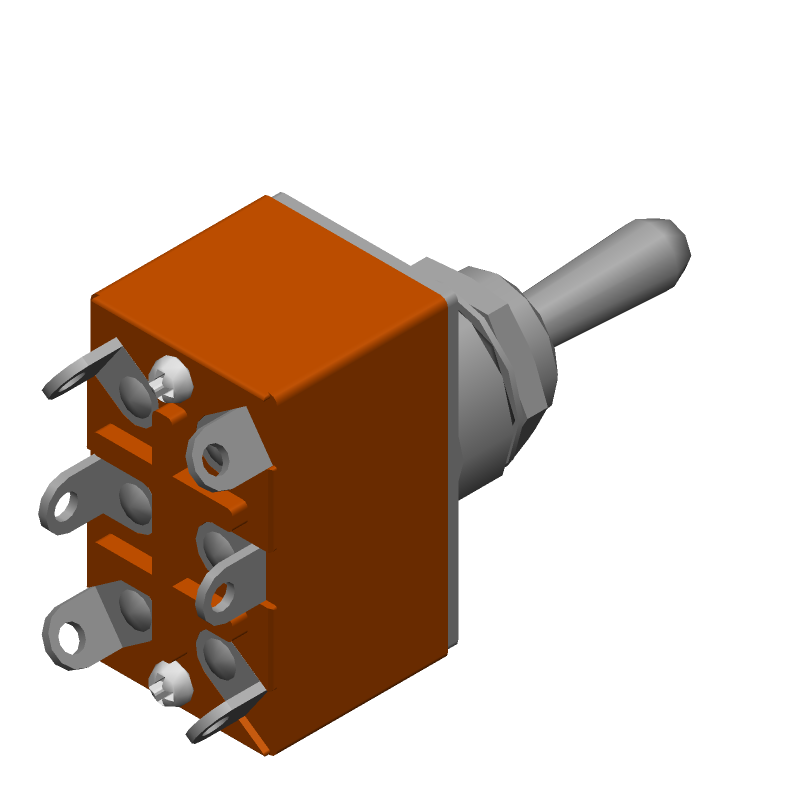

Medium Capacity Standard Size Panel Seal Toggle Switch; Poles: DPDT; Circuits: On-Off-On; Current Rating: 20A (AC/DC); Rating (AC): 125V; Rating (DC): 30V; Actuator Type: Standard Round; actuator length: 17.50mm; Illumination: Non-Illuminated; Mounting Type: Panel Mount; Termination Style: Solder Lug; panel cutout dimensions: Circular - 12.50mm Dia; bushing thread: M12 x 1; ingress protection: IP67 - Dust Tight, Waterproof; Rating: 20
|
