Resistors / Metal Oxide Film Resistors / RSMF3FT10R0
Datasheets

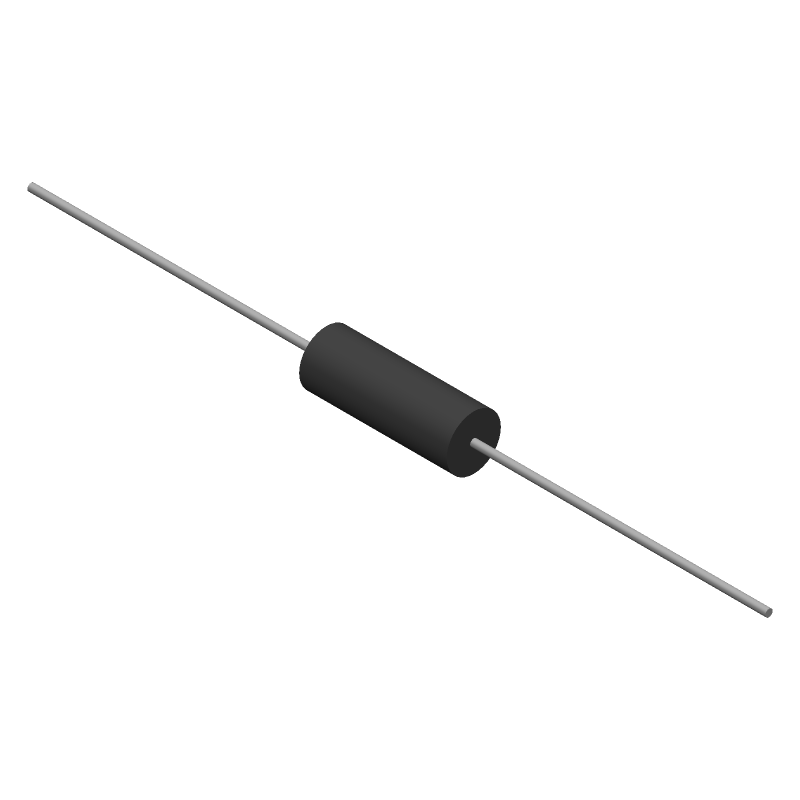

RSMF3FT10R0 by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Oxide Film, 3W, 10ohm, 500V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT

Part Details for RSMF3FT10R0 by SEI Stackpole Electronics Inc

Results Overview of RSMF3FT10R0 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Energy and Power Systems Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming

RSMF3FT10R0 Information

RSMF3FT10R0 by SEI Stackpole Electronics Inc is a Metal Oxide Film Resistor.
Metal Oxide Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RSMF3FT10R0

Part # Distributor Description Stock Price Buy
DISTI # RSMF3FT10R0-ND
DigiKey RES 10 OHM 1% 3W AXIAL Min Qty: 1000 Lead time: 22 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 1,000 $0.1018
$0.1018 Buy Now
DISTI # RSMF3FT10R0
Avnet Americas - Tape and Reel (Alt: RSMF3FT10R0) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 22 Weeks, 0 Days Container: Reel 4000 Factory Stock
  • 1,000 $0.1064
  • 2,000 $0.1048
  • 4,000 $0.1032
  • 6,000 $0.1016
  • 8,000 $0.1000
$0.1000 / $0.1064 Buy Now
DISTI # 708-RSMF3FT10R0
Mouser Electronics Metal Oxide Resistors RES, MOM, 3W, 10 ohm, 1% RoHS: Compliant 0
  • 1,000 $0.1010
$0.1010 Order Now
Onlinecomponents.com General Purpose Metal Oxide Resistor - 10 ohm ±1% - 3W - Body: 15.00 x 5.50mm Dia - Thru Hole RoHS: Compliant 4000 Factory Stock
  • 1,000 $0.1030
  • 2,000 $0.0960
  • 4,000 $0.0900
  • 8,000 $0.0880
$0.0880 / $0.1030 Buy Now
DISTI # 27467514
Verical General Purpose Metal Film Resistor RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Americas - 4000
  • 1,000 $0.4103
  • 4,000 $0.3749
$0.3749 / $0.4103 Buy Now
NAC RESISTOR, MINI METAL OXIDE, 3W, 10 ohm, 1% - Mini Metal Oxide Resistor RoHS: Compliant Min Qty: 1 Package Multiple: 1000 4000
  • 1,000 $0.2400
  • 5,000 $0.2060
  • 25,000 $0.1800
$0.1800 / $0.2400 Buy Now
Master Electronics General Purpose Metal Oxide Resistor - 10 ohm ±1% - 3W - Body: 15.00 x 5.50mm Dia - Thru Hole RoHS: Compliant 4000 Factory Stock
  • 1,000 $0.1030
  • 2,000 $0.0960
  • 4,000 $0.0900
  • 8,000 $0.0880
$0.0880 / $0.1030 Buy Now

Part Details for RSMF3FT10R0

RSMF3FT10R0 Part Data Attributes

Parametric Data
RSMF3FT10R0 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RSMF3FT10R0 SEI Stackpole Electronics Inc Fixed Resistor, Metal Oxide Film, 3W, 10ohm, 500V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description AXIAL LEADED
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.90
Factory Lead Time 22 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Additional Feature FLAMEPROOF
Construction Tubular
JESD-609 Code e3
Lead Diameter 0.75 mm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 2
Operating Temperature-Max 235 °C
Operating Temperature-Min -55 °C
Package Diameter 5.5 mm
Package Length 15 mm
Package Shape TUBULAR PACKAGE
Package Style Axial
Packing Method TR, 13.5 INCH
Rated Power Dissipation (P) 3 W
Rated Temperature 70 °C
Resistance 10 Ω
Resistor Type FIXED RESISTOR
Surface Mount NO
Technology METAL OXIDE FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish MATTE TIN
Terminal Shape WIRE
Tolerance 1%
Working Voltage 500 V
