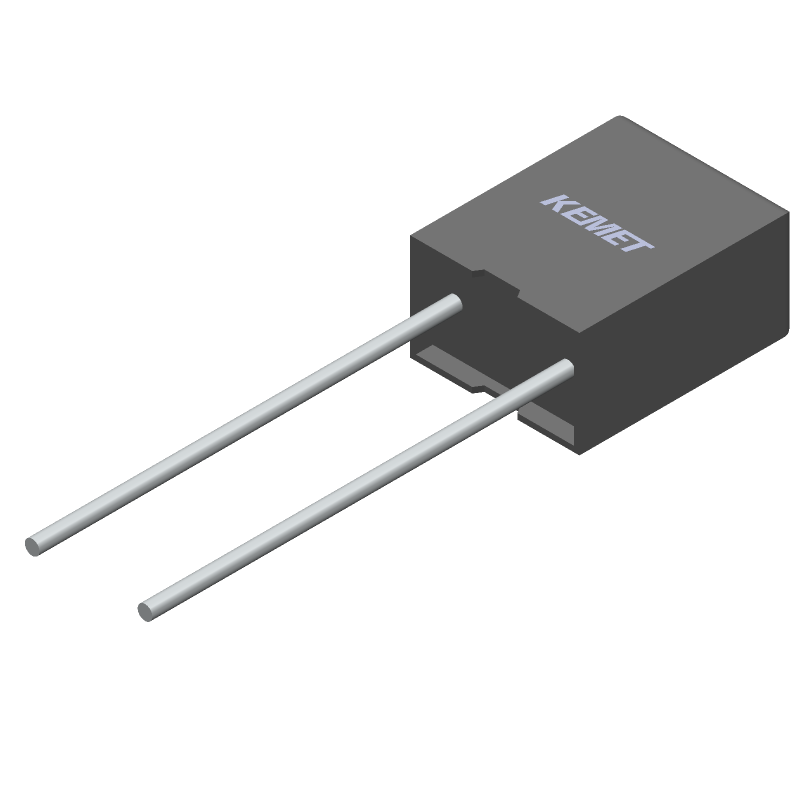

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RSBPC1330Z300K by KEMET Corporation
Results Overview of RSBPC1330Z300K by KEMET Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Telecommunications
Renewable Energy
Automotive
RSBPC1330Z300K Information
RSBPC1330Z300K by KEMET Corporation is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for RSBPC1330Z300K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AC3984
|
Newark | Cap, Film, 3300Pf, 630V, Radial, Dielectric Type:Metallized Pet Stacked, Capacitor Case/Package:Radial Box - 2 Pin, Capacitance:3300Pf, Capacitance Tolerance:± 10%, Voltage(Ac):220V, Voltage(Dc):630V, Capacitor Terminals:Pc Pin Rohs Compliant: Yes |Kemet RSBPC1330Z300K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1686 |
|
$0.0290 | Buy Now |
|
DISTI #
399-RSBPC1330Z300K-ND
|
DigiKey | CAP FILM RAD POLYPROP Min Qty: 20000 Lead time: 48 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.1045 | Buy Now |
|
DISTI #
RSBPC1330Z300K
|
Avnet Abacus | Film Capacitor 3300 pF 220 V 630 V 10 Metallized PET Stacked Radial Box 2 Pin (Alt: RSBPC1330Z300K) RoHS: Compliant Min Qty: 20000 Package Multiple: 2000 Lead time: 41 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for RSBPC1330Z300K
RSBPC1330Z300K CAD Models
RSBPC1330Z300K Part Data Attributes
|
|
RSBPC1330Z300K
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
RSBPC1330Z300K
KEMET Corporation
Film Capacitor, Polyester, 630V, 10% +Tol, 10% -Tol, 0.0033uF, 2818,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.70 | |
| Samacsys Manufacturer | KEMET | |
| Capacitance | 0.0033 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYETHYLENE TEREPHTHALATE | |
| Height | 9.5 mm | |
| JESD-609 Code | e3 | |
| Length | 7.2 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 10% | |
| Rated (AC) Voltage (URac) | 220 V | |
| Rated (DC) Voltage (URdc) | 630 V | |
| Reference Standard | AEC-Q200 | |
| Surface Mount | NO | |
| Terminal Finish | TIN | |
| Terminal Pitch | 5 mm | |
| Terminal Shape | WIRE | |
| Width | 4.5 mm |
