RS3-2409SZ/H3 Information
RS3-2409SZ/H3 by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for RS3-2409SZ/H3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
945-2402-5-ND
|
DigiKey | DC DC CONVERTER 9V 3W Min Qty: 1 Lead time: 10 Weeks Container: Tube |
4 In Stock |
|
$23.6638 / $26.9600 | Buy Now |
|
DISTI #
919-RS3-2409SZ/H3
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 3W DC/DC 3kV REG 3:1 9-27Vin 9Vout RoHS: Compliant | 47 |
|
$22.7100 / $26.8700 | Buy Now |
|
DISTI #
10011997
|
RECOM Power | 3W DC/DC-Converter 'ECONOLINE' SIP8 3kV reg 3:1 RoHS: Compliant | 4 |
|
$26.9600 | RFQ |
|
DISTI #
70424638
|
RS | Recom Isolated DC-DC Converter, Vin 9 to 27V dc, Vout 9V dc, I/O isolation 3000V dc Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$26.7800 / $30.4400 | RFQ |
|
|
Onlinecomponents.com | Module DC-DC 24VIN 1-OUT 9V 0.333A 3W Medical 7-Pin SIP Tube RoHS: Compliant |
4 Partner Stock 88 Factory Stock |
|
$21.0200 / $27.6800 | Buy Now |
|
DISTI #
RS3-2409SZ/H3
|
TME | Converter: DC/DC, 3W, Uin: 9÷27VDC, Uout: 9VDC, Iout: 333mA, SIP8 Min Qty: 1 | 0 |
|
$21.6400 / $25.1400 | RFQ |
|
DISTI #
RS3-2409SZ/H3
|
IBS Electronics | MODULE DC-DC 24VIN 1-OUT 9V 0.333A 3W MEDICAL 7-PIN SIP TUBE Min Qty: 4 Package Multiple: 1 | 4 |
|
$32.8625 | Buy Now |
|
DISTI #
RS32409SZH3
|
Richardson RFPD | DC TO DC CONVERTER MODULE RoHS: Not Compliant Min Qty: 22 | 4 |
|
$19.6800 | Buy Now |
|
DISTI #
000000000006066298
|
Sager | Isolated DC/DC Converters - Through Hole 3W DC/DC 3kV REG 3:1 9-27Vin 9Vout Min Qty: 1 | 0 |
|
$22.5100 / $26.2400 | Buy Now |
|
|
Master Electronics | Module DC-DC 24VIN 1-OUT 9V 0.333A 3W Medical 7-Pin SIP Tube RoHS: Compliant |
4 Partner Stock 88 Factory Stock |
|
$21.0200 / $27.6800 | Buy Now |
Part Details for RS3-2409SZ/H3

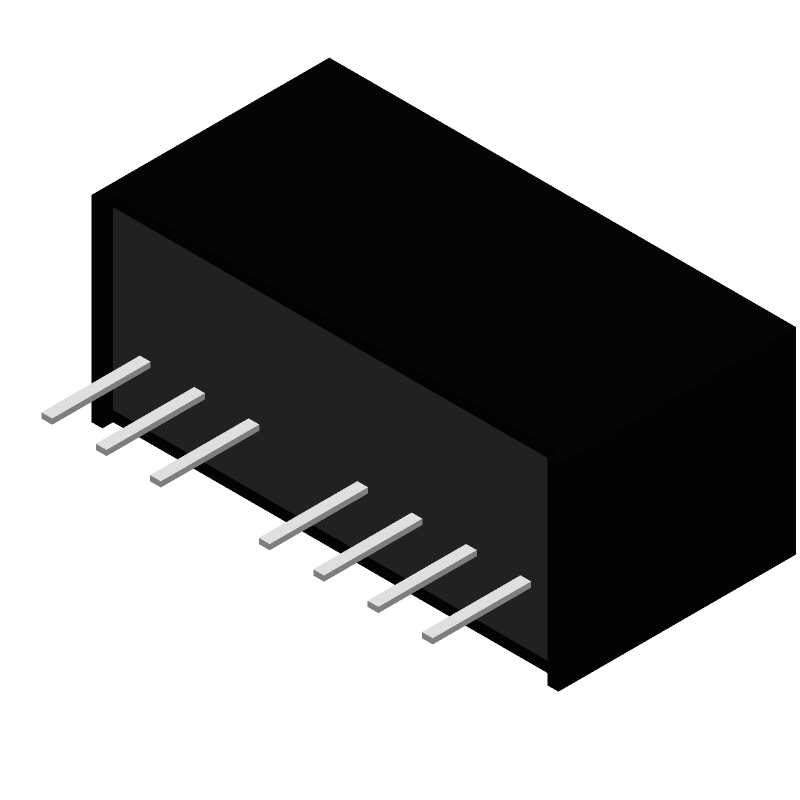

RS3-2409SZ/H3 CAD Models
RS3-2409SZ/H3 Part Data Attributes
|
|
RS3-2409SZ/H3
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
RS3-2409SZ/H3
RECOM Power GmbH
DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, ROHS COMPLIANT, SIP-8/7
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Package Description | SIP-8/7 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | IEC, EN, UL, CSA | |
| Efficiency (Main Output) | 77% | |
| Input Voltage-Max | 27 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PSIP-T7 | |
| Length | 21.8 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.333 A | |
| Output Voltage-Max | 9.18 V | |
| Output Voltage-Min | 8.82 V | |
| Output Voltage-Nom | 9 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SIP | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Protections | SHORT CIRCUIT | |
| Qualification Status | Not Qualified | |
| Ripple Voltage (Main Out) | 0.017675 Vrms | |
| Screening Level | IEC/EN 60601-1 | |
| Seated Height-Max | 11.6 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 3 W | |
| Trim/Adjustable Output | NO | |
| Width | 9.2 mm |
