Switches / Rocker Switches / RRG38132200
Datasheets
RRG38132200 by:

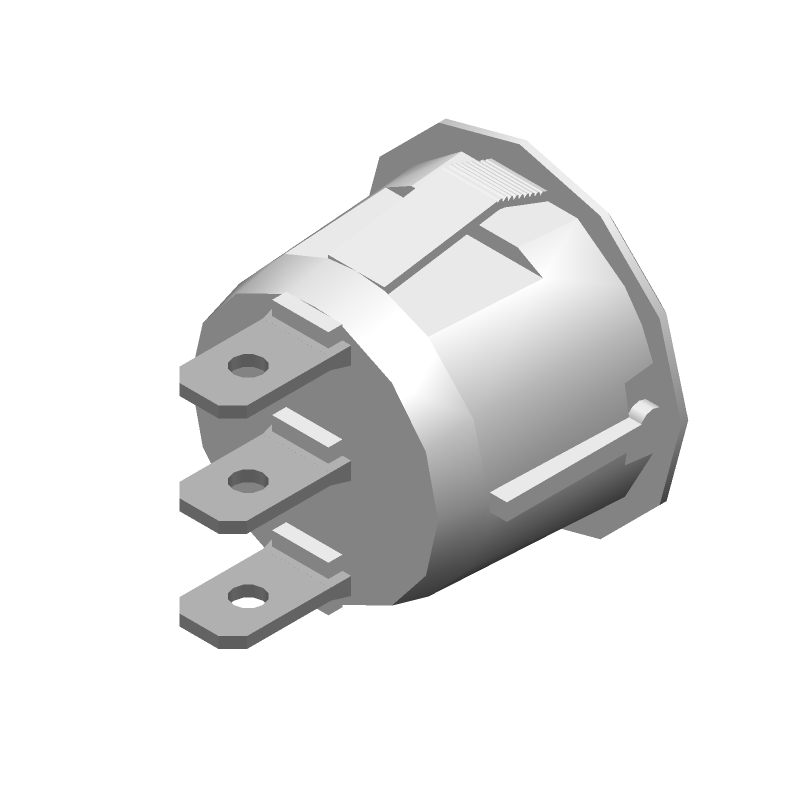

Rocker Switch, SPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount

Part Details for RRG38132200 by E-Switch Inc

Results Overview of RRG38132200 by E-Switch Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RRG38132200 Information

RRG38132200 by E-Switch Inc is a Rocker Switch.
Rocker Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for RRG38132200

Part # Distributor Description Stock Price Buy
DISTI # 40AH3707
Newark Ea Rohs Compliant: Yes |E-Switch RRG38132200 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $0.7350
  • 5,000 $0.6580
  • 10,000 $0.6380
$0.6380 / $0.7350 Buy Now
DISTI # RRG38132200-ND
DigiKey SWITCH ROCKER SPST 10A 125V Min Qty: 1 Lead time: 11 Weeks Container: Bulk Temporarily Out of Stock
  • 1 $0.8700
  • 10 $0.7550
  • 25 $0.7124
  • 50 $0.6816
  • 100 $0.6521
  • 250 $0.6150
  • 500 $0.5882
  • 1,000 $0.5626
$0.5626 / $0.8700 Buy Now
DISTI # 612-RRG38132200
Mouser Electronics Rocker Switches Rocker, SPST, Off-On, Panel Mount, Snap-In, White 0
  • 3,000 $0.5420
  • 5,000 $0.5320
  • 10,000 $0.5280
$0.5280 / $0.5420 Order Now
DISTI # 74852539
RS Rocker Switch, SPST, OFF-ON, 10A, 125V AC, Solder, QC 0.187", RRG3 Series Min Qty: 3000 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 0
  • 3,000 $0.9680
$0.9680 RFQ
DISTI # 69080895
Verical Switch Rocker OFF ON SPST Quick Connect Round Rocker 10A 250VAC Min Qty: 100 Package Multiple: 50 Date Code: 2121 Americas - 250
  • 100 $0.8841
  • 250 $0.8709
  • 500 $0.8579
  • 750 $0.8450
  • 1,500 $0.6338
$0.6338 / $0.8841 Buy Now
DISTI # RRG38132200
TME ROCKER, SPST-NO, Pos: 2, ON-OFF, 6A/250VAC, white, none, RRG3 Min Qty: 3000 0
  • 3,000 $0.5400
$0.5400 RFQ
DISTI # RRG38132200
IBS Electronics RRG38132200 by E-SWITCH is a rotary DIP switch featuring 10 positions, SP10T configuration, through-hole mounting, and gold-plated contacts for reliable signal switching in electronic applications. Min Qty: 50 Package Multiple: 1 285
  • 50 $0.8840
  • 250 $0.8710
  • 500 $0.8580
  • 750 $0.8450
  • 1,500 $0.6338
  • 2,250 $0.5915
  • 3,000 $0.5797
$0.5797 / $0.8840 Buy Now
Master Electronics Switch Rocker OFF ON SPST Quick Connect Round Rocker 10A 250VAC RoHS: Compliant 285 In Stock
  • 50 $0.6800
  • 250 $0.6700
  • 500 $0.6600
  • 750 $0.6500
  • 1,500 $0.4875
  • 2,250 $0.4550
  • 3,000 $0.4459
$0.4459 / $0.6800 Buy Now

Part Details for RRG38132200

RRG38132200 Part Data Attributes

Parametric Data
RRG38132200 E-Switch Inc
Buy Now Datasheet
Compare Parts:
RRG38132200 E-Switch Inc Rocker Switch, SPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer E-SWITCH INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Samacsys Manufacturer E-Switch
Actuator Color WHITE
Actuator Length 0.228 inch
Actuator Material POLYAMIDE
Actuator Type ROCKER
Body Color WHITE
Body Height 14.605 mm
Center Contact Material COPPER
Center Contact Plating SILVER
Contact (AC) Max Rating R Load 10A@125VAC
Contact Current(AC)-Max 10 A
Contact Function OFF-ON
Contact Resistance 0.035 mΩ
Contact Voltage(AC)-Max 125 V
Dielectric Withstand Volts 1500VAC V
Electrical Life 10000 Cycle(s)
Insulation Resistance 100000000 Ω
Insulator Material POLYAMIDE
Mounting Feature PANEL MOUNT
Operating Temperature-Max 125 °C
Operating Temperature-Min -20 °C
Surface Mount NO
Switch Action LATCHED
Switch Function SPST
Switch Type ROCKER SWITCH
Terminal Length 0.323 inch
Terminal Material COPPER
Termination Type QUICK CONNECT

Alternate Parts for RRG38132200

This table gives cross-reference parts and alternative options found for RRG38132200. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RRG38132200, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RR1113QQ11 E-Switch Inc $0.3583 Rocker Switch, SPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount RRG38132200 vs RR1113QQ11
RRG38131100 E-Switch Inc Check for Price Rocker Switch, SPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount RRG38132200 vs RRG38131100
RR11131121 E-Switch Inc Check for Price Rocker Switch, SPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount RRG38132200 vs RR11131121
