Switches / Rocker Switches / RRA12C1000-116
Datasheets
RRA12C1000-116 by:

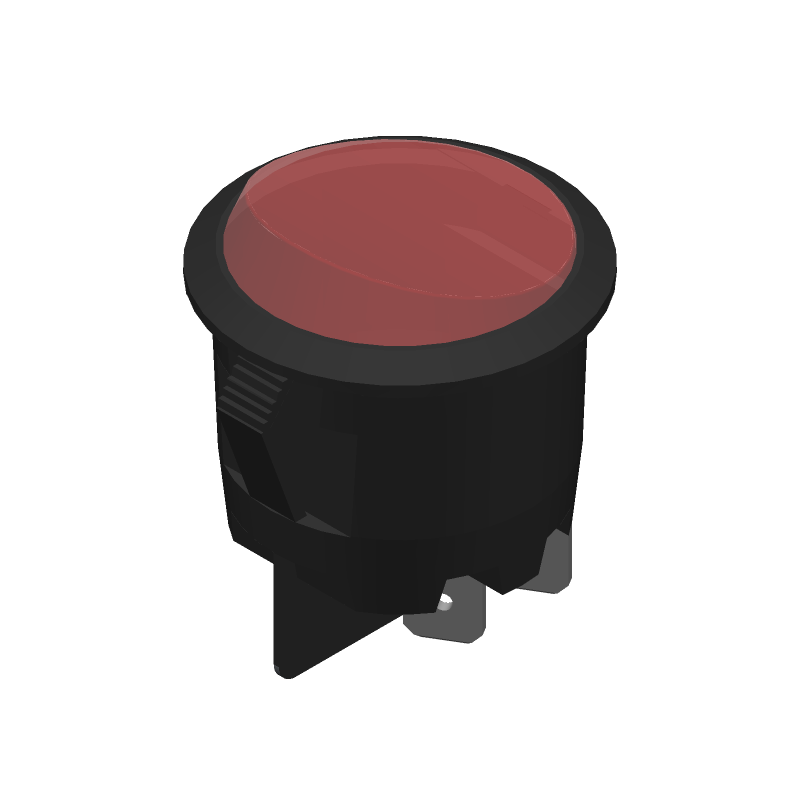

Rocker Switch, DPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount

Part Details for RRA12C1000-116 by E-Switch Inc

Results Overview of RRA12C1000-116 by E-Switch Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

RRA12C1000-116 Information

RRA12C1000-116 by E-Switch Inc is a Rocker Switch.
Rocker Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for RRA12C1000-116

Part # Distributor Description Stock Price Buy
DISTI # 40T8195
Newark Rocker Switch, Dpst, 15A, 125V, Panel, Switch Operation:Off-On, Contact Configuration:Dpst, Illumination:Illuminated, Switch Mounting:Panel Mount, Actuator/Cap Colour:Transparent Red, Product Range:Rra Series, Contact Voltage Vdc:-Rohs Compliant: Yes |E-Switch RRA12C1000-116 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2076
  • 1 $0.7200
  • 10 $0.7200
  • 25 $0.7200
  • 50 $0.7200
  • 100 $0.7200
  • 250 $0.7200
  • 500 $0.7200
  • 1,000 $0.7200
$0.7200 Buy Now
DISTI # EG4769-ND
DigiKey SWITCH ROCKER DPST 15A 125V Min Qty: 1 Lead time: 12 Weeks Container: Bulk 2459
In Stock
  • 1 $2.0400
  • 10 $1.7590
  • 25 $1.6588
  • 50 $1.5868
  • 100 $1.5180
  • 300 $1.4147
  • 500 $1.3690
  • 1,000 $1.3092
$1.3092 / $2.0400 Buy Now
DISTI # 612-RRA12C1000-116
Mouser Electronics Rocker Switches ROCKER SW DPST 15A RED ILLUM BLK ACTR RoHS: Compliant 1799
  • 1 $1.6300
  • 10 $1.2700
  • 100 $1.1300
  • 500 $1.0900
  • 1,000 $1.0400
$1.0400 / $1.6300 Buy Now
DISTI # 37143501
Verical Switch Rocker OFF ON DPST Quick Connect Round Rocker 15A 250VAC 248.57VA Min Qty: 70 Package Multiple: 1 Americas - 2076
  • 70 $1.2308
  • 100 $1.1757
  • 250 $1.1286
  • 500 $1.0878
  • 1,000 $1.0524
$1.0524 / $1.2308 Buy Now
DISTI # RRA12C1000-116
TME ROCKER, DPST, Pos: 2, ON-OFF, 10A/125VAC, transparent, LED, RRA Min Qty: 3000 0
  • 3,000 $1.3400
$1.3400 RFQ

Part Details for RRA12C1000-116

RRA12C1000-116 Part Data Attributes

Parametric Data
RRA12C1000-116 E-Switch Inc
Buy Now Datasheet
Compare Parts:
RRA12C1000-116 E-Switch Inc Rocker Switch, DPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount
Part Life Cycle Code Active
Ihs Manufacturer E-SWITCH INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Samacsys Manufacturer E-Switch
Actuator Color RED
Actuator Length 0.244 inch
Actuator Material POLYCARBONATE
Actuator Type ROCKER
Body Color BLACK
Body Height 14.605 mm
Body Length or Diameter 22.8092 mm
Contact (AC) Max Power Rating R Load 0.3HP@250VAC
Contact (AC) Max Rating R Load 10A@250VAC
Contact Current(AC)-Max 10 A
Contact Function OFF-ON
Contact Resistance 0.035 mΩ
Contact Voltage(AC)-Max 250 V
Dielectric Withstand Volts 1500VAC V
Electrical Life 6000 Cycle(s)
Illumination LAMP
Insulation Resistance 100000000 Ω
Insulator Material POLYAMIDE
Mounting Feature PANEL MOUNT
Operating Temperature-Max 105 °C
Operating Temperature-Min -20 °C
Surface Mount NO
Switch Action LATCHED
Switch Function DPST
Switch Type ROCKER SWITCH
Terminal Length 0.37 inch
Termination Type QUICK CONNECT

Alternate Parts for RRA12C1000-116

This table gives cross-reference parts and alternative options found for RRA12C1000-116. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RRA12C1000-116, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CN22J3GS207HQA7 C&K Check for Price ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,SOLDER TERMINAL,ROCKER RRA12C1000-116 vs CN22J3GS207HQA7
CN22J8RS207PQA8 C&K Check for Price ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,SOLDER TERMINAL,ROCKER RRA12C1000-116 vs CN22J8RS207PQA8
CN202J61S105PQA C&K Check for Price ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,QUICK CONNECT TERMINAL,ROCKER RRA12C1000-116 vs CN202J61S105PQA
RRA12C1000-136 E-Switch Inc Check for Price Rocker Switch, DPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount RRA12C1000-116 vs RRA12C1000-136
CN22J3RS207DQA8 C&K Check for Price ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,SOLDER TERMINAL,ROCKER RRA12C1000-116 vs CN22J3RS207DQA8
CN22J3RS105QA7 C&K Check for Price ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,QUICK CONNECT TERMINAL,ROCKER RRA12C1000-116 vs CN22J3RS105QA7
CN202J11S107QA C&K Check for Price ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,SOLDER TERMINAL,ROCKER RRA12C1000-116 vs CN202J11S107QA
CN202J11S105HQA C&K Check for Price ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,QUICK CONNECT TERMINAL,ROCKER RRA12C1000-116 vs CN202J11S105HQA
CN202J62S105DQA C&K Check for Price ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,QUICK CONNECT TERMINAL,ROCKER RRA12C1000-116 vs CN202J62S105DQA
CN22J8GS205HQA7 C&K Check for Price ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,QUICK CONNECT TERMINAL,ROCKER RRA12C1000-116 vs CN22J8GS205HQA7

RRA12C1000-116 Related Parts

RRA12C1000-116 Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the RRA12C1000-116 is -20°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.

  • Yes, the RRA12C1000-116 is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.

  • The typical actuation force required to switch the RRA12C1000-116 is around 1.5 N to 2.5 N, although this may vary depending on the specific application and environmental conditions.

  • Yes, the RRA12C1000-116 is designed to withstand high-vibration and high-shock environments, making it suitable for use in industrial, automotive, and other demanding applications.

  • Yes, the RRA12C1000-116 is available in various termination options, including through-hole, surface-mount, and wire-lead configurations, to accommodate different PCB design requirements.
