Switches / Rocker Switches / RR812C1000-116
Datasheets
RR812C1000-116 by:

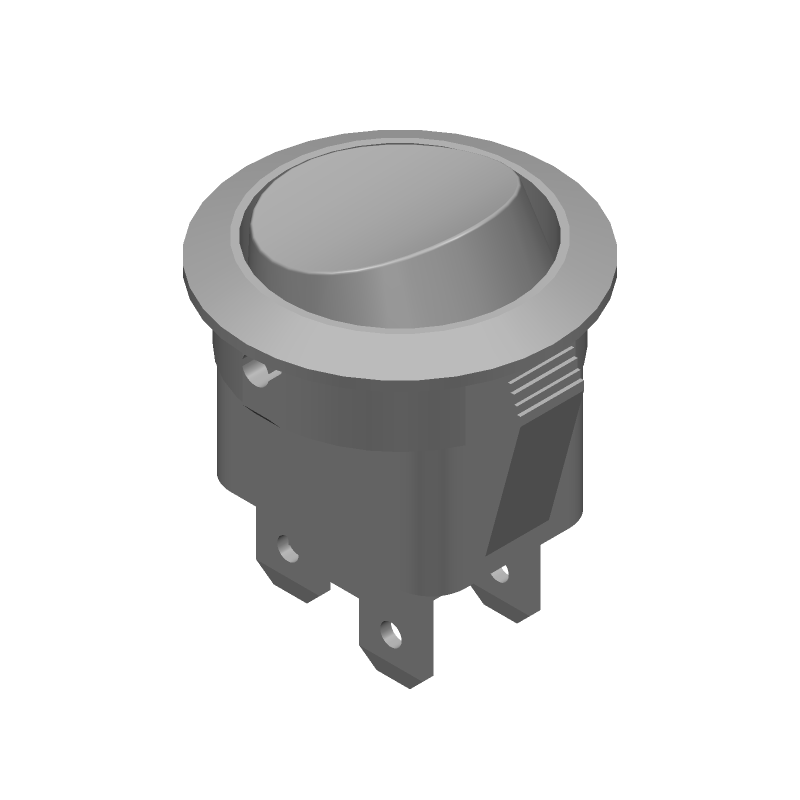

ROCKER SWITCH,STRAIGHT,DPST,OFF-ON,QUICK CONNECT TERMINAL,ROCKER

Part Details for RR812C1000-116 by E-Switch Inc

Results Overview of RR812C1000-116 by E-Switch Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RR812C1000-116 Information

RR812C1000-116 by E-Switch Inc is a Rocker Switch.
Rocker Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for RR812C1000-116

Part # Distributor Description Stock Price Buy
DISTI # 49Y5755
Newark Rocker Switch, Dpst, 16A, 125V, Panel, Switch Operation:Off-On, Contact Configuration:Dpst, Illumination:Illuminated, Switch Mounting:Panel Mount, Actuator/Cap Colour:Red, Product Range:Rr8 Series, Contact Current Ac Max:16A Rohs Compliant: Yes |E-Switch RR812C1000-116 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 1222
  • 1 $0.6090
  • 10 $0.6090
  • 25 $0.6090
  • 50 $0.6090
  • 100 $0.6090
  • 250 $0.6090
  • 500 $0.6090
  • 1,000 $0.6090
$0.6090 Buy Now
DISTI # EG4780-ND
DigiKey SWITCH ROCKER DPST 16A 125V Min Qty: 1 Lead time: 12 Weeks Container: Bulk 1495
In Stock
  • 1 $1.7400
  • 10 $1.5050
  • 25 $1.4192
  • 50 $1.3576
  • 100 $1.2987
  • 300 $1.2104
  • 500 $1.1713
  • 1,000 $1.1202
$1.1202 / $1.7400 Buy Now
DISTI # 612-RR812C1000-116
Mouser Electronics Rocker Switches ROCKER, 16A 125VAC, DPST Off-On, Panel Mount, Snap-In Quick Connect - 0.187" RoHS: Compliant 2733
  • 1 $1.7100
  • 10 $1.3600
  • 100 $1.2000
  • 500 $1.1700
  • 1,000 $1.1200
  • 2,500 $1.0500
$1.0500 / $1.7100 Buy Now
DISTI # 84768290
Verical Switch Rocker OFF ON DPST Quick Connect Round Rocker 16A 250VAC 248.57VA Min Qty: 83 Package Multiple: 1 Americas - 1222
  • 83 $1.3304
  • 100 $1.2727
  • 300 $1.1862
  • 500 $1.1479
  • 1,000 $1.0978
$1.0978 / $1.3304 Buy Now
DISTI # RR812C1000-116
TME ROCKER, DPST, Pos: 2, ON-OFF, 10A/125VAC, transparent, LED, RR8 Min Qty: 3000 0
  • 3,000 $1.1200
$1.1200 RFQ

Part Details for RR812C1000-116

RR812C1000-116 Part Data Attributes

Parametric Data
RR812C1000-116 E-Switch Inc
Buy Now Datasheet
Compare Parts:
RR812C1000-116 E-Switch Inc ROCKER SWITCH,STRAIGHT,DPST,OFF-ON,QUICK CONNECT TERMINAL,ROCKER
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer E-SWITCH INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.70.00
Samacsys Manufacturer E-Switch
Actuator Color RED
Actuator Length 0.217 inch
Actuator Type ROCKER
Body Color BLACK
Body Height 14.5034 mm
Center Contact Material SILVER
Contact (AC) Max Power Rating R Load 0.3HP@250VAC
Contact (AC) Max Rating R Load 10A@250VAC
Contact Current(AC)-Max 10 A
Contact Function OFF-ON
Contact Resistance 0.035 mΩ
Contact Voltage(AC)-Max 250 V
Dielectric Withstand Volts 1500VAC V
Electrical Life 10000 Cycle(s)
End Contact Material SILVER
Insulation Resistance 100000000 Ω
Insulator Material POLYAMIDE
Mounting Feature PANEL MOUNT
Operating Temperature-Max 125 °C
Operating Temperature-Min -20 °C
Surface Mount NO
Switch Function DPST
Switch Type ROCKER SWITCH
Terminal Length 0.315 inch
Terminal Material COPPER
Termination Type QUICK CONNECT

RR812C1000-116 Related Parts

RR812C1000-116 Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-1.0 N·m (0.36-0.72 lbf·in).

  • Yes, the switch is designed to withstand vibrations up to 10G (10-2000 Hz) and is suitable for high-vibration applications.

  • The switch has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection or sealing for outdoor or harsh environment applications.

  • The operating temperature range for the switch is -20°C to 85°C (-4°F to 185°F).

  • Yes, the RR812C1000-116 switch is RoHS and REACH compliant, making it suitable for use in the European Union and other regions with similar regulations.
