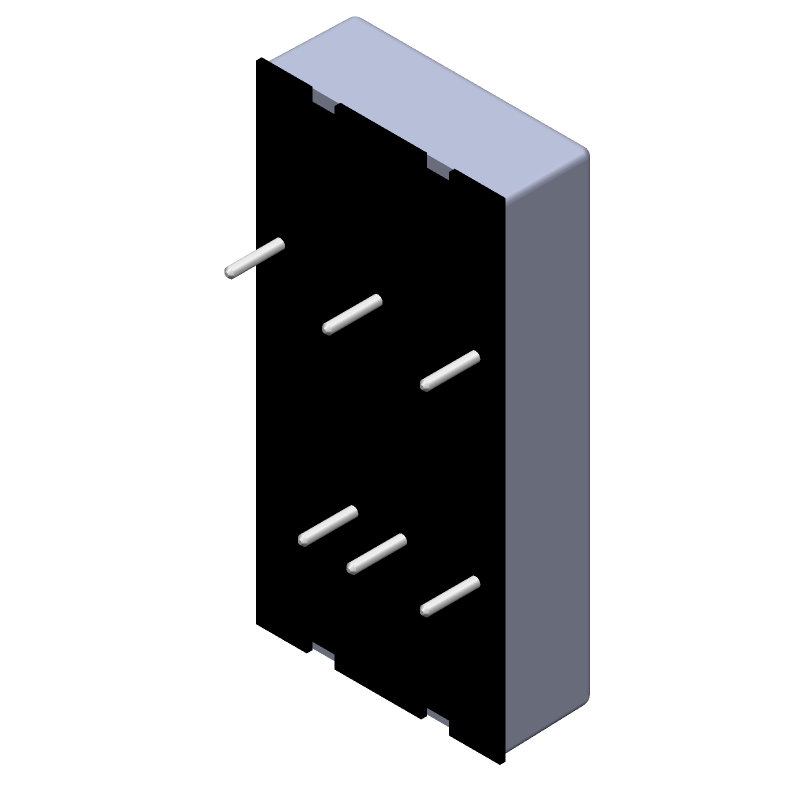

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RP20-243.3SF by RECOM Power GmbH
Results Overview of RP20-243.3SF by RECOM Power GmbH
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
RP20-243.3SF Information
RP20-243.3SF by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for RP20-243.3SF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
945-2386-5-ND
|
DigiKey | DC DC CONVERTER 3.3V 20W Min Qty: 1 Lead time: 10 Weeks Container: Tube |
9 In Stock |
|
$63.7507 / $71.0800 | Buy Now |
|
DISTI #
919-RP20-243.3SF
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 20W DC/DC 1.6kV REG 2:1 18-36Vin 3.3out RoHS: Compliant | 7 |
|
$58.0300 / $71.0700 | Buy Now |
|
DISTI #
30000553
|
RECOM Power | 20W DC/DC-Converter 'POWERLINE' 2"x1" 1.6kV reg 2:1 RoHS: Compliant | 9 |
|
$71.0800 | RFQ |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$54.3700 / $73.1200 | Buy Now |
|
DISTI #
RP20-243.3SF
|
TME | Converter: DC/DC, 20W, Uin: 18÷36VDC, Uout: 3.3VDC, Iout: 5A, 2"x1" Min Qty: 1 | 0 |
|
$49.1100 / $61.9600 | RFQ |
|
DISTI #
000000000006064722
|
Sager | Isolated DC/DC Converters - Through Hole 20W DC/DC 1.6kV REG 2:1 18-36Vin 3.3out Min Qty: 1 | 0 |
|
$54.3800 / $70.6900 | Buy Now |
Part Details for RP20-243.3SF
RP20-243.3SF CAD Models
RP20-243.3SF Part Data Attributes
|
|
RP20-243.3SF
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
RP20-243.3SF
RECOM Power GmbH
DC-DC Regulated Power Supply Module, 1 Output, 20W, Hybrid, PACKAGE-6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Part Package Code | MODULE | |
| Package Description | PACKAGE-6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Additional Feature | SEATED HGT-NOM | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 18 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-XDMA-P6 | |
| Length | 50.8 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 5 A | |
| Output Voltage-Max | 3.63 V | |
| Output Voltage-Min | 2.97 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Equivalence Code | MODULE,6LEAD,0.8 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 255 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 10.2 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 5 | |
| Total Power Output-Max | 20 W | |
| Trim/Adjustable Output | YES | |
| Width | 25.4 mm |
Alternate Parts for RP20-243.3SF
This table gives cross-reference parts and alternative options found for RP20-243.3SF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RP20-243.3SF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RP20-243.3SFR/N-HC | RECOM Power GmbH | $96.5650 | DC-DC Regulated Power Supply Module, | RP20-243.3SF vs RP20-243.3SFR/N-HC |
