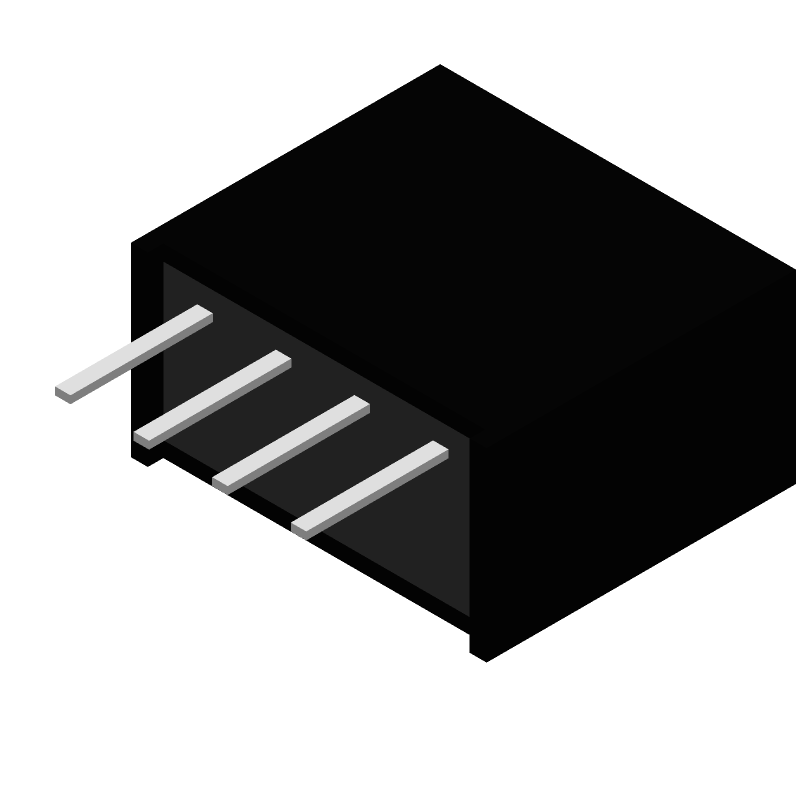

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ROE-0515S by RECOM Power GmbH
Results Overview of ROE-0515S by RECOM Power GmbH
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ROE-0515S Information
ROE-0515S by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ROE-0515S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
56Y5632
|
Newark | Dc-Dc Conv, Medical, 15V, 0.066A, Sip, Power Supply Applications:Ite, Dc/Dc Converter Type:Sip, Input Ratio:1:1, Output Power Max:1W, No. Of Outputs:1 Output, Output Voltage - Output 1:15V, Output Current - Output 1:66Ma, Width:6Mmrohs Compliant: Yes |Recom Power ROE-0515S RoHS: Compliant Min Qty: 42 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.8800 / $4.0400 | Buy Now |
|
DISTI #
ROE-0515S-ND
|
DigiKey | DC DC CONVERTER 15V 1W Min Qty: 1 Lead time: 6 Weeks Container: Tube | Temporarily Out of Stock |
|
$3.1107 / $3.6000 | Buy Now |
|
DISTI #
919-ROE-0515S
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 1W 5Vin 15Vout 66mA SIP4 RoHS: Compliant | 0 |
|
$2.7800 / $3.4700 | Order Now |
|
DISTI #
10018045
|
RECOM Power | 1W DC/DC-Converter 'ECONOLINE' SIP4 1kV unreg RoHS: Compliant | 558 |
|
$3.6000 | RFQ |
|
DISTI #
71897070
|
RS | DC-DC Converter, SIP4, 1kV unreg, Single Output, 1W, 15V Out, ROE Series Min Qty: 42 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk | 0 |
|
$3.2600 / $3.5100 | RFQ |
|
|
Future Electronics | 1W DC/DC-CONVERTER 'ECONOLINE' SIP4 1KV UNREG RoHS: Compliant pbFree: Yes Min Qty: 42 Package Multiple: 42 Lead time: 6 Weeks Container: Tube | 84Tube |
|
$2.4500 / $2.5400 | Buy Now |
|
|
Onlinecomponents.com | Module DC-DC 5VIN 1-OUT 15V 0.066A 1W 4-Pin SIP Module Tube RoHS: Compliant |
168 On Order 31 Factory Stock |
|
$2.9750 / $3.2950 | Buy Now |
|
|
Future Electronics | 1W DC/DC-CONVERTER 'ECONOLINE' SIP4 1KV UNREG Min Qty: 42 Package Multiple: 42 |
84 null |
|
$2.4500 / $2.5400 | Buy Now |
|
DISTI #
ROE-0515S
|
TME | Converter: DC/DC, 1W, Uin: 4.5÷5.5VDC, Uout: 15VDC, Iout: 66mA, SIP4 Min Qty: 1 | 18 |
|
$2.6300 / $3.1000 | Buy Now |
|
DISTI #
ROE-0515S
|
Richardson RFPD | DC TO DC CONVERTER MODULE RoHS: Compliant Min Qty: 42 | 0 |
|
$2.5100 | Buy Now |
Part Details for ROE-0515S
ROE-0515S CAD Models
ROE-0515S Part Data Attributes
|
|
ROE-0515S
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
ROE-0515S
RECOM Power GmbH
DC-DC Unregulated Power Supply Module,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Package Description | SIP-4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PSMA-P4 | |
| Length | 11.5 mm | |
| Load Regulation-Max | 10% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 15.75 V | |
| Output Voltage-Min | 14.25 V | |
| Output Voltage-Nom | 15 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 10.5 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | PIN/PEG | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 6 mm |
ROE-0515S Frequently Asked Questions (FAQ)
-
RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended.
-
To ensure reliability, RECOM recommends operating the module within the specified temperature range (–40°C to +85°C) and ensuring good airflow around the module. Additionally, derating the output power can help reduce the module's temperature.
-
RECOM recommends using a low-ESR ceramic capacitor (e.g., X7R or X5R) with a value of 10-22 μF, depending on the input voltage and ripple requirements.
-
RECOM recommends using a TVS diode or a transient voltage suppressor (TVS) at the input to protect the module from voltage transients and surges.
-
RECOM recommends using a low-ESR ceramic capacitor (e.g., X7R or X5R) with a value of 10-22 μF, depending on the output voltage and ripple requirements.
