RNCP0805FTD24K9 Information
RNCP0805FTD24K9 by SEI Stackpole Electronics Inc is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RNCP0805FTD24K9
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
RNCP0805FTD24K9CT-ND
|
DigiKey | RES 24.9K OHM 1% 1/4W 0805 Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
9260 In Stock |
|
$0.0063 / $0.1000 | Buy Now |
|
DISTI #
RNCP0805FTD24K9
|
Avnet Americas | Res Thin Film 0805 24.9kOhm 1% 1/4W ?100ppm/?C Molded Paper T/R - Tape and Reel (Alt: RNCP0805FTD24K9) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel | 0 |
|
$0.0057 / $0.0061 | Buy Now |
|
DISTI #
708-RNCP0805FTD24K9
|
Mouser Electronics | Thin Film Resistors - SMD 24.9KOhms 0805 0.25W 100ppm 1% Hi Pwr Anti-Sulfur RoHS: Compliant | 12652 |
|
$0.0060 / $0.1000 | Buy Now |
|
DISTI #
V72:2272_07138209
|
Arrow Electronics | Res Thin Film 0805 24.9K Ohm 1% 0.25W(1/4W) ±100ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks Date Code: 1835 Container: Cut Strips | Americas - 37 |
|
$0.0011 / $0.0180 | Buy Now |
|
|
Onlinecomponents.com | High Power Thin Film Chip Resistor - 24.9 kohm ±1% - 0.25W - SMD 0805 - Tape&Reel RoHS: Compliant | 0 |
|
$0.0059 / $0.0069 | Buy Now |
|
|
NAC | RESISTOR, 24.9 Kohm, 0805, 1%, 100 ppm, 0.25W - Thin Film - High Power RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 | 0 |
|
$0.0140 / $0.0160 | Buy Now |
Part Details for RNCP0805FTD24K9

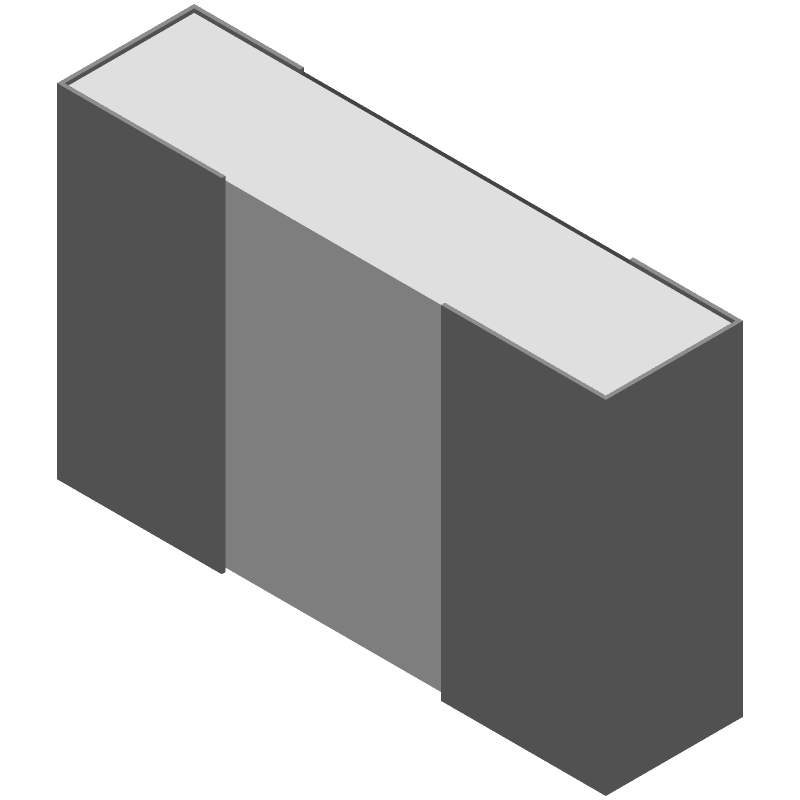

RNCP0805FTD24K9 CAD Models
RNCP0805FTD24K9 Part Data Attributes
|
|
RNCP0805FTD24K9
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RNCP0805FTD24K9
SEI Stackpole Electronics Inc
Fixed Resistor, Thin Film, 0.25W, 24900ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Additional Feature | ANTI-SULFUR, PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.5 mm | |
| Package Length | 2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 24900 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | THIN FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
RNCP0805FTD24K9 Frequently Asked Questions (FAQ)
-
The recommended land pattern for the RNCP0805FTD24K9 is a rectangular pad with a length of 1.5mm, a width of 0.8mm, and a solder mask clearance of 0.1mm.
-
Yes, the RNCP0805FTD24K9 is a thin-film resistor with a low inductance design, making it suitable for high-frequency applications up to several hundred MHz.
-
The RNCP0805FTD24K9 has a maximum operating temperature of 150°C, but it's recommended to derate the power rating above 125°C to ensure reliability and prevent thermal damage.
-
Yes, the RNCP0805FTD24K9 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
-
The RNCP0805FTD24K9 has an MSL rating of 1, which means it can withstand normal humidity and temperature conditions without requiring special handling or storage.
