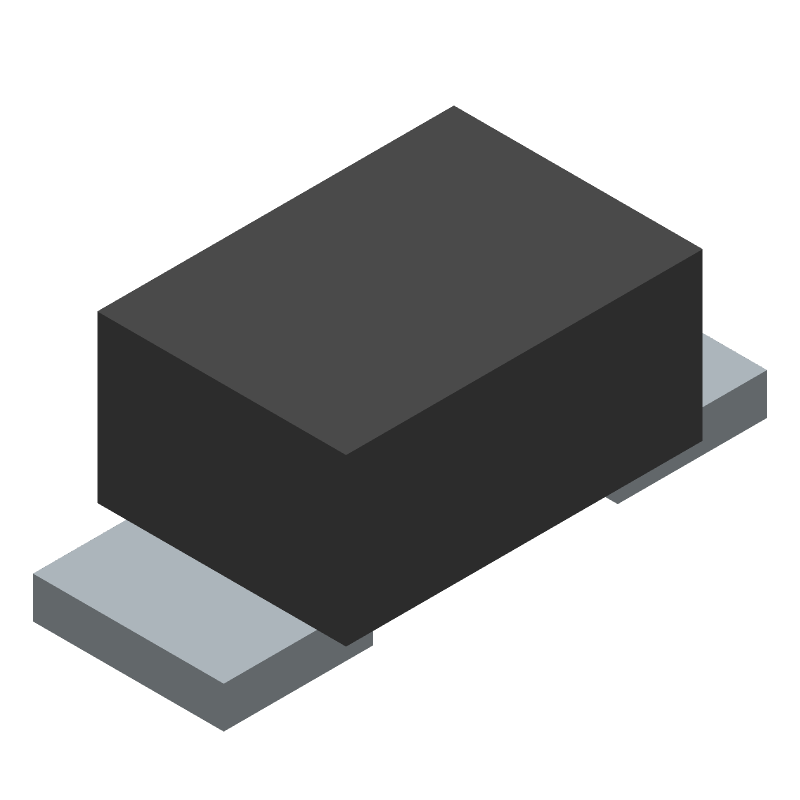

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RN141CMT2R by ROHM Semiconductor
Results Overview of RN141CMT2R by ROHM Semiconductor
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
RN141CMT2R Information
RN141CMT2R by ROHM Semiconductor is a PIN Diode.
PIN Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for RN141CMT2R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10AH0777
|
Newark | Pin Diode, 100V, 0.1A, Sod-923, Diode Configuration:Single, Resistance @ If:2Ohm, Reverse Voltage:-, Diode Case Style:Sod-923, No. Of Pins:2 Pin, Diode Capacitance:0.8Pf, Forward Current:100Ma, Operating Temperature Max:150°C Rohs Compliant: Yes |Rohm RN141CMT2R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 7184 |
|
$0.0710 | Buy Now |
|
DISTI #
846-RN141CMT2RCT-ND
|
DigiKey | PIN DIODE 50V 100MA VMN2M Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
7199 In Stock |
|
$0.1107 / $0.3000 | Buy Now |
|
DISTI #
755-RN141CMT2R
|
Mouser Electronics | PIN Diodes DIODE-SS 50V SOD-923 RoHS: Compliant | 15031 |
|
$0.1140 / $0.3000 | Buy Now |
|
DISTI #
68038955
|
Verical | Diode PIN Switch 50V 100mA 2-Pin VMN-M T/R RoHS: Compliant Min Qty: 770 Package Multiple: 1 Date Code: 2301 | Americas - 3482 |
|
$0.1225 / $0.1339 | Buy Now |
|
DISTI #
87728816
|
Verical | Diode PIN Switch 50V 100mA 2-Pin VMN-M T/R RoHS: Compliant Min Qty: 520 Package Multiple: 1 Date Code: 2242 | Americas - 1300 |
|
$0.1300 / $0.1740 | Buy Now |
|
|
Quest Components | 2785 |
|
$0.1080 / $0.5400 | Buy Now | |
|
DISTI #
RN141CMT2R
|
TTI | PIN Diodes DIODE-SS 50V SOD-923 RoHS: Compliant pbFree: Pb-Free Min Qty: 8000 Package Multiple: 8000 Container: Reel | Americas - 0 |
|
$0.1400 / $0.1520 | Buy Now |
|
DISTI #
RN141CMT2R
|
TME | Diode: switching, 50V, 0.1A, SOD923, single diode, Ufmax: 1V, 0.8pF Min Qty: 1 | 7820 |
|
$0.0720 / $0.5720 | Buy Now |
|
DISTI #
RN141CMT2R
|
Avnet Silica | Diode Switch 50V 08pF 2Pin SOD923 Emboss TR (Alt: RN141CMT2R) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for RN141CMT2R
RN141CMT2R CAD Models
RN141CMT2R Part Data Attributes
|
|
RN141CMT2R
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
RN141CMT2R
ROHM Semiconductor
Pin Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Date Of Intro | 2018-08-09 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | HIGH RELIABILITY | |
| Application | SWITCHING | |
| Breakdown Voltage-Min | 50 V | |
| Configuration | SINGLE | |
| Diode Capacitance-Max | 0.8 pF | |
| Diode Element Material | SILICON | |
| Diode Forward Resistance-Max | 2 Ω | |
| Diode Res Test Current | 3 mA | |
| Diode Res Test Frequency | 100 MHz | |
| Diode Type | PIN DIODE | |
| Frequency Band | VERY HIGH FREQUENCY | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reverse Test Voltage | 1 V | |
| Surface Mount | YES | |
| Technology | POSITIVE-INTRINSIC-NEGATIVE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
