Resistors / Fixed Resistors / RMCF0402JT180R
Datasheets

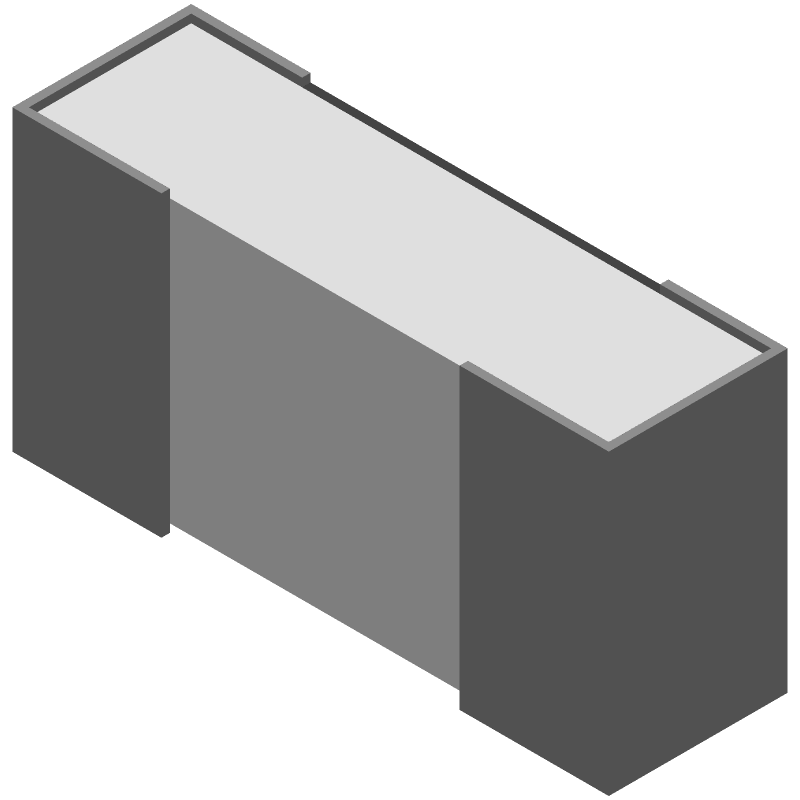

RMCF0402JT180R by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Glaze/thick Film, 0.063W, 180ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP

Part Details for RMCF0402JT180R by SEI Stackpole Electronics Inc

Results Overview of RMCF0402JT180R by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RMCF0402JT180R Information

RMCF0402JT180R by SEI Stackpole Electronics Inc is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RMCF0402JT180R

Part # Distributor Description Stock Price Buy
DISTI # RMCF0402JT180RCT-ND
DigiKey RES 180 OHM 5% 1/16W 0402 Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 178546
In Stock
  • 1 $0.1000
  • 10 $0.0170
  • 50 $0.0094
  • 100 $0.0074
  • 500 $0.0046
  • 1,000 $0.0038
  • 5,000 $0.0026
  • 10,000 $0.0012
  • 20,000 $0.0011
  • 30,000 $0.0011
  • 50,000 $0.0011
  • 70,000 $0.0011
  • 100,000 $0.0011
  • 250,000 $0.0011
  • 500,000 $0.0011
  • 1,000,000 $0.0010
$0.0010 / $0.1000 Buy Now
DISTI # RMCF0402JT180R
Avnet Americas - Tape and Reel (Alt: RMCF0402JT180R) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 17 Weeks, 0 Days Container: Reel 0
  • 10,000 $0.0011
  • 20,000 $0.0011
  • 40,000 $0.0011
  • 60,000 $0.0011
  • 80,000 $0.0011
$0.0011 Buy Now
DISTI # RMCF0402JT180R
Avnet Americas - Tape and Reel (Alt: RMCF0402JT180R) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 17 Weeks, 0 Days Container: Reel 0
  • 10,000 $0.0011
  • 20,000 $0.0011
  • 40,000 $0.0011
  • 60,000 $0.0011
  • 80,000 $0.0011
$0.0011 Buy Now
DISTI # 708-RMCF0402JT180R
Mouser Electronics Thick Film Resistors - SMD 180Ohms 0402 0.063W 0.05 Std Power RoHS: Compliant 48094
  • 1 $0.1000
  • 10 $0.0080
  • 100 $0.0060
  • 500 $0.0040
  • 2,500 $0.0030
  • 10,000 $0.0010
$0.0010 / $0.1000 Buy Now
DISTI # V72:2272_07142727
Arrow Electronics Res Thick Film 0402 180 Ohm 5% 0.063W(1/16W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks Date Code: 1939 Container: Cut Strips Americas - 10398
  • 10,398 $0.0013
$0.0013 Buy Now
Onlinecomponents.com Thick Film Chip Resistor - 180 ohm ±5% - 0.063W - SMD 0402 - Tape&Reel RoHS: Compliant 0
  • 10,000 $0.0014
  • 20,000 $0.0013
  • 40,000 $0.0012
  • 80,000 $0.0011
$0.0011 / $0.0014 Buy Now
NAC RESISTOR, 0402, 180 ohm, 5%, 0.0625W - Thick film - General Purpose RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 0
  • 10,000 $0.0030
  • 250,000 $0.0030
$0.0030 Buy Now

Part Details for RMCF0402JT180R

RMCF0402JT180R Part Data Attributes

Parametric Data
RMCF0402JT180R SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RMCF0402JT180R SEI Stackpole Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.063W, 180ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 17 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.3 mm
Package Length 1 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.5 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.063 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 180 Ω
Resistor Type FIXED RESISTOR
Size Code 0402
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 5%
Working Voltage 50 V

Alternate Parts for RMCF0402JT180R

This table gives cross-reference parts and alternative options found for RMCF0402JT180R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RMCF0402JT180R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CR20181J-13 MERITEK Electronics Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 180ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT RMCF0402JT180R vs CR20181J-13
CR0402JF0181G LIZ Electronics (Kunshan) Co., Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 180ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP RMCF0402JT180R vs CR0402JF0181G
RC0402JR-10180R YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 180ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT RMCF0402JT180R vs RC0402JR-10180R
RMP04JT181 TA-I Technology Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 180ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, LEAD FREE RMCF0402JT180R vs RMP04JT181
RC0402JR-13180R YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 180ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT RMCF0402JT180R vs RC0402JR-13180R
RM04JTN181 TA-I Technology Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 180ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1005, CHIP, LEAD FREE RMCF0402JT180R vs RM04JTN181
AF0402JR-10180RL YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 180ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT RMCF0402JT180R vs AF0402JR-10180RL
RTT02181JH5 Ralec Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 180ohm, 50V, 5% +/-Tol, -100,100ppm/Cel, 0402, RMCF0402JT180R vs RTT02181JH5
RC0402JR-07180R YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 180ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT RMCF0402JT180R vs RC0402JR-07180R
BCTS000402-1800JTH Chilisin Electronics Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 180ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP RMCF0402JT180R vs BCTS000402-1800JTH

RMCF0402JT180R Related Parts

RMCF0402JT180R Frequently Asked Questions (FAQ)

  • The recommended land pattern for RMCF0402JT180R is a rectangular pad with a size of 0.5mm x 0.5mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.

  • Yes, RMCF0402JT180R is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the self-resonant frequency (SRF) of the component, which is around 2.5 GHz, and ensure that the operating frequency is below the SRF to avoid resonance issues.

  • RMCF0402JT180R is rated for operation up to 150°C, with a derating of 1% per °C above 125°C. It's essential to consider the temperature coefficient of resistance (TCR) and ensure that the component is within its specified operating temperature range to maintain its performance and reliability.

  • The recommended soldering profile for RMCF0402JT180R is a reflow profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a cooling rate of 3-6°C/second. It's essential to follow the manufacturer's recommended soldering profile to ensure reliable assembly and minimize the risk of damage or defects.

  • Yes, RMCF0402JT180R is suitable for automotive applications, but it's essential to ensure that the component meets the specific requirements of the automotive industry, such as AEC-Q200 qualification, and that it's used within its specified operating conditions and ratings.
