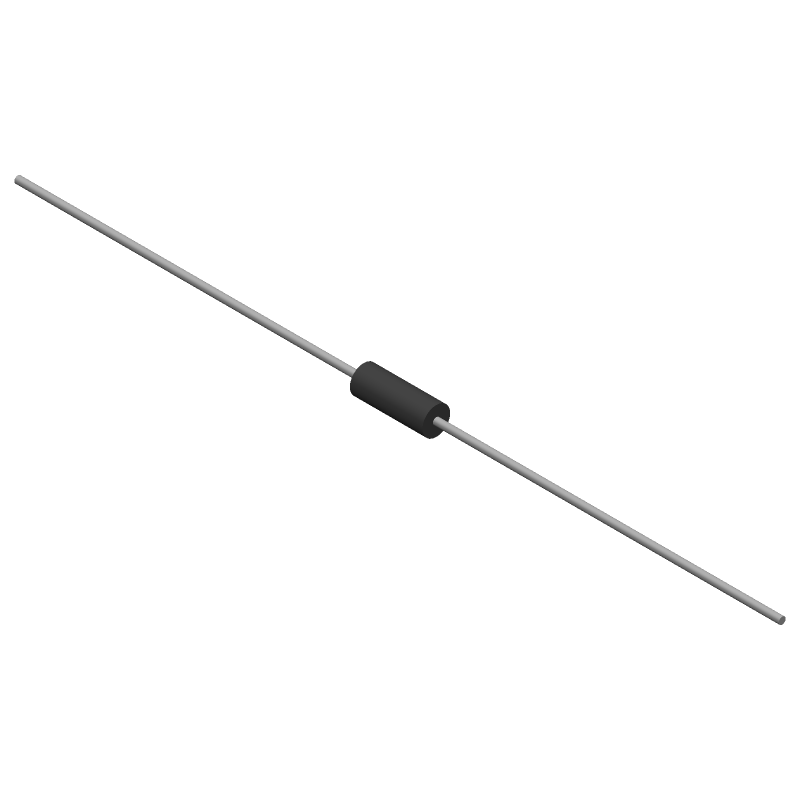

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RC14JB330R by SEI Stackpole Electronics Inc
Results Overview of RC14JB330R by SEI Stackpole Electronics Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RC14JB330R Information
RC14JB330R by SEI Stackpole Electronics Inc is a Carbon Composition Resistor.
Carbon Composition Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RC14JB330R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
NAC | RESISTOR, CC, 1/4W, 330 ohm, 5% - Carbon Composition RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | 0 |
|
$0.1925 / $0.2570 | Buy Now |
Part Details for RC14JB330R
RC14JB330R CAD Models
RC14JB330R Part Data Attributes
|
|
RC14JB330R
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RC14JB330R
SEI Stackpole Electronics Inc
Fixed Resistor, Carbon Composition, 0.25W, 330ohm, 250V, 5% +/-Tol, 267ppm/Cel, Through Hole Mount, AXIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | Axial, | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.10.00.60 | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Additional Feature | NON-INDUCTIVE | |
| Construction | Tubular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.6 mm | |
| Lead Length | 30 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 2.4 mm | |
| Package Length | 6.3 mm | |
| Package Shape | TUBULAR PACKAGE | |
| Package Style | Axial | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Resistance | 330 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | CARBON COMPOSITION | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | WIRE | |
| Tolerance | 5% | |
| Working Voltage | 250 V |
RC14JB330R Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the RC14JB330R is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the RC14JB330R is resistant to sulfurization, which means it can withstand the corrosive effects of sulfur compounds in the atmosphere.
-
Yes, the RC14JB330R is suitable for high-frequency applications up to 1 GHz due to its low inductance and high-frequency stability.
-
The RC14JB330R has an MSL rating of 1, which means it can withstand exposure to moisture without damage.
-
Yes, the RC14JB330R is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives.
