Resistors / Metal Glaze/Thick Film Resistors / RC0201JR-7D0RL
Datasheets
RC0201JR-7D0RL by: YAGEO Corporation

Fixed Resistor, Metal Glaze/thick Film, 0.05W, 0ohm, Surface Mount, 0201, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for RC0201JR-7D0RL by YAGEO Corporation

Results Overview of RC0201JR-7D0RL by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RC0201JR-7D0RL Information

RC0201JR-7D0RL by YAGEO Corporation is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RC0201JR-7D0RL

Part # Distributor Description Stock Price Buy
DISTI # RC0201JR-7D0RL
Avnet Americas General Purpose Chip Resistor Thick Film 0201 Jumper 0Ohm Paper T/R - Tape and Reel (Alt: RC0201JR-7D0RL) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 111 Weeks, 0 Days Container: Reel 0
RFQ
DISTI # 603-RC0201JR-7D0RL
Mouser Electronics Thick Film Resistors - SMD 0 Ohms 50mW 0201 5% RoHS: Compliant 132315
  • 1 $0.1000
  • 10 $0.0250
  • 100 $0.0190
  • 1,000 $0.0150
  • 2,500 $0.0110
  • 10,000 $0.0090
  • 20,000 $0.0070
  • 40,000 $0.0060
$0.0060 / $0.1000 Buy Now
DISTI # RC0201JR-7D0RL
IBS Electronics RES THICK FILM 0201 0 OHM MOLDED SMD SMD PAPER T/R Min Qty: 20000 Package Multiple: 1 0
  • 20,000 $0.0023
  • 60,000 $0.0022
  • 80,000 $0.0022
  • 200,000 $0.0021
  • 300,000 $0.0021
$0.0021 / $0.0023 Buy Now

Part Details for RC0201JR-7D0RL

RC0201JR-7D0RL CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

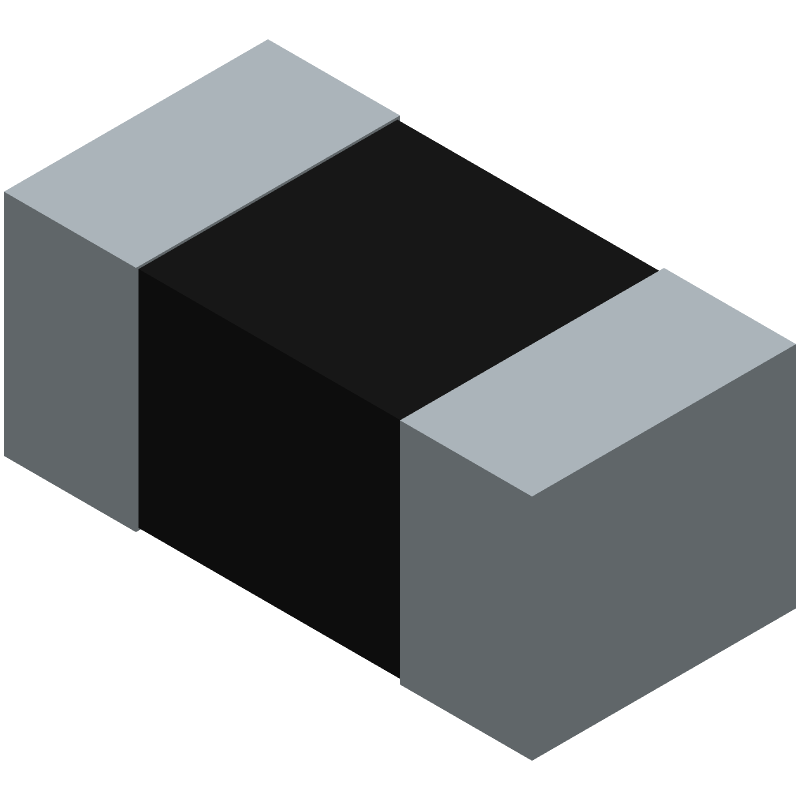

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RC0201JR-7D0RL Part Data Attributes

Parametric Data
RC0201JR-7D0RL YAGEO Corporation
Buy Now Datasheet
Compare Parts:
RC0201JR-7D0RL YAGEO Corporation Fixed Resistor, Metal Glaze/thick Film, 0.05W, 0ohm, Surface Mount, 0201, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP, HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 111 Weeks
Samacsys Manufacturer YAGEO
Additional Feature LASER TRIMMABLE; RATED CURRENT: 0.5A
Construction Chip
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 0.23 mm
Package Length 0.6 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.3 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.05 W
Rated Temperature 70 °C
Resistance
Resistor Type JUMPER
Size Code 0201
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND

Alternate Parts for RC0201JR-7D0RL

This table gives cross-reference parts and alternative options found for RC0201JR-7D0RL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RC0201JR-7D0RL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CR0201-J/-000GLF Bourns Inc $0.0024 Fixed Resistor, Ruthenium Oxide, 0.05W, 0ohm, -250,500ppm/Cel, Surface Mount, 0201, CHIP, ROHS COMPLIANT RC0201JR-7D0RL vs CR0201-J/-000GLF
RC0201FR-070RL YAGEO Corporation $0.0058 Fixed Resistor, Metal Glaze/thick Film, 0.05W, 0ohm, Surface Mount, 0201, CHIP RC0201JR-7D0RL vs RC0201FR-070RL
RC0201JR-070RL YAGEO Corporation $0.0071 Fixed Resistor, Metal Glaze/thick Film, 0.05W, 0ohm, Surface Mount, 0201, CHIP RC0201JR-7D0RL vs RC0201JR-070RL
RCS0603J000CS Samsung Electro-Mechanics Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 0ohm, Surface Mount, 0201, CHIP RC0201JR-7D0RL vs RCS0603J000CS
RC0201JR-130RL YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 0ohm, Surface Mount, 0201, CHIP RC0201JR-7D0RL vs RC0201JR-130RL
RC0603J000CS Samsung Electro-Mechanics Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 0ohm, Surface Mount, 0201, CHIP RC0201JR-7D0RL vs RC0603J000CS

RC0201JR-7D0RL Related Parts

RC0201JR-7D0RL Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds, with a peak temperature of 280°C.

  • Yes, the RC0201JR-7D0RL is suitable for high-frequency applications up to 1 GHz due to its low inductance and high-frequency stability.

  • The MSL of the RC0201JR-7D0RL is 1, which means it can withstand normal humidity and temperature conditions without special handling or storage requirements.

  • Yes, the RC0201JR-7D0RL meets the AEC-Q200 standard for automotive applications, ensuring reliability and performance in harsh environments.

  • The typical power rating of the RC0201JR-7D0RL is 0.063 W, but it can handle up to 0.1 W for short periods of time.
