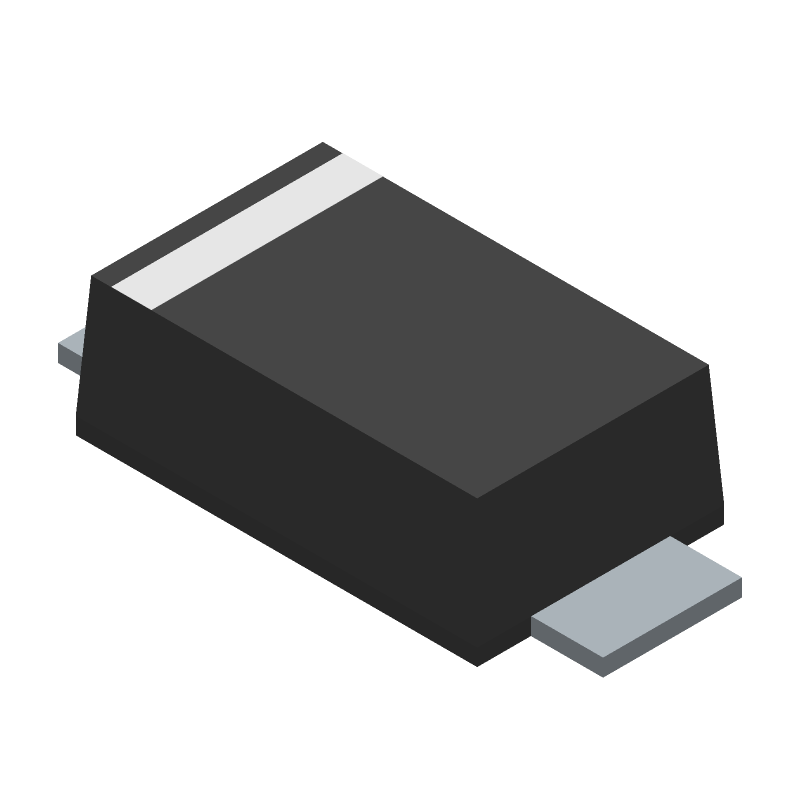

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RB168M150TR by ROHM Semiconductor
Results Overview of RB168M150TR by ROHM Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
RB168M150TR Information
RB168M150TR by ROHM Semiconductor is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for RB168M150TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
RB168M150CT-ND
|
DigiKey | DIODE SCHOTTKY 150V 1A PMDU Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.8000 | Buy Now |
|
DISTI #
755-RB168M150TR
|
Mouser Electronics | Schottky Diodes & Rectifiers PNP Driver Transistor RoHS: Compliant | 2941 |
|
$0.1760 / $0.5200 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE, SCHOTTKY, 1 ELEMENT, 1A, 150V V(RRM) | 86590 |
|
$0.1875 / $0.6250 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE, SCHOTTKY, 1 ELEMENT, 1A, 150V V(RRM) | 741 |
|
$0.2370 / $0.7900 | Buy Now |
|
DISTI #
RB168M150TR
|
TTI | Schottky Diodes & Rectifiers PNP Driver Transistor RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.1630 | Buy Now |
|
DISTI #
RB168M150TR
|
Avnet Asia | Diode Schottky Barrier Diode 150V 1A 2-Pin PMDU T/R (Alt: RB168M150TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days | 0 |
|
RFQ |
Part Details for RB168M150TR
RB168M150TR CAD Models
RB168M150TR Part Data Attributes
|
|
RB168M150TR
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
RB168M150TR
ROHM Semiconductor
Rectifier Diode, Schottky, 1 Element, 1A, 150V V(RRM),
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | SOD-123, 2 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.84 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Rep Pk Reverse Voltage-Max | 150 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for RB168M150TR
This table gives cross-reference parts and alternative options found for RB168M150TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RB168M150TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| E1CFSF1 | Yangzhou Yangjie Electronics Co Ltd | Check for Price | Rectifier Diode, | RB168M150TR vs E1CFSF1 |
| ES1CLHRQ | Taiwan Semiconductor | Check for Price | Rectifier Diode, 1 Element, 1A, 150V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, SUB SMA, 2 PIN | RB168M150TR vs ES1CLHRQ |
| ES1BLMQ | Taiwan Semiconductor | Check for Price | Rectifier Diode, 1 Element, 1A, 150V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, SUB SMA, 2 PIN | RB168M150TR vs ES1BLMQ |
| EGP10C(Z) | Galaxy Microelectronics | Check for Price | Rectifier Diode, 1 Element, 1A, 150V V(RRM), | RB168M150TR vs EGP10C(Z) |
| ES1BLMQG | Taiwan Semiconductor | Check for Price | Rectifier Diode, 1 Element, 1A, 150V V(RRM), Silicon, GREEN, PLASTIC, SUB SMA, 2 PIN | RB168M150TR vs ES1BLMQG |
| ES1BLRTG | Taiwan Semiconductor | Check for Price | Rectifier Diode, 1 Element, 1A, 150V V(RRM), Silicon, GREEN, PLASTIC, SUB SMA, 2 PIN | RB168M150TR vs ES1BLRTG |
| SMD1150PL-TP-HF | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 1 Element, 1A, 150V V(RRM), | RB168M150TR vs SMD1150PL-TP-HF |
| ES1ALHRF | Taiwan Semiconductor | Check for Price | Rectifier Diode, 1 Element, 1A, 150V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, SUB SMA, 2 PIN | RB168M150TR vs ES1ALHRF |
| ES1CFA | Galaxy Semi-Conductor Co Ltd | Check for Price | Rectifier Diode, | RB168M150TR vs ES1CFA |
| ES1CLH | Taiwan Semiconductor | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 1A, 150V V(RRM), Silicon, SMA, 2 PIN | RB168M150TR vs ES1CLH |
RB168M150TR Frequently Asked Questions (FAQ)
-
The recommended land pattern for the RB168M150TR is a rectangle with a size of 2.5mm x 1.6mm, with a thermal pad size of 1.4mm x 1.4mm. It's essential to follow the recommended land pattern to ensure proper heat dissipation and to prevent thermal issues.
-
To ensure reliability in high-temperature applications, it's crucial to follow the recommended derating curve, keep the junction temperature below 150°C, and ensure proper heat sinking and thermal management. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
-
The maximum allowable power dissipation for the RB168M150TR is 1.5W. However, this value can vary depending on the ambient temperature and the thermal resistance of the system. It's essential to calculate the power dissipation based on the specific application and ensure it's within the recommended limits.
-
While the RB168M150TR is primarily designed for linear applications, it can be used in high-frequency switching applications with some precautions. However, it's essential to consider the device's switching characteristics, such as the transition frequency and the rise/fall times, to ensure it meets the application's requirements.
-
To handle the RB168M150TR's ESD sensitivity, it's essential to follow proper ESD handling procedures, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging. Additionally, ensure that the assembly process is ESD-controlled, and the device is not exposed to static electricity during handling and storage.
