Rocker Switch, SPDT, On-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount,

Part Details for RB143D1100 by E-Switch Inc

Results Overview of RB143D1100 by E-Switch Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RB143D1100 Information

RB143D1100 by E-Switch Inc is a Rocker Switch.
Rocker Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for RB143D1100

Part # Distributor Description Stock Price Buy
DISTI # 71R4429
Newark Rocker Switch, Spdt, 20A, 125Vac, Panel, Switch Operation:On-On, Contact Configuration:Spdt, Illumination:Non Illuminated, Switch Mounting:Panel, Snap-In, Actuator/Cap Colour:Black, Product Range:Rb1 Series, Contact Voltage Vdc:- Rohs Compliant: Yes |E-Switch RB143D1100 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2222
  • 1 $0.6880
  • 10 $0.6880
  • 25 $0.6880
  • 50 $0.6880
  • 100 $0.6880
  • 250 $0.6880
  • 500 $0.6880
  • 1,000 $0.6880
$0.6880 Buy Now
DISTI # EG4747-ND
DigiKey SWITCH ROCKER SPDT 20A 125V Min Qty: 1 Lead time: 13 Weeks Container: Bulk 2526
In Stock
  • 1 $1.6600
  • 10 $1.4330
  • 25 $1.3520
  • 50 $1.2934
  • 100 $1.2373
  • 250 $1.1667
  • 500 $1.1159
  • 1,000 $1.0672
$1.0672 / $1.6600 Buy Now
DISTI # 612-RB143D1100
Mouser Electronics Rocker Switches 20A 11mm x 30mm On-On RoHS: Compliant 3100
  • 1 $1.3600
  • 10 $1.1500
  • 100 $1.0400
  • 500 $0.9990
  • 1,000 $0.9720
  • 2,500 $0.9400
$0.9400 / $1.3600 Buy Now
DISTI # 72095885
RS Rocker Switch, RB1 Series, SPDT, ON-ON, Concave, Black, 20A, 125VAC, .250" QC Min Qty: 1 Package Multiple: 1 Container: Bulk 1390
  • 1 $1.4400
  • 5 $1.3300
  • 10 $1.2700
  • 100 $1.1500
  • 250 $1.0800
$1.0800 / $1.4400 Buy Now
DISTI # 75635004
RS Rocker Switch, RB1 Series, SPDT, ON-ON, Concave, Black, 20A, 125VAC, .250" QC Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Bulk 0
  • 1 $1.6100
$1.6100 RFQ
DISTI # 38618382
Verical Switch Rocker ON ON SPDT Quick Connect Curved Rocker 20A 250VAC 559.27VA Min Qty: 73 Package Multiple: 1 Americas - 2222
  • 73 $1.3250
$1.3250 Buy Now
DISTI # 69080460
Verical Switch Rocker ON ON SPDT Quick Connect Curved Rocker 20A 250VAC 559.27VA Min Qty: 50 Package Multiple: 25 Date Code: 2322 Americas - 1225
  • 50 $1.5470
  • 250 $1.2727
  • 500 $1.2194
  • 1,000 $1.1713
  • 2,500 $1.1258
$1.1258 / $1.5470 Buy Now
DISTI # RB143D1100
TME ROCKER, SPDT, Pos: 2, ON-ON, 16A/250VAC, black, RB1, Rcont max: 20mΩ Min Qty: 3000 0
  • 3,000 $1.0200
$1.0200 RFQ
Master Electronics Rocker Switch - SPDT - On-On - 20A, 125VAC - Black Concave (Curved) Actuator Without Marking - Quick Connect 0.250" (6.3mm). RoHS: Compliant 1235 In Stock
  • 25 $1.1900
  • 250 $0.9790
  • 500 $0.9380
  • 1,000 $0.9010
  • 2,500 $0.8660
  • 5,000 $0.7460
  • 7,500 $0.7350
  • 10,000 $0.7150
$0.7150 / $1.1900 Buy Now

Part Details for RB143D1100

RB143D1100 Part Data Attributes

Parametric Data
RB143D1100 E-Switch Inc
Buy Now Datasheet
Compare Parts:

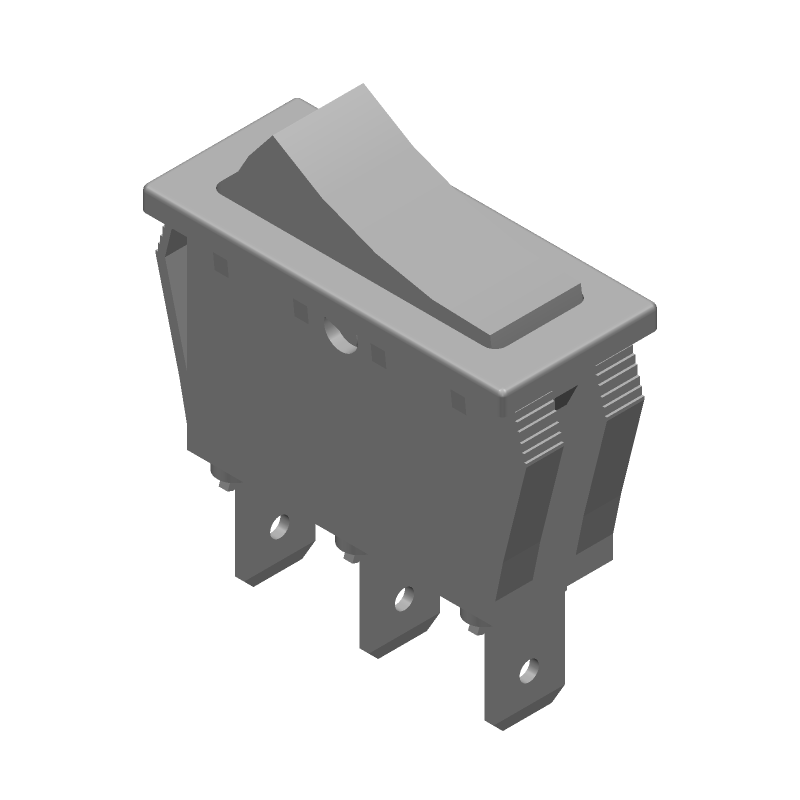

RB143D1100 E-Switch Inc Rocker Switch, SPDT, On-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount,
