Switches / Rocker Switches / RA812C1121
Datasheets
RA812C1121 by:

Rocker Switch

Part Details for RA812C1121 by E-Switch Inc

Results Overview of RA812C1121 by E-Switch Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RA812C1121 Information

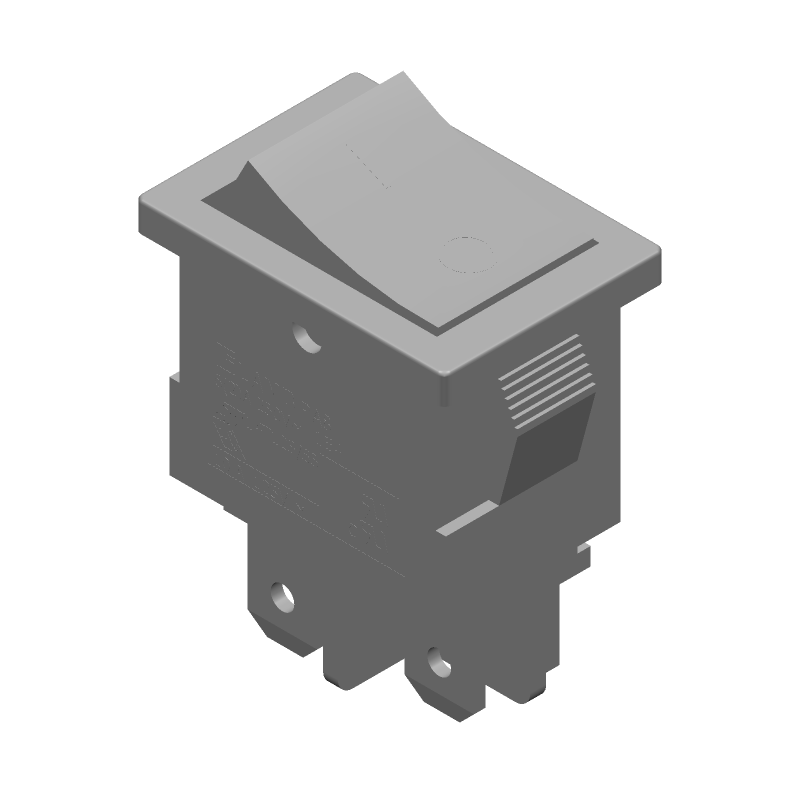

RA812C1121 by E-Switch Inc is a Rocker Switch.
Rocker Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for RA812C1121

Part # Distributor Description Stock Price Buy
DISTI # 24R3688
Newark Rocker Switch, Dpst, 16A, 125Vac, Panel, Switch Operation:Off-On, Contact Configuration:Dpst, Illumination:Non Illuminated, Switch Mounting:Panel, Snap-In, Actuator/Cap Colour:Black, Product Range:Ra8 Series, Contact Voltage Vdc:- Rohs Compliant: Yes |E-Switch RA812C1121 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $1.3300
  • 5,000 $1.1700
  • 10,000 $1.1000
$1.1000 / $1.3300 Buy Now
DISTI # EG5633-ND
DigiKey SWITCH ROCKER DPST 16A 125V Min Qty: 1 Lead time: 11 Weeks Container: Bulk 3855
In Stock
  • 1 $1.5100
  • 10 $1.3070
  • 25 $1.2324
  • 50 $1.1790
  • 100 $1.1278
  • 300 $1.0511
  • 500 $1.0172
  • 1,000 $0.9729
$0.9729 / $1.5100 Buy Now
DISTI # 612-RA812C1121
Mouser Electronics Rocker Switches 16A 125VAC 4.8mm Tab Off-On 2 Pole RoHS: Compliant 3812
  • 1 $1.4600
  • 10 $1.1600
  • 100 $1.0300
  • 500 $0.9890
  • 1,000 $0.9660
$0.9660 / $1.4600 Buy Now
DISTI # 72100947
RS Rocker Switch, RA8 Series, SPST, ON-OFF, Concave, Black,"I/O" Vert.,16A,125VAC, QC Min Qty: 4000 Package Multiple: 1 Container: Bulk 0
  • 4,000 $3.1000
  • 20,000 $2.8600
  • 40,000 $2.7300
  • 80,000 $2.4900
  • 400,000 $2.3200
$2.3200 / $3.1000 RFQ
DISTI # ESWRA812C1121
Heilind Electronics 38-RA812C1121 Americas - 1852 in Stock
  • 100 $1.1915
  • 200 $0.9825
  • 500 $0.9492
  • 900 $0.9333
  • 1,800 $0.9180
$0.9180 / $1.1915 Buy Now
DISTI # 87260362
Verical Switch Rocker OFF ON DPST Quick Connect Curved Rocker 16A 250VAC 248.57VA 100000Cycles Min Qty: 51 Package Multiple: 1 Americas - 641
  • 51 $1.4052
  • 100 $1.1052
$1.1052 / $1.4052 Buy Now
DISTI # RA812C1121
TME ROCKER, DPST, Pos: 2, OFF-ON, 10A/250VAC, black, RA8, Rcont max: 35mΩ Min Qty: 1 1415
  • 1 $1.3000
  • 10 $1.0800
  • 100 $0.9800
  • 500 $0.9100
  • 1,000 $0.8900
$0.8900 / $1.3000 Buy Now
DISTI # ESWRA812C1121
Interstate Connecting Components 38-RA812C1121 617
  • 100 $1.1915
  • 200 $0.9825
  • 500 $0.9492
  • 900 $0.9333
  • 1,800 $0.9180
$0.9180 / $1.1915 Buy Now
Master Electronics Rocker Switch - DPST - 16A - 125VAC - Black Concave (Curved) Actuator - Non-Illuminated - "O -" Marking - 0.187" (4.7mm) Quick Connect - Snap-In - Panel Mount. RoHS: Compliant 5000 In Stock
  • 100 $1.0210
  • 300 $0.9630
  • 500 $0.9230
  • 1,000 $0.9030
  • 2,500 $0.8960
  • 5,000 $0.8910
  • 7,500 $0.8870
  • 10,000 $0.8820
$0.8820 / $1.0210 Buy Now

Part Details for RA812C1121

RA812C1121 Part Data Attributes

Parametric Data
RA812C1121 E-Switch Inc
Buy Now Datasheet
Compare Parts:
RA812C1121 E-Switch Inc Rocker Switch
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer E-SWITCH INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Samacsys Manufacturer E-Switch
Actuator Color BLACK
Actuator Length 0.21 inch
Actuator Type ROCKER
Additional Feature CUL; UL
Body Breadth 15 mm
Body Color BLACK
Body Height 21.9 mm
Body Length or Diameter 21 mm
Contact (AC) Max Rating R Load 16A@125VAC
Contact Current(AC)-Max 16 A
Contact Function OFF-ON
Contact Resistance 0.035 mΩ
Contact Voltage(AC)-Max 125 V
Dielectric Withstand Volts 1500VAC V
Electrical Life 10000 Cycle(s)
Insulation Resistance 500000000 Ω
Mounting Feature PANEL MOUNT
Operating Temperature-Max 105 °C
Operating Temperature-Min -20 °C
Surface Mount NO
Switch Action MOMENTARY
Switch Function DPST
Switch Type ROCKER SWITCH
Terminal Length 0.325 inch
Termination Type SOLDER

RA812C1121 Related Parts

RA812C1121 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 250°C (482°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the switch.

  • Use a soft brush or lint-free cloth to gently remove any debris or dust from the switch. Avoid using harsh chemicals or solvents, as they may damage the switch's components. Instead, use a mild soap solution and distilled water for cleaning.

  • Store the switches in their original packaging or a similar ESD-protective container. Avoid exposing the switches to extreme temperatures, humidity, or physical stress. Handle the switches by the edges or body, avoiding direct contact with the electrical contacts.

  • While the RA812C1121 is designed to withstand normal operating conditions, it's essential to evaluate the switch's performance in your specific application. Consider the switch's mechanical durability and electrical reliability in high-vibration or high-shock environments. You may need to add additional mechanical support or consider a more ruggedized switch option.

  • The RA812C1121 has a specified actuation force of 1.2 N (0.27 lbf) and travel distance of 0.3 mm (0.012 in). To determine the correct actuation force and travel distance for your application, consider factors such as user interface requirements, ergonomic considerations, and the overall system design.
