R1518S502B-E2-KE Information
R1518S502B-E2-KE by Nisshinbo Micro Devices is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R1518S502B-E2-KE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R1518S502B-E2-KE-ND
|
DigiKey | IC REG LINEAR 5V 1A 6-HSOP-J Min Qty: 1000 Lead time: 30 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.2454 / $1.3262 | Buy Now |
|
DISTI #
R1518S502B-E2-KE
|
Avnet Americas | LOW SUPPLY CURRENT 36V INPUT 1A VOLTAGE REGULATOR - Tape and Reel (Alt: R1518S502B-E2-KE) Min Qty: 1000 Package Multiple: 1000 Container: Reel | 0 |
|
$1.2382 | Buy Now |
|
DISTI #
848-R1518S502B-E2-KE
|
Mouser Electronics | LDO Voltage Regulators 1A 36V Input Low Supply Current LDO for Automotive Applications RoHS: Compliant | 0 |
|
$1.2400 / $3.6800 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$1.2700 / $1.8500 | Buy Now |
Part Details for R1518S502B-E2-KE

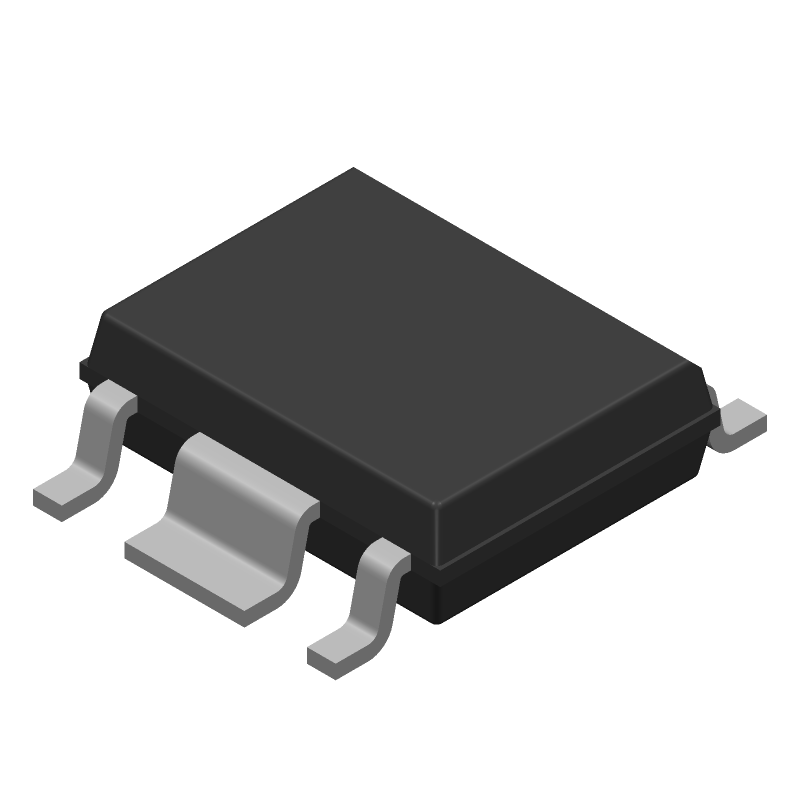

R1518S502B-E2-KE CAD Models
R1518S502B-E2-KE Part Data Attributes
|
|
R1518S502B-E2-KE
Nisshinbo Micro Devices
Buy Now
Datasheet
|
Compare Parts:
R1518S502B-E2-KE
Nisshinbo Micro Devices
Fixed Positive LDO Regulator,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NISSHINBO MICRO DEVICES INC | |
| Package Description | HSOP-6J, 6-PIN | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Nisshinbo | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 1.3 V | |
| Dropout Voltage1-Nom | 0.7 V | |
| Input Voltage Absolute-Max | 50 V | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 5.5 V | |
| JESD-30 Code | R-PDSO-G6 | |
| Length | 5.02 mm | |
| Line Regulation-Max | 0.0305% | |
| Load Regulation-Max | 0.06% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 5.09 V | |
| Output Voltage1-Min | 4.91 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP6,.24,75 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.85 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.905 mm | |
| Terminal Position | DUAL | |
| Voltage Tolerance-Max | 1.8% | |
| Width | 3.9 mm |
R1518S502B-E2-KE Frequently Asked Questions (FAQ)
-
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
-
To ensure the stability of the output voltage, it's essential to follow the recommended capacitor selection and placement guidelines, including using a 10uF ceramic capacitor for CIN and a 22uF ceramic capacitor for COUT, and placing them as close to the IC as possible.
-
The maximum allowable ripple voltage on the input capacitor is 100mV. Exceeding this value may affect the regulator's performance and stability.
-
While the R1518S502B-E2-KE is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management when operating in high-temperature environments to ensure reliable operation.
-
The R1518S502B-E2-KE has built-in overcurrent protection and short-circuit protection. However, it's still recommended to add external protection components, such as fuses or PTC resistors, to prevent damage from excessive current or voltage surges.
