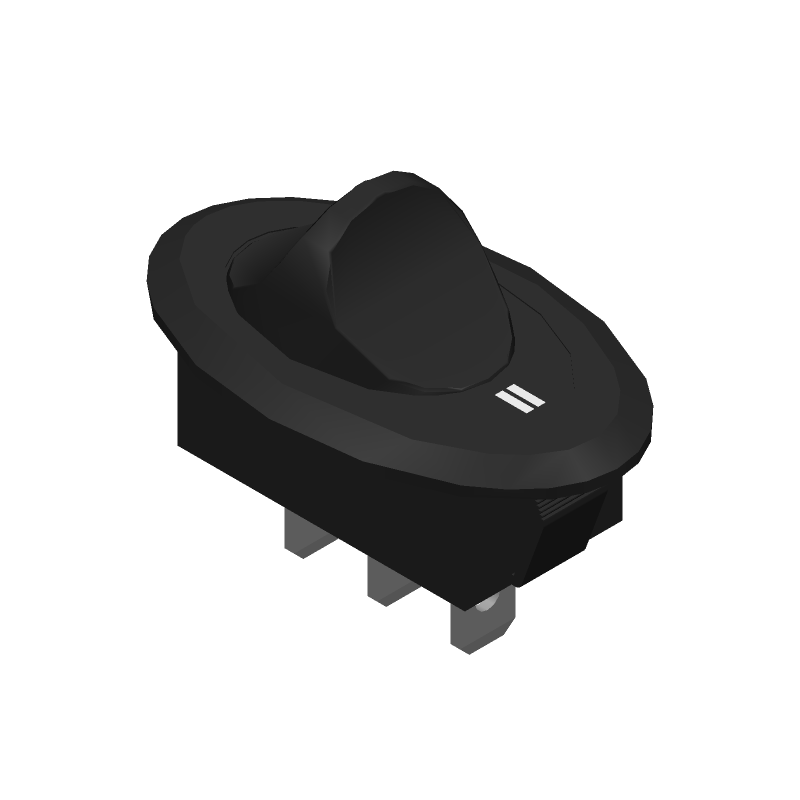

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R13-608C1-02-BB-5A by SPC Multicomp
Results Overview of R13-608C1-02-BB-5A by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
R13-608C1-02-BB-5A Information
R13-608C1-02-BB-5A by SPC Multicomp is a Slide Switch.
Slide Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for R13-608C1-02-BB-5A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
03P2510
|
Newark | Switch, Slide, Spdt, 16A, 125V, Though Hole, Contact Configuration:Spdt, Switch Operation:On-None-On, Switch Mounting:Panel Mount, Product Range:R13 Series, Contact Current Max:16A, Contact Voltage Ac Max:125V, Orientation:Vertical Rohs Compliant: Yes |Multicomp Pro R13-608C1-02-BB-5A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 142 |
|
$0.2510 | Buy Now |
Part Details for R13-608C1-02-BB-5A
R13-608C1-02-BB-5A CAD Models
R13-608C1-02-BB-5A Part Data Attributes
|
|
R13-608C1-02-BB-5A
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
R13-608C1-02-BB-5A
SPC Multicomp
Slide Switch, 1 Positions, SPST, On-on, Quick Connect Terminal, Panel Mount
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Actuator Length | 0.437 inch | |
| Actuator Type | SLIDE | |
| Body Breadth | 13.4874 mm | |
| Body Height | 9.4996 mm | |
| Body Length or Diameter | 27.5082 mm | |
| Contact (AC) Max Power Rating R Load | 0.5HP@250VAC | |
| Contact (AC) Max Rating R Load | 10A@250VAC | |
| Contact Current(AC)-Max | 10 A | |
| Contact Function | ON-ON | |
| Contact Resistance | 0.05 mΩ | |
| Contact Voltage(AC)-Max | 250 V | |
| Dielectric Withstand Volts | 1500VAC V | |
| Insulation Resistance | 100000000 Ω | |
| Mounting Feature | PANEL MOUNT | |
| Number of Positions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Surface Mount | NO | |
| Switch Function | SPST | |
| Terminal Length | 0.327 inch | |
| Termination Type | QUICK CONNECT |
