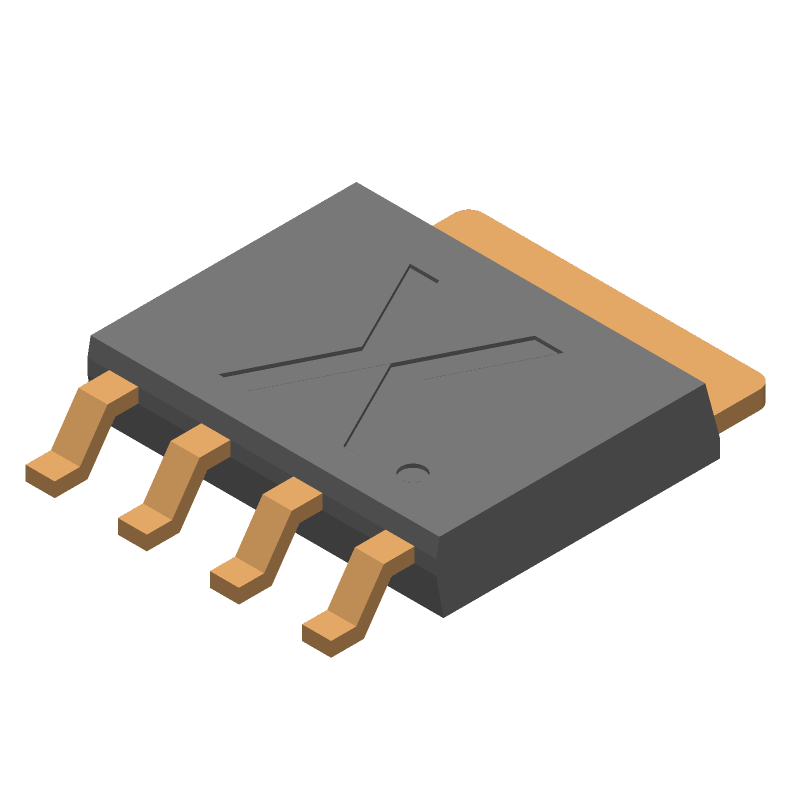

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PSMN045-80YS,115 by Nexperia
Results Overview of PSMN045-80YS,115 by Nexperia
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
PSMN045-80YS,115 Information
PSMN045-80YS,115 by Nexperia is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PSMN045-80YS,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13T9536
|
Newark | Mosfet, n Channel,80V,24A, lfpak, Channel Type:N Channel, Drain Source Voltage Vds:80V, Continuous Drain Current Id:24A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:3V, Product Range:-Rohs Compliant: Yes |Nexperia PSMN045-80YS,115 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 4525 |
|
$0.3150 / $0.6770 | Buy Now |
|
DISTI #
1727-4630-1-ND
|
DigiKey | MOSFET N-CH 80V 24A LFPAK56 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5315 In Stock |
|
$0.2114 / $0.6800 | Buy Now |
|
DISTI #
PSMN045-80YS,115
|
Avnet Americas | Trans MOSFET N-CH 80V 24A 5-Pin(4+Tab) LFPAK T/R - Tape and Reel (Alt: PSMN045-80YS,115) RoHS: Compliant Min Qty: 4500 Package Multiple: 1500 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.1871 / $0.2030 | Buy Now |
|
DISTI #
771-PSMN04580YS115
|
Mouser Electronics | MOSFETs N-channel 100 V, 53 mOhm standard level ASFET with enhanced SOA in DFN2020. Designedfor high power PoE, inrush management, eFuse and relay replacement RoHS: Compliant | 15277 |
|
$0.2150 / $0.6700 | Buy Now |
|
DISTI #
E02:0323_03089719
|
Arrow Electronics | Trans MOSFET N-CH 80V 24A 5-Pin(4+Tab) LFPAK T/R Min Qty: 1500 Package Multiple: 1500 Lead time: 13 Weeks Date Code: 2430 | Europe - 24000 |
|
$0.2159 | Buy Now |
|
DISTI #
V72:2272_06540821
|
Arrow Electronics | Trans MOSFET N-CH 80V 24A 5-Pin(4+Tab) LFPAK T/R Min Qty: 454 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2321 Container: Cut Strips | Americas - 2275 |
|
$0.2180 / $0.2200 | Buy Now |
|
DISTI #
84913272
|
Verical | Trans MOSFET N-CH 80V 24A 5-Pin(4+Tab) LFPAK T/R Min Qty: 1500 Package Multiple: 1500 Date Code: 2430 | Americas - 24000 |
|
$0.2151 | Buy Now |
|
DISTI #
69087898
|
Verical | Trans MOSFET N-CH 80V 24A 5-Pin(4+Tab) LFPAK T/R Min Qty: 454 Package Multiple: 1 Date Code: 2321 | Americas - 2275 |
|
$0.2538 / $0.2914 | Buy Now |
|
|
Future Electronics | PSMN045 Series 80 V 45 mOhm N-Channel Standard Level TrenchMOS Transistor -LFPAK Min Qty: 1500 Package Multiple: 1500 |
4500 null |
|
$0.2100 / $0.2200 | Buy Now |
|
DISTI #
PSMN045-80YS.115
|
TME | Transistor: N-MOSFET, unipolar, 80V, 24A, Idm: 86A, 56W Min Qty: 1 | 0 |
|
$0.2950 / $0.8630 | RFQ |
Part Details for PSMN045-80YS,115
PSMN045-80YS,115 CAD Models
PSMN045-80YS,115 Part Data Attributes
|
|
PSMN045-80YS,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PSMN045-80YS,115
Nexperia
PSMN045-80YS - N-channel LFPAK 80 V 45 mΩ standard level MOSFET@en-us SOIC 4-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOIC | |
| Package Description | LFPAK-4 | |
| Pin Count | 4 | |
| Manufacturer Package Code | SOT669 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Avalanche Energy Rating (Eas) | 18 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 80 V | |
| Drain Current-Max (ID) | 24 A | |
| Drain-source On Resistance-Max | 0.045 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | MO-235 | |
| JESD-30 Code | R-PSSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Pulsed Drain Current-Max (IDM) | 86 A | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
PSMN045-80YS,115 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for PSMN045-80YS,115 is -55°C to 150°C.
-
To ensure safe operating area (SOA) for PSMN045-80YS,115, follow the guidelines in the datasheet for voltage, current, and power dissipation. Additionally, consider the thermal management and heat dissipation in your design.
-
For optimal performance and thermal management, follow Nexperia's recommended PCB layout and thermal design guidelines for PSMN045-80YS,115, which include using a thermal pad, thermal vias, and a heat sink if necessary.
-
To prevent electrostatic discharge (ESD) damage to PSMN045-80YS,115, follow proper ESD handling and storage procedures, and consider adding ESD protection devices in your design.
-
PSMN045-80YS,115 meets the reliability and quality standards of Nexperia, which include compliance with industry standards such as AEC-Q101 and ISO/TS 16949.
