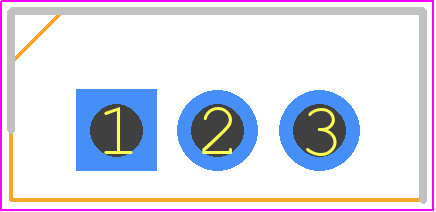

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PSMN012-80PS,127 by Nexperia
Results Overview of PSMN012-80PS,127 by Nexperia
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PSMN012-80PS,127 Information
PSMN012-80PS,127 by Nexperia is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PSMN012-80PS,127
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
PSMN012-80PS,127
|
Avnet Americas | Trans MOSFET N-CH 80V 74A 3-Pin(3+Tab) TO-220AB Tube - Rail/Tube (Alt: PSMN012-80PS,127) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 111 Weeks, 0 Days Container: Tube | 0 |
|
$0.7789 / $0.9155 | Buy Now |
|
DISTI #
86136850
|
Verical | Trans MOSFET N-CH 80V 74A 3-Pin(3+Tab) TO-220AB Rail Min Qty: 289 Package Multiple: 1 Date Code: 2001 | Americas - 1755 |
|
$0.8070 / $1.3000 | Buy Now |
|
DISTI #
86126833
|
Verical | Trans MOSFET N-CH 80V 74A 3-Pin(3+Tab) TO-220AB Rail Min Qty: 289 Package Multiple: 1 Date Code: 1801 | Americas - 887 |
|
$0.8070 / $1.3000 | Buy Now |
|
|
Rochester Electronics | PSMN012-80PS - 74A, 80V, N-Channel Power MOSFET, TO-220AB RoHS: Compliant Status: Active Min Qty: 1 | 2642 |
|
$0.6456 / $1.0400 | Buy Now |
|
DISTI #
PSMN012-80PS.127
|
TME | Transistor: N-MOSFET, unipolar, 80V, 52A, Idm: 295A, 148W Min Qty: 1 | 4558 |
|
$0.9700 / $1.5800 | Buy Now |
Part Details for PSMN012-80PS,127
PSMN012-80PS,127 CAD Models
PSMN012-80PS,127 Part Data Attributes
|
|
PSMN012-80PS,127
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PSMN012-80PS,127
Nexperia
PSMN012-80PS - N-channel 80 V 11 mΩ standard level MOSFET@en-us TO-220 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TO-220 | |
| Package Description | SC-46, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT78 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Avalanche Energy Rating (Eas) | 100 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 80 V | |
| Drain Current-Max (ID) | 74 A | |
| Drain-source On Resistance-Max | 0.011 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | N-CHANNEL | |
| Pulsed Drain Current-Max (IDM) | 295 A | |
| Surface Mount | NO | |
| Terminal Finish | TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
