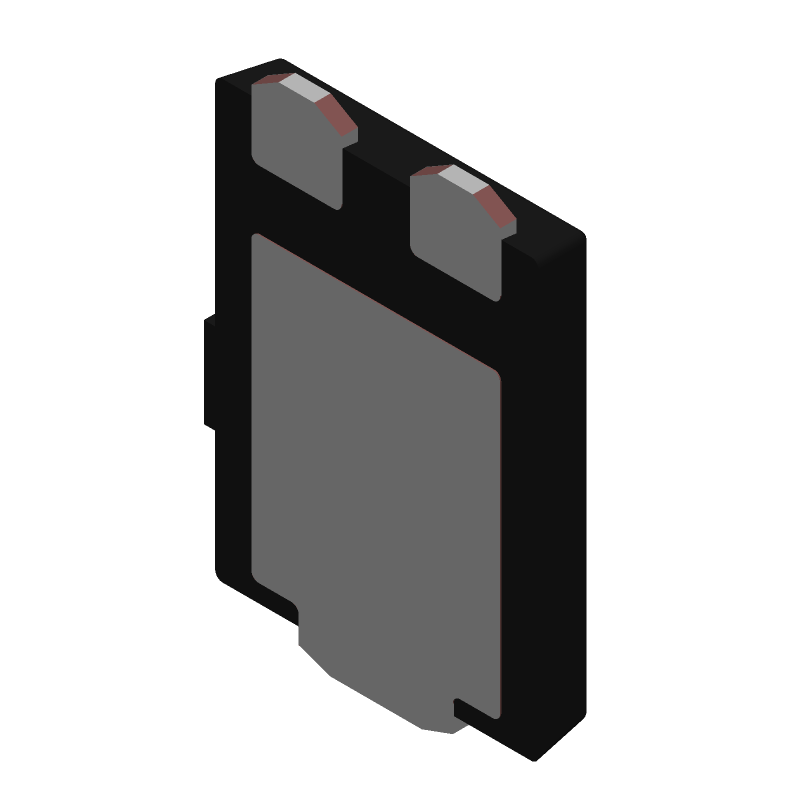

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PMEG100V080ELPDZ by Nexperia
Results Overview of PMEG100V080ELPDZ by Nexperia
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
PMEG100V080ELPDZ Information
PMEG100V080ELPDZ by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PMEG100V080ELPDZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
82Y7169
|
Newark | Schottky Rectifier, Aec-Q101, 8A, 100V, Repetitive Reverse Voltage Vrrm Max:-, Forward Current If(Av):8A, Diode Configuration:Single, Diode Case Style:Sot-1289, No. Of Pins:3Pins, Forward Voltage Vf Max:850Mv, Forward Surge Current Rohs Compliant: Yes |Nexperia PMEG100V080ELPDZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2105 |
|
$0.2320 / $0.5800 | Buy Now |
|
DISTI #
1727-2692-1-ND
|
DigiKey | DIODE SCHOTTKY 100V 8A CFP15 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
13937 In Stock |
|
$0.1713 / $0.5900 | Buy Now |
|
DISTI #
PMEG100V080ELPDZ
|
Avnet Americas | Diode Schottky Barrier Rectifier 100V 8A 3-Pin CFP-15 - Tape and Reel (Alt: PMEG100V080ELPDZ) RoHS: Compliant Min Qty: 4500 Package Multiple: 1500 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.1484 / $0.1617 | Buy Now |
|
DISTI #
771-PMEG100V080ELPDZ
|
Mouser Electronics | Schottky Diodes & Rectifiers 100 V, 8 A low leakage current Schottky barrier rectifier RoHS: Compliant | 268019 |
|
$0.2120 / $0.5800 | Buy Now |
|
DISTI #
V79:2366_26936464
|
Arrow Electronics | Diode Schottky 8A 3-Pin(2+Tab) CFP15 T/R Automotive AEC-Q101 Min Qty: 514 Package Multiple: 1 Date Code: 2216 | Americas - 515 |
|
$0.1916 | Buy Now |
|
DISTI #
86012428
|
Verical | Diode Schottky 8A 3-Pin(2+Tab) CFP15 T/R Automotive AEC-Q101 Min Qty: 1731 Package Multiple: 1 Date Code: 2201 | Americas - 28500 |
|
$0.1619 / $0.2168 | Buy Now |
|
DISTI #
62529882
|
Verical | Diode Schottky 8A 3-Pin(2+Tab) CFP15 T/R Automotive AEC-Q101 Min Qty: 514 Package Multiple: 1 Date Code: 2216 | Americas - 515 |
|
$0.2284 | Buy Now |
|
DISTI #
87168814
|
Verical | Diode Schottky 8A 3-Pin(2+Tab) CFP15 T/R Automotive AEC-Q101 Min Qty: 146 Package Multiple: 1 Date Code: 2216 | Americas - 198 |
|
$0.3160 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE, SCHOTTKY, 1 PHASE, 1 ELEMENT, 100V V(RRM), SILICON | 1854 |
|
$0.1433 / $0.3438 | Buy Now |
|
|
Rochester Electronics | PMEG100V080ELPD - 100 V, 8 A low leakage current Schottky barrier rectifier RoHS: Compliant Status: Active Min Qty: 1 | 28500 |
|
$0.1295 / $0.2089 | Buy Now |
Part Details for PMEG100V080ELPDZ
PMEG100V080ELPDZ CAD Models
PMEG100V080ELPDZ Part Data Attributes
|
|
PMEG100V080ELPDZ
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PMEG100V080ELPDZ
Nexperia
PMEG100V080ELPD - 100 V, 8 A low leakage current Schottky barrier rectifier@en-us DFP 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | DFP | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT1289 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Application | EFFICIENCY | |
| Breakdown Voltage-Min | 100 V | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.85 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 160 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 1.66 W | |
| Reference Standard | IEC-60134 | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 0.5 µA | |
| Reverse Recovery Time-Max | 0.01 µs | |
| Reverse Test Voltage | 100 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for PMEG100V080ELPDZ
This table gives cross-reference parts and alternative options found for PMEG100V080ELPDZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PMEG100V080ELPDZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PMEG100V080ELPD | Nexperia | Check for Price | Rectifier Diode | PMEG100V080ELPDZ vs PMEG100V080ELPD |
| SDM8M100P5-13 | Diodes Incorporated | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, | PMEG100V080ELPDZ vs SDM8M100P5-13 |
PMEG100V080ELPDZ Frequently Asked Questions (FAQ)
-
A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the device, and to use thermal vias to dissipate heat to the other layers of the PCB.
-
To ensure reliable operation at high temperatures, it is recommended to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities at high temperatures.
-
Exceeding the maximum junction temperature can lead to reduced lifespan, decreased performance, and potentially even device failure. It is essential to ensure that the device operates within the recommended temperature range.
-
Yes, the PMEG100V080ELPDZ is a high-reliability device suitable for use in demanding applications. However, it is essential to follow the recommended operating conditions and ensure proper design and testing to ensure reliability.
-
To prevent ESD damage, it is recommended to follow standard ESD handling and assembly procedures, such as using ESD-protective packaging, wrist straps, and mats, and ensuring that all equipment is properly grounded.
