PLED6UQ12 Information
PLED6UQ12 by Littelfuse Inc is a Silicon Surge Protector.
Silicon Surge Protectors are under the broader part category of Trigger Devices.
Trigger devices initiate or control actions in electronic circuits by producing output signals when specific input conditions are met. They are commonly used in timing circuits and pulse generators. Read more about Trigger Devices on our Trigger Devices part category page.
Price & Stock for PLED6UQ12
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
20X9254
|
Newark | Led Protector, Uni-Dir, 6V, Qfn-2, Product Range:Pled Unidirectional Series (Pledxxux Series), On State Voltage Max (Vt):1.2V, On State Current Max:1A, Led Shunt Case Style:Qfn, No. Of Pins:2Pins, Operating Temperature Min:-40°C Rohs Compliant: Yes |Littelfuse PLED6UQ12 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 21 |
|
$0.2890 | Buy Now |
|
DISTI #
F6298CT-ND
|
DigiKey | LIGHT PROTECT LED SHUNT 6V SMD Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1001 In Stock |
|
$0.3412 / $1.4800 | Buy Now |
|
DISTI #
576-PLED6UQ12
|
Mouser Electronics | LED Protection Devices Uni 6V 3X3 2L RoHS: Compliant | 8967 |
|
$0.3410 / $1.2100 | Buy Now |
|
|
Bristol Electronics | Min Qty: 6 | 140 |
|
$0.3516 / $0.9375 | Buy Now |
|
|
Quest Components | 112 |
|
$0.3750 / $1.2500 | Buy Now | |
|
DISTI #
PLED6UQ12
|
IBS Electronics | PLED6UQ12 by LITTELFUSE INC. is a LED protector designed for 12V systems, offering overvoltage protection, low clamping voltage, and high surge capability, ideal for automotive and industrial applications. Min Qty: 5000 Package Multiple: 1 | 0 |
|
$0.4160 / $0.4290 | Buy Now |
Part Details for PLED6UQ12

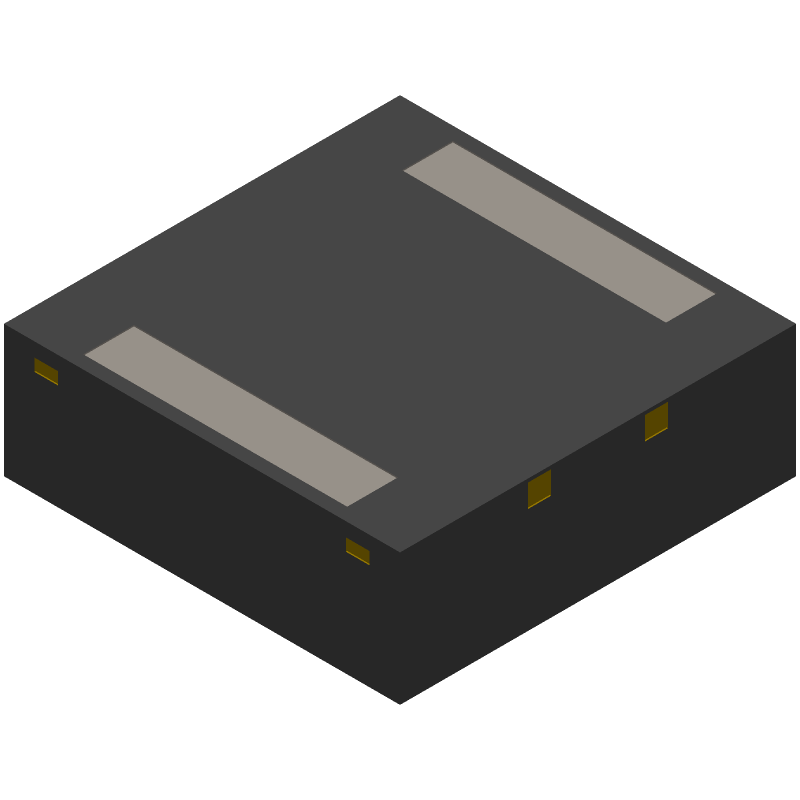

PLED6UQ12 CAD Models
PLED6UQ12 Part Data Attributes
|
|
PLED6UQ12
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
PLED6UQ12
Littelfuse Inc
Silicon Surge Protector,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | LITTELFUSE | |
| JESD-609 Code | e3 | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Terminal Finish | Matte Tin (Sn) | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Trigger Device Type | SILICON SURGE PROTECTOR |
PLED6UQ12 Frequently Asked Questions (FAQ)
-
A good PCB layout for PLED6UQ12 should ensure minimal lead inductance, use a solid ground plane, and keep the device away from high-frequency noise sources. A 4-layer PCB with a dedicated ground plane and a separate power plane is recommended.
-
To select the correct fuse rating, consider the maximum current rating of your circuit, the voltage rating, and the fault current rating. Also, ensure the fuse's melting I²t value is compatible with your circuit's energy storage capabilities.
-
While PLED6UQ12 has a high operating temperature range (-40°C to 125°C), it's essential to consider the derating factors for temperature, voltage, and current. Ensure your application stays within the recommended operating conditions to maintain reliability and performance.
-
PLED6UQ12 is designed to operate within a specific voltage range (12V). In overvoltage conditions, the device may experience increased power dissipation, and in undervoltage conditions, it may not function correctly. Implement overvoltage protection (OVP) and undervoltage protection (UVP) circuits to ensure safe operation.
-
PLED6UQ12 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and installation. Ensure your PCB design includes ESD protection components, such as TVS diodes, and follow recommended ESD-safe handling practices.
