Microcontrollers and Processors / Microcontrollers / PIC18F24K40-I/ML
Datasheets
PIC18F24K40-I/ML by: Microchip Technology Inc

RISC MICROCONTROLLER

Part Details for PIC18F24K40-I/ML by Microchip Technology Inc

Results Overview of PIC18F24K40-I/ML by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

PIC18F24K40-I/ML Information

PIC18F24K40-I/ML by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F24K40-I/ML

Part # Distributor Description Stock Price Buy
DISTI # 98Y9234
Newark 16Kb Flash, 1Kb Ram, 256B Eeprom, 10-Bit Adc2, 5-Bit Dac, Comp, Pwm, Ccp, Cwg, Hlt, Wwdt, Scan/Crc, Zcd, Pps, Eusart, Spi/I2C, Idle/Doze/Pmd 28 Qfn 6X6X0.9Mm Tube Rohs Compliant: Yes |Microchip PIC18F24K40-I/ML RoHS: Compliant Min Qty: 549 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.3000
$1.3000 Buy Now
DISTI # PIC18F24K40-I/ML
Avnet Americas LOW NOISE 212.5MHZ FIBRE CHANNEL LVPECL CLK SYN - Rail/Tube (Alt: PIC18F24K40-I/ML) RoHS: Compliant Min Qty: 488 Package Multiple: 61 Lead time: 7 Weeks, 0 Days Container: Tube 0
  • 1 $1.5100
  • 25 $1.4000
  • 100 $1.2600
$1.2600 / $1.5100 Buy Now
DISTI # 579-PIC18F24K40-I/ML
Mouser Electronics 8-bit Microcontrollers - MCU 16KB Flash, 1KB RAM, 256B EEPROM, 10-bit ADC2, 5-bit DAC, Comp, PWM, CCP, CWG, HLT, WWDT, SCAN/CRC, ZCD, PPS, EUSART, SPI/I2C, IDLE/DOZE/PMD RoHS: Compliant 472
  • 1 $1.5100
  • 25 $1.4000
  • 100 $1.2600
$1.2600 / $1.5100 Buy Now
DISTI # V99:2348_14665928
Arrow Electronics MCU 8-bit PIC RISC 16KB Flash 3.3V/5V 28-Pin QFN EP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2245 Americas - 283
  • 0 $1.3634
  • 1 $0.5635
$0.5635 / $1.3634 Buy Now
Onlinecomponents.com MCU 8-bit PIC18 PIC RISC 16KB Flash 3.3V/5V 28-Pin QFN EP Tube RoHS: Compliant 244 In Stock
2013 Factory Stock
  • 25 $2.0200
  • 50 $1.9900
  • 100 $1.9600
  • 138 $1.9300
  • 275 $1.4500
  • 412 $1.3600
  • 549 $1.3300
$1.3300 / $2.0200 Buy Now
DISTI # 66432731
Verical MCU 8-bit PIC RISC 16KB Flash 3.3V/5V 28-Pin QFN EP Tube RoHS: Compliant Min Qty: 25 Package Multiple: 25 Date Code: 2305 Americas - 225
  • 25 $2.6260
  • 50 $2.5870
  • 100 $2.5480
  • 150 $2.5090
  • 275 $1.8850
$1.8850 / $2.6260 Buy Now
DISTI # PIC18F24K40-I/ML
TME IC: PIC microcontroller, 16kB, 64MHz, I2C,LIN,SPI,UART, SMD, QFN28 Min Qty: 1 0
  • 1 $1.5700
  • 5 $1.4800
  • 25 $1.4400
  • 122 $1.3900
$1.3900 / $1.5700 RFQ
NAC 16KB Flash, 1KB RAM, 256B EEPROM, 10-bit ADC2, 5-bit DAC, Comp, PWM, CCP, CWG, HLT, WWDT, SCAN/CRC, ZCD, PPS, EUSART, SPI/I2C, IDLE/DOZE/PMD - Package: 28 QFN 6x6x0.9mm TUBE RoHS: Compliant Min Qty: 244 Package Multiple: 61 Container: Tube 0
  • 1 $1.6300
  • 100 $1.4700
  • 500 $1.3600
  • 1,000 $1.3200
$1.3200 / $1.6300 Buy Now
DISTI # PIC18F24K40-I/ML
Avnet Silica LOW NOISE 2125MHZ FIBRE CHANNEL LVPECL CLK SYN (Alt: PIC18F24K40-I/ML) RoHS: Compliant Min Qty: 61 Package Multiple: 61 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC18F24K40-I/ML
EBV Elektronik (Alt: PIC18F24K40-I/ML) RoHS: Compliant Min Qty: 61 Package Multiple: 61 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 8-bit PIC18 PIC RISC 16KB Flash 3.3V/5V 28-Pin QFN EP Tube RoHS: Compliant 244 In Stock
2013 Factory Stock
  • 25 $2.0200
  • 50 $1.9900
  • 100 $1.9600
  • 138 $1.9300
  • 275 $1.4500
  • 412 $1.3600
  • 549 $1.3300
$1.3300 / $2.0200 Buy Now

Part Details for PIC18F24K40-I/ML

PIC18F24K40-I/ML CAD Models

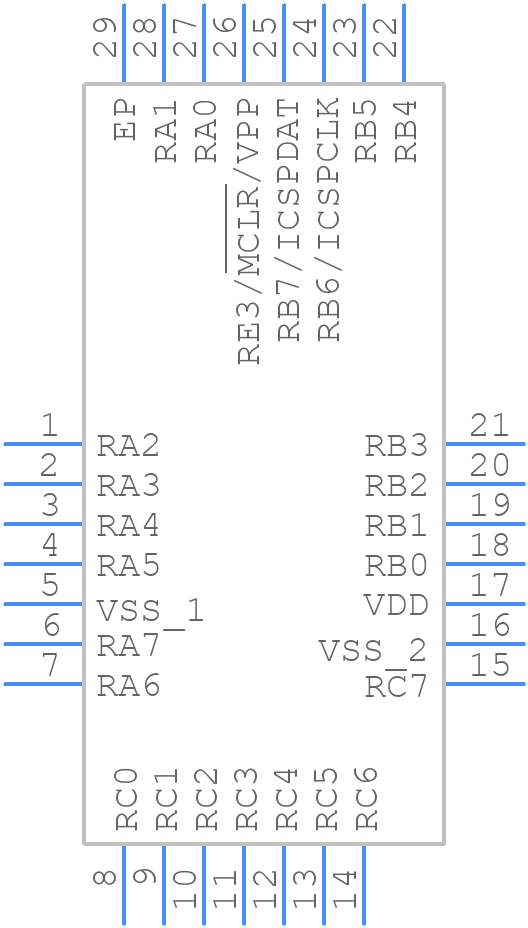

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F24K40-I/ML Part Data Attributes

Parametric Data
PIC18F24K40-I/ML Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F24K40-I/ML Microchip Technology Inc RISC MICROCONTROLLER
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Date Of Intro 2016-09-15
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature IT OPERATES AT 2.5V AT 16MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC18
Clock Frequency-Max 64 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-N28
JESD-609 Code e3
Length 6 mm
Low Power Mode YES
Number of DMA Channels
Number of External Interrupts 3
Number of I/O Lines 25
Number of Serial I/Os 1
Number of Terminals 28
Number of Timers 4
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC28,.24SQ,25
Package Shape SQUARE
Package Style CHIP CARRIER, VERY THIN PROFILE, HEAT SINK/SLUG
RAM (bytes) 1024
RAM (words) 1024
ROM (words) 8192
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1 mm
Speed 64 MHz
Supply Current-Max 9.5 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.65 mm
Terminal Position QUAD
Width 6 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC18F24K40-I/ML

This table gives cross-reference parts and alternative options found for PIC18F24K40-I/ML. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC18F24K40-I/ML, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC18F24K40T-E/ML Microchip Technology Inc Check for Price RISC Microcontroller PIC18F24K40-I/ML vs PIC18F24K40T-E/ML
Part Number Manufacturer Composite Price Description Compare
PIC18LF24K40-I/SS Microchip Technology Inc $1.3996 RISC MICROCONTROLLER PIC18F24K40-I/ML vs PIC18LF24K40-I/SS
PIC18F24K40-I/SS Microchip Technology Inc $1.4234 RISC MICROCONTROLLER PIC18F24K40-I/ML vs PIC18F24K40-I/SS
PIC18LF24K40-E/SS Microchip Technology Inc $1.5035 RISC MICROCONTROLLER PIC18F24K40-I/ML vs PIC18LF24K40-E/SS
PIC18F24K40-E/SS Microchip Technology Inc $1.5057 RISC MICROCONTROLLER PIC18F24K40-I/ML vs PIC18F24K40-E/SS
PIC18LF24K40-E/ML Microchip Technology Inc $1.5058 RISC MICROCONTROLLER PIC18F24K40-I/ML vs PIC18LF24K40-E/ML
PIC18LF24K40-E/MV Microchip Technology Inc $1.5277 RISC MICROCONTROLLER PIC18F24K40-I/ML vs PIC18LF24K40-E/MV
PIC18F24K40-E/SO Microchip Technology Inc $1.5806 RISC MICROCONTROLLER PIC18F24K40-I/ML vs PIC18F24K40-E/SO
PIC18F24K40T-I/SO Microchip Technology Inc $1.5929 RISC MICROCONTROLLER PIC18F24K40-I/ML vs PIC18F24K40T-I/SO
PIC18LF24K40T-I/SO Microchip Technology Inc $1.6586 RISC MICROCONTROLLER PIC18F24K40-I/ML vs PIC18LF24K40T-I/SO
PIC18F24K40-E/P301 Microchip Technology Inc Check for Price RISC Microcontroller PIC18F24K40-I/ML vs PIC18F24K40-E/P301

PIC18F24K40-I/ML Related Parts

PIC18F24K40-I/ML Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC18F24K40-I/ML is 64 MHz.

  • The PIC18F24K40-I/ML has 24 KB of flash memory.

  • Yes, the PIC18F24K40-I/ML can operate at 5V, but it is recommended to operate at 3.3V for optimal performance and power consumption.

  • No, the PIC18F24K40-I/ML does not have built-in USB support. However, it can be implemented using bit-banging or using an external USB controller.

  • The PIC18F24K40-I/ML can source up to 25 mA and sink up to 25 mA on its I/O pins.
