PIC16LF1825-I/ST by: Microchip Technology Inc

8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO14, 4.40 MM, PLASTIC, TSSOP-14

Part Details for PIC16LF1825-I/ST by Microchip Technology Inc

Results Overview of PIC16LF1825-I/ST by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC16LF1825-I/ST Information

PIC16LF1825-I/ST by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16LF1825-I/ST

Part # Distributor Description Stock Price Buy
DISTI # 82R4395
Newark Microcontroller Mcu, 8 Bit, Pic16, 32Mhz, Tssop-14, Product Range:Pic16 Family Pic16Lf182X Series Microcontrollers, Device Core:Pic16, Operating Frequency Max:32Mhz, Program Memory Size:14Kb, No. Of Pins:14Pins, No. Of I/O S:12I/O S Rohs Compliant: Yes |Microchip PIC16LF1825-I/ST RoHS: Compliant Min Qty: 480 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 192 $1.4300
$1.4300 Buy Now
DISTI # PIC16LF1825-I/ST-ND
DigiKey IC MCU 8BIT 14KB FLASH 14TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Tube 1152
In Stock
  • 1 $1.7300
  • 25 $1.5900
  • 100 $1.4300
$1.4300 / $1.7300 Buy Now
DISTI # PIC16LF1825-I/ST
Avnet Americas 8 Bit MCU, PIC16 Family PIC16LF182x Series Microcontrollers, PIC16, 32 MHz, 14 KB, 14 Pins, TSSOP - Rail/Tube (Alt: PIC16LF1825-I/ST) RoHS: Compliant Min Qty: 480 Package Multiple: 96 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 1 $1.7300
  • 25 $1.5900
  • 100 $1.4300
$1.4300 / $1.7300 Buy Now
DISTI # 579-PIC16LF1825-I/ST
Mouser Electronics 8-bit Microcontrollers - MCU 14KB FL 1KBRAM 32MHz 12I/0 Enhanced XLP RoHS: Compliant 489
  • 1 $1.7300
  • 25 $1.5900
  • 96 $1.4300
  • 288 $1.4200
$1.4200 / $1.7300 Buy Now
DISTI # E54:1762_03266972
Arrow Electronics MCU 8-bit PIC RISC 14KB Flash 3V 14-Pin TSSOP Tube RoHS: Compliant Min Qty: 480 Package Multiple: 96 Lead time: 6 Weeks Date Code: 2348 Europe - 3072
  • 480 $1.2910
$1.2910 Buy Now
DISTI # PIC16LF1825-I/ST
Microchip Technology Inc 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc. 12 I/O, TSSOP, Projected EOL: 2034-12-27 COO: Malaysia, Philippines, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 7585

Alternates Available
  • 1 $1.7300
  • 25 $1.5900
  • 100 $1.4300
  • 1,000 $1.3100
  • 5,000 $1.2600
$1.2600 / $1.7300 Buy Now
DISTI # 70451683
RS MCU 8-bit PIC16 PIC RISC 14KB Flash 2.5V/3.3V 14-Pin TSSOP Min Qty: 480 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 480 $1.6600
$1.6600 RFQ
Onlinecomponents.com MCU 8-bit PIC16 PIC RISC 14KB Flash 2.5V/3.3V 14-Pin TSSOP Tube RoHS: Compliant 7584 Factory Stock
  • 120 $2.2000
  • 240 $1.6500
  • 360 $1.5400
  • 480 $1.5100
$1.5100 / $2.2000 Buy Now
DISTI # 80321559
Verical MCU 8-bit PIC RISC 14KB Flash 3V 14-Pin TSSOP Tube RoHS: Compliant Min Qty: 480 Package Multiple: 480 Date Code: 2348 Americas - 2880
  • 480 $1.2910
$1.2910 Buy Now
DISTI # PIC16LF1825-I/ST
IBS Electronics MICROCHIP PIC16LF1825-I/ST 8BIT PIC MICROCONTROLLER 32MHZ 8K WORDS FLASH 14-PIN TSSOP Min Qty: 480 Package Multiple: 1 0
  • 480 $1.9110
$1.9110 Buy Now
NAC 14 KB Flash, 1K bytes RAM, 32 MHz Int. Osc, 12 I/0, Enhanced Mid Range Core, nanoWatt XLP - Package: 14 TSSOP 4.4mm TUBE RoHS: Compliant Min Qty: 288 Package Multiple: 96 Container: Tube 0
  • 1 $1.8900
  • 100 $1.7100
  • 500 $1.5800
  • 1,000 $1.5400
$1.5400 / $1.8900 Buy Now
DISTI # PIC16LF1825-I/ST
Avnet Silica 8 Bit MCU PIC16 Family PIC16LF182x Series Microcontrollers PIC16 32 MHz 14 KB 14 Pins TSSOP (Alt: PIC16LF1825-I/ST) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16LF1825-I/ST
EBV Elektronik 8 Bit MCU PIC16 Family PIC16LF182x Series Microcontrollers PIC16 32 MHz 14 KB 14 Pins TSSOP (Alt: PIC16LF1825-I/ST) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 8-bit PIC16 PIC RISC 14KB Flash 2.5V/3.3V 14-Pin TSSOP Tube RoHS: Compliant 7584 Factory Stock
  • 120 $2.2000
  • 240 $1.6500
  • 360 $1.5400
  • 480 $1.5100
$1.5100 / $2.2000 Buy Now
Win Source Electronics 14/20-Pin Flash Microcontrollers with nanoWatt XLP Technology 30000
  • 26 $2.2660
  • 63 $1.8593
  • 97 $1.8013
  • 133 $1.7431
  • 172 $1.6851
  • 230 $1.5107
$1.5107 / $2.2660 Buy Now

Part Details for PIC16LF1825-I/ST

PIC16LF1825-I/ST CAD Models

  • Part Symbol

    Part Symbol

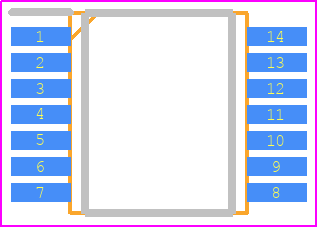

  • Footprint

    footprint

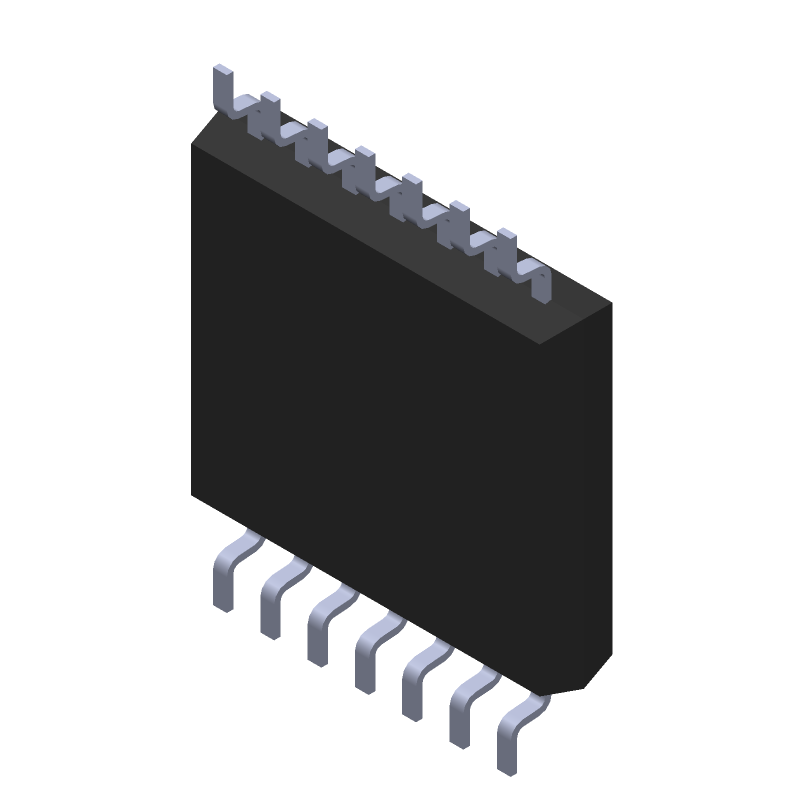

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16LF1825-I/ST Part Data Attributes

Parametric Data
PIC16LF1825-I/ST Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16LF1825-I/ST Microchip Technology Inc 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO14, 4.40 MM, PLASTIC, TSSOP-14
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code TSSOP
Package Description 4.40 MM, PLASTIC, TSSOP-14
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPERATES 1.8V MINIMUM SUPPLY AT 16 MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 5 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 12
Number of Serial I/Os 1
Number of Terminals 14
Number of Timers 7
On Chip Data RAM Width 8
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 1024
ROM (words) 8192
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1.2 mm
Speed 32 MHz
Supply Current-Max 4.5 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 4.4 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16LF1825-I/ST

This table gives cross-reference parts and alternative options found for PIC16LF1825-I/ST. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16LF1825-I/ST, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16LF1825-E/ST Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO14, 4.40 MM, PLASTIC, TSSOP-14 PIC16LF1825-I/ST vs PIC16LF1825-E/ST
PIC16LF1825-I/STVAO Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 32MHz, CMOS, PDSO14 PIC16LF1825-I/ST vs PIC16LF1825-I/STVAO
PIC16LF1825T-E/STVAO Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 32MHz, CMOS, PDSO14 PIC16LF1825-I/ST vs PIC16LF1825T-E/STVAO
Part Number Manufacturer Composite Price Description Compare
PIC16LF1825T-I/SL Microchip Technology Inc $1.7700 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO14, 3.90 MM, PLASTIC, SOIC-14 PIC16LF1825-I/ST vs PIC16LF1825T-I/SL
PIC16LF1825T-I/ST Microchip Technology Inc $1.8300 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO14, 4.40 MM, PLASTIC, TSSOP-14 PIC16LF1825-I/ST vs PIC16LF1825T-I/ST
PIC16LF1825T-I/ML Microchip Technology Inc $1.8900 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQCC16, 4 X 4 MM, 0.90 MM HEIGHT, PLASTIC, QFN-16 PIC16LF1825-I/ST vs PIC16LF1825T-I/ML
PIC16LF1825-E/SL Microchip Technology Inc $1.9150 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO14, 3.90 MM, PLASTIC, SOIC-14 PIC16LF1825-I/ST vs PIC16LF1825-E/SL
PIC16LF1825-E/ML Microchip Technology Inc $1.9850 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQCC16, 4 X 4 MM, 0.90 MM HEIGHT, PLASTIC, QFN-16 PIC16LF1825-I/ST vs PIC16LF1825-E/ML
PIC16LF1825T-I/STVAO Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 32MHz, CMOS, PDSO14 PIC16LF1825-I/ST vs PIC16LF1825T-I/STVAO
PIC16LF1825T-E/JQ Microchip Technology Inc Check for Price RISC MICROCONTROLLER PIC16LF1825-I/ST vs PIC16LF1825T-E/JQ
PIC16LF1825-I/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQCC16, 4 X 4 MM, 0.90 MM HEIGHT, PLASTIC, QFN-16 PIC16LF1825-I/ST vs PIC16LF1825-I/ML
PIC16LF1825T-E/SS Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO20, 5.30 MM, PLASTIC, SSOP-20 PIC16LF1825-I/ST vs PIC16LF1825T-E/SS
PIC16LF1825-E/SS Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO20, 5.30 MM, PLASTIC, SSOP-20 PIC16LF1825-I/ST vs PIC16LF1825-E/SS

PIC16LF1825-I/ST Related Parts

PIC16LF1825-I/ST Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC16LF1825-I/ST is 32 MHz.

  • The PIC16LF1825-I/ST has 14 KB of flash memory.

  • No, the PIC16LF1825-I/ST is a low-voltage device and operates at a maximum voltage of 3.6V.

  • Yes, the PIC16LF1825-I/ST has 256 bytes of built-in EEPROM.

  • The current consumption of the PIC16LF1825-I/ST in sleep mode is typically around 20 nA.
