PIC16F18854-E/SP by: Microchip Technology Inc

RISC MICROCONTROLLER

Part Details for PIC16F18854-E/SP by Microchip Technology Inc

Results Overview of PIC16F18854-E/SP by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

PIC16F18854-E/SP Information

PIC16F18854-E/SP by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F18854-E/SP

Part # Distributor Description Stock Price Buy
DISTI # 98Y9149
Newark Mcu, 8Bit, 32Mhz, Spdip-28, Product Range:Pic16 Family Pic16F188Xx Series Microcontrollers, Device Core:Pic16, Operating Frequency Max:32Mhz, Program Memory Size:7Kb, No. Of Pins:28Pins, Ic Case/Package:Spdip, No. Of I/O S:24I/O S Rohs Compliant: Yes |Microchip PIC16F18854-E/SP RoHS: Compliant Min Qty: 405 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.7000
$1.7000 Buy Now
DISTI # PIC16F18854-E/SP-ND
DigiKey IC MCU 8BIT 7KB FLASH 28SPDIP Min Qty: 405 Lead time: 8 Weeks Container: Tube Temporarily Out of Stock
  • 405 $1.6500
$1.6500 Buy Now
DISTI # PIC16F18854-E/SP
Avnet Americas 7KB FLASH 512B RAM 256B EE 10B ADC2 DAC COMP PWM CWG SMT HLT WWDT SCAN/CRC ZCD PPS EUSART 2XSPI/I2C IDLE/DOZE/PMD - Rail/Tube (Alt: PIC16F18854-E/SP) RoHS: Compliant Min Qty: 360 Package Multiple: 15 Lead time: 8 Weeks, 0 Days Container: Tube 0
  • 1 $1.9800
  • 25 $1.8200
  • 100 $1.6500
$1.6500 / $1.9800 Buy Now
DISTI # 579-PIC16F18854-E/SP
Mouser Electronics 8-bit Microcontrollers - MCU 256B EE 10b ADC 22xSPI/I2C RoHS: Compliant 0
  • 405 $1.6500
$1.6500 Order Now
DISTI # PIC16F18854-E/SP
Microchip Technology Inc 7KB Flash, 512B RAM, 256B EE, 10b ADC2, DAC, Comp, PWM, CWG, SMT, HLT, WWDT, SPDIP, Projected EOL: 2044-05-04 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube 1025

Alternates Available
  • 1 $1.9800
  • 25 $1.8200
  • 100 $1.6500
  • 1,000 $1.5200
  • 5,000 $1.4300
$1.4300 / $1.9800 Buy Now
Onlinecomponents.com Microcontroller - PIC XLP 16F, FuSa - 8-Bit - 32MHz - 25 I/O - 7KB (4K x 14) FLASH - 256 x 8 EEPROM - 512 x 8 RAM - 2.3 to 5.5V - 28-SPDIP. RoHS: Compliant 1020 Factory Stock
  • 102 $2.5200
  • 203 $1.9000
  • 304 $1.7800
  • 405 $1.7400
$1.7400 / $2.5200 Buy Now
DISTI # 81004671
Verical MCU 8-bit PIC RISC 7KB Flash 3.3V 28-Pin SPDIP Tube RoHS: Compliant Min Qty: 23 Package Multiple: 1 Americas - 86
  • 23 $3.3798
$3.3798 Buy Now
DISTI # PIC16F18854-E/SP
TME IC: PIC microcontroller, 7kB, 32MHz, 2.3÷5.5VDC, THT, DIP28, PIC16 Min Qty: 1 86
  • 1 $2.5000
  • 5 $2.4000
  • 30 $2.2100
$2.2100 / $2.5000 Buy Now
NAC 7KB Flash, 512B RAM, 256B EE, 10b ADC2, DAC, Comp, PWM, CWG, SMT, HLT, WWDT, SCAN/CRC, ZCD, PPS, EUSART, 2xSPI/I2C, IDLE/DOZE/PMD - Package: 28 SPDIP .300in TUBE RoHS: Compliant Min Qty: 180 Package Multiple: 15 Container: Tube 0
  • 1 $2.1500
  • 100 $1.9400
  • 500 $1.7900
  • 1,000 $1.7500
$1.7500 / $2.1500 Buy Now
Master Electronics Microcontroller - PIC XLP 16F, FuSa - 8-Bit - 32MHz - 25 I/O - 7KB (4K x 14) FLASH - 256 x 8 EEPROM - 512 x 8 RAM - 2.3 to 5.5V - 28-SPDIP. RoHS: Compliant 1020 Factory Stock
  • 102 $2.5200
  • 203 $1.9000
  • 304 $1.7800
  • 405 $1.7400
$1.7400 / $2.5200 Buy Now

Part Details for PIC16F18854-E/SP

PIC16F18854-E/SP CAD Models

  • Part Symbol

    Part Symbol

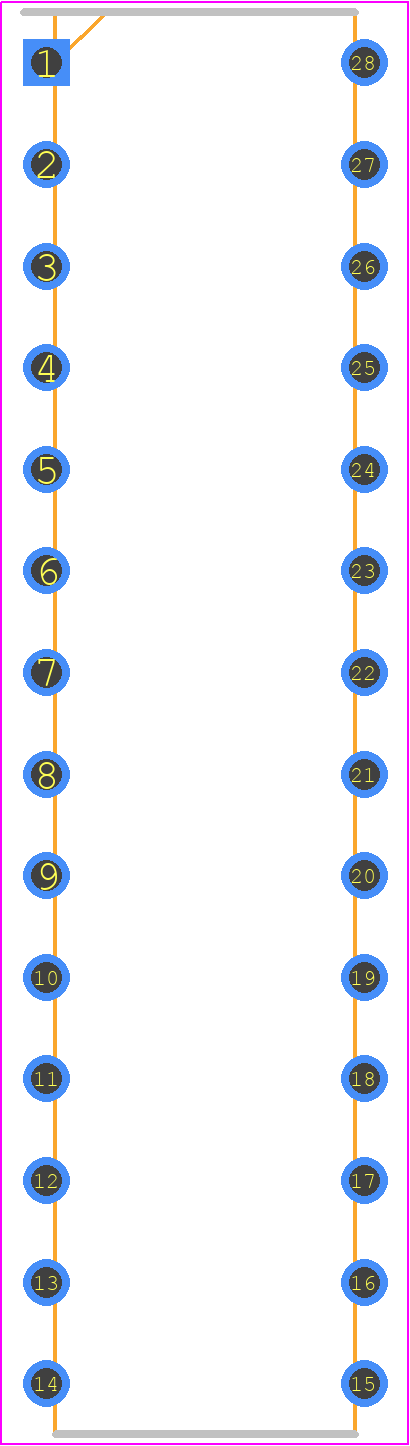

  • Footprint

    footprint

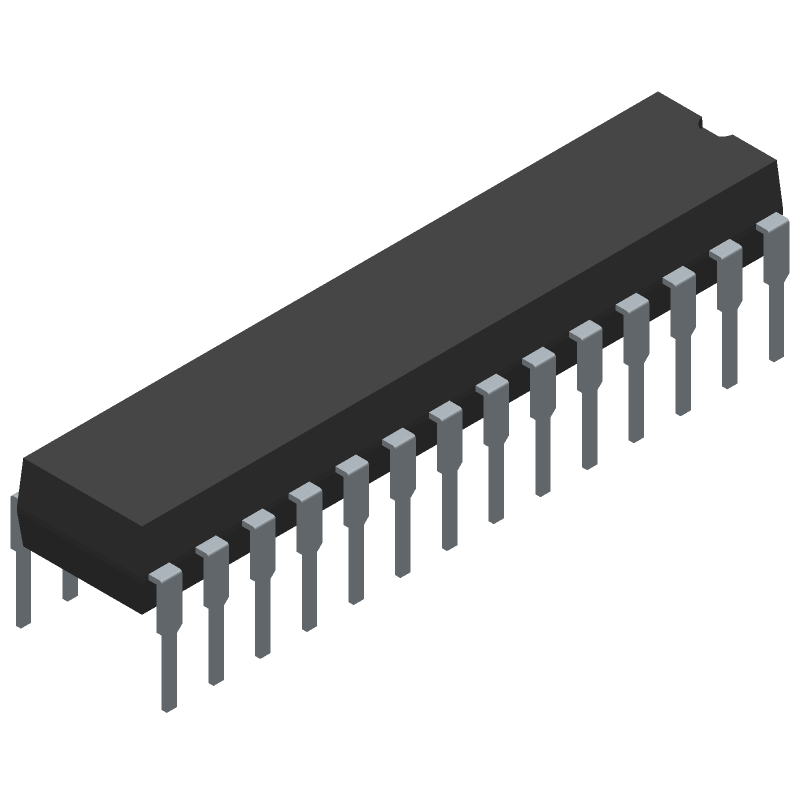

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F18854-E/SP Part Data Attributes

Parametric Data
PIC16F18854-E/SP Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F18854-E/SP Microchip Technology Inc RISC MICROCONTROLLER
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description DIP-28
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 8 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPEARTES AT 16 MHZ AT 2.3V MINIMUM SUPPLY
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDIP-T28
JESD-609 Code e3
Length 34.671 mm
Low Power Mode YES
Number of External Interrupts 1
Number of I/O Lines 25
Number of Serial I/Os 1
Number of Terminals 28
Number of Timers 11
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
RAM (bytes) 512
ROM (words) 7168
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 4.572 mm
Speed 32 MHz
Supply Current-Max 4.25 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount NO
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 15.24 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
