PIC16F1824T-I/SL by: Microchip Technology Inc

8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO14, 3.90 MM, PLASTIC, SOIC-14

Part Details for PIC16F1824T-I/SL by Microchip Technology Inc

Results Overview of PIC16F1824T-I/SL by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

PIC16F1824T-I/SL Information

PIC16F1824T-I/SL by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F1824T-I/SL

Part # Distributor Description Stock Price Buy
DISTI # 65R5968
Newark Microcontroller Mcu, 8 Bit, Pic16, 32Mhz, Soic-14, Product Range:Pic16 Family Pic16F18Xx Series Microcontrollers, Device Core:Pic16, Operating Frequency Max:32Mhz, Program Memory Size:7Kb, No. Of Pins:14Pins, Ic Case/Package:Soic Rohs Compliant: Yes |Microchip PIC16F1824T-I/SL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1774
  • 1 $1.1300
  • 25 $1.1300
  • 50 $1.1300
  • 100 $1.1300
$1.1300 Buy Now
DISTI # PIC16F1824T-I/SLCT-ND
DigiKey IC MCU 8BIT 7KB FLASH 14SOIC Min Qty: 1 Lead time: 7 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 321
In Stock
  • 1 $1.5600
  • 25 $1.4300
  • 100 $1.2900
  • 2,600 $1.2900
$1.2900 / $1.5600 Buy Now
DISTI # 65R5968
Avnet Americas 8 Bit MCU, Flash, PIC16 Family PIC16F18XX Series Microcontrollers, PIC16, 32 MHz, 7 KB, 14 Pins - Product that comes on tape, but is not reeled (Alt: 65R5968) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 55 Weeks, 0 Days Container: Ammo Pack 1774 Partner Stock
  • 1 $1.5700
  • 25 $1.4900
  • 50 $1.4100
  • 100 $1.3400
  • 250 $1.3400
$1.3400 / $1.5700 Buy Now
DISTI # PIC16F1824T-I/SL
Avnet Americas 8 Bit MCU, Flash, PIC16 Family PIC16F18XX Series Microcontrollers, PIC16, 32 MHz, 7 KB, 14 Pins - Tape and Reel (Alt: PIC16F1824T-I/SL) RoHS: Compliant Min Qty: 2600 Package Multiple: 2600 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 1 $1.5600
  • 25 $1.4300
  • 100 $1.2900
$1.2900 / $1.5600 Buy Now
DISTI # 579-PIC16F1824TISL
Mouser Electronics 8-bit Microcontrollers - MCU 7 KB Flash 256b RAM 32 MHz Int. Osc RoHS: Compliant 25797
  • 1 $1.3200
  • 100 $1.2900
  • 2,600 $1.2900
$1.2900 / $1.3200 Buy Now
DISTI # E54:1762_00744016
Arrow Electronics MCU 8-bit PIC RISC 7KB Flash 3.3V/5V 14-Pin SOIC N T/R RoHS: Compliant Min Qty: 2600 Package Multiple: 2600 Lead time: 7 Weeks Date Code: 2342 Europe - 26000
  • 2,600 $1.2700
$1.2700 Buy Now
DISTI # V72:2272_06462814
Arrow Electronics MCU 8-bit PIC RISC 7KB Flash 3.3V/5V 14-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2334 Container: Cut Strips Americas - 7147
  • 1 $1.6020
  • 10 $1.5780
  • 25 $1.5540
  • 100 $1.5300
  • 250 $1.5070
  • 500 $1.4830
  • 1,000 $1.4590
  • 3,000 $1.4350
  • 6,000 $1.4110
$1.4110 / $1.6020 Buy Now
DISTI # PIC16F1824T-I/SL
Microchip Technology Inc 7 KB Flash, 256 bytes RAM 32 MHz Int. Osc Enh Mid Range, SOIC, Projected EOL: 2034-07-23 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel 1170

Alternates Available
  • 1 $1.5600
  • 25 $1.4300
  • 100 $1.2900
  • 1,000 $1.2000
  • 5,000 $1.1300
$1.1300 / $1.5600 Buy Now
DISTI # 70451571
RS MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 14-Pin SOIC N T/R Min Qty: 2600 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 2,600 $2.5800
  • 26,000 $2.4500
  • 130,000 $2.3200
  • 260,000 $2.1900
$2.1900 / $2.5800 RFQ
Onlinecomponents.com MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V Automotive 14-Pin SOIC N T/R RoHS: Compliant 2685 In Stock
  • 10 $3.6500
  • 100 $3.5900
  • 250 $3.5400
  • 500 $3.4900
  • 650 $3.4300
  • 1,300 $1.8200
  • 1,950 $1.2800
  • 2,600 $1.2500
$1.2500 / $3.6500 Buy Now
DISTI # 69085674
Verical MCU 8-bit PIC RISC 7KB Flash 3.3V/5V 14-Pin SOIC N T/R RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 2324 Americas - 2250
  • 20 $4.7450
  • 100 $4.6670
  • 250 $4.6020
  • 500 $4.5370
  • 650 $4.4590
$4.4590 / $4.7450 Buy Now
DISTI # 29061162
Verical MCU 8-bit PIC RISC 7KB Flash 3.3V/5V 14-Pin SOIC N T/R RoHS: Compliant Min Qty: 45 Package Multiple: 1 Americas - 1779
  • 45 $1.5288
$1.5288 Buy Now
DISTI # PIC16F1824T-I/SL
IBS Electronics 14/20-PIN FLASH MICROCONTROLLERS WITH NANOWATT XLP TECHNOLOGY | IC MCU 8BIT 7KB FLASH 14SOIC Min Qty: 10 Package Multiple: 1 2685
  • 10 $4.7450
  • 100 $4.6670
  • 250 $4.6020
  • 500 $4.5370
  • 650 $4.4590
  • 1,300 $2.3660
  • 1,950 $1.6640
  • 2,600 $1.6250
$1.6250 / $4.7450 Buy Now
NAC 7 KB Flash, 256 bytes RAM, 32 MHz Int. Osc, 12 I/0, Enhanced Mid Range Core - Package: 14 SOIC .150in T/R RoHS: Compliant Min Qty: 2600 Package Multiple: 2600 0
  • 1 $1.6900
  • 100 $1.5300
  • 500 $1.4100
  • 1,000 $1.3800
$1.3800 / $1.6900 Buy Now
DISTI # SMC-PIC16F1824T-I/SL
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 31200
RFQ
DISTI # PIC16F1824T-I/SL
Avnet Silica 8 Bit MCU Flash PIC16 Family PIC16F18XX Series Microcontrollers PIC16 32 MHz 7 KB 14 Pins (Alt: PIC16F1824T-I/SL) RoHS: Compliant Min Qty: 2600 Package Multiple: 2600 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F1824T-I/SL
EBV Elektronik 8 Bit MCU Flash PIC16 Family PIC16F18XX Series Microcontrollers PIC16 32 MHz 7 KB 14 Pins (Alt: PIC16F1824T-I/SL) RoHS: Compliant Min Qty: 2600 Package Multiple: 2600 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
LCSC PIC 32MHz SOIC-14 Microcontrollers (MCU/MPU/SOC) ROHS 102
  • 1 $1.5425
  • 10 $1.2870
  • 30 $1.1455
  • 100 $0.9797
  • 500 $0.9082
  • 1,000 $0.8763
$0.8763 / $1.5425 Buy Now
Master Electronics MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V Automotive 14-Pin SOIC N T/R RoHS: Compliant 2685 In Stock
  • 10 $3.6500
  • 100 $3.5900
  • 250 $3.5400
  • 500 $3.4900
  • 650 $3.4300
  • 1,300 $1.8200
  • 1,950 $1.2800
  • 2,600 $1.2500
$1.2500 / $3.6500 Buy Now
Win Source Electronics 14/20-Pin Flash Microcontrollers with nanoWatt XLP Technology | IC MCU 8BIT 7KB FLASH 14SOIC 32622
  • 60 $0.9041
  • 120 $0.8458
  • 185 $0.8167
  • 265 $0.7583
  • 345 $0.7292
  • 430 $0.7000
$0.7000 / $0.9041 Buy Now

Part Details for PIC16F1824T-I/SL

PIC16F1824T-I/SL CAD Models

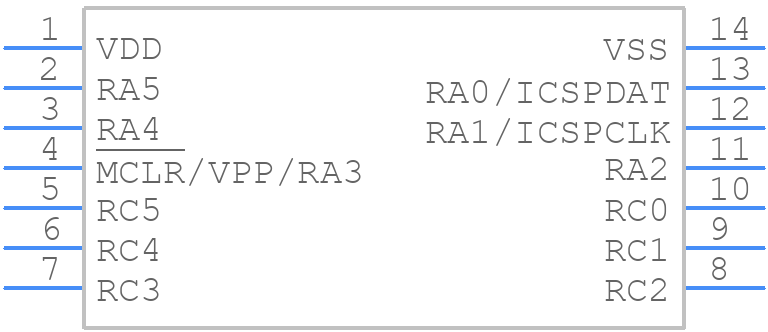

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F1824T-I/SL Part Data Attributes

Parametric Data
PIC16F1824T-I/SL Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F1824T-I/SL Microchip Technology Inc 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO14, 3.90 MM, PLASTIC, SOIC-14
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Package Description 3.90 MM, LEAD FREE, PLASTIC, SOIC-14
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature 1.8 V MINIMUM SUPPLY AT 16 MHZ
Address Bus Width
Bit Size 8
CPU Family PIC
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 8.65 mm
Moisture Sensitivity Level 1
Number of I/O Lines 12
Number of Terminals 14
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 256
ROM (words) 7168
ROM Programmability FLASH
Seated Height-Max 1.75 mm
Speed 32 MHz
Supply Current-Max 3.4 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 3.9 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
