PI6C557-03ALEX by:

Clock Generator, 200MHz, CMOS, PDSO16, TSSOP-16

Part Details for PI6C557-03ALEX by Diodes Incorporated

Results Overview of PI6C557-03ALEX by Diodes Incorporated

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

PI6C557-03ALEX Information

PI6C557-03ALEX by Diodes Incorporated is a Clock Generator.
Clock Generators are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PI6C557-03ALEX

Part # Distributor Description Stock Price Buy
DISTI # 29AK3758
Newark Clock Generator, 200Mhz, -40 To 85Deg C |Diodes Inc. PI6C557-03ALEX RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $2.3700
  • 10 $1.5300
  • 25 $1.3400
  • 50 $1.2100
  • 100 $1.0800
  • 250 $0.9250
  • 500 $0.8570
  • 1,000 $0.8020
$0.8020 / $2.3700 Buy Now
DISTI # PI6C557-03ALEX
Avnet Americas PLL Clock Generator, 25 MHz to 200 MHz, 2 Outputs, 3 V to 3.6 V, 16 Pins, TSSOP - Tape and Reel (Alt: PI6C557-03ALEX) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel 502500 Factory Stock
  • 2,500 $0.5569
  • 5,000 $0.5528
  • 10,000 $0.5441
  • 15,000 $0.5357
  • 20,000 $0.5294
$0.5294 / $0.5569 Buy Now
DISTI # 729-PI6C557-03ALEX
Mouser Electronics Clock Generators & Support Products PCI express Gen 2 2 ouput clock gen RoHS: Compliant 4534
  • 1 $1.5600
  • 10 $1.1400
  • 25 $1.0400
  • 100 $0.9180
  • 250 $0.8630
  • 500 $0.8300
  • 1,000 $0.7630
  • 2,500 $0.7630
  • 7,500 $0.6280
$0.6280 / $1.5600 Buy Now
Bristol Electronics   11185
RFQ
DISTI # PI6C557-03ALEX
Avnet Asia PLL Clock Generator, 25 MHz to 200 MHz, 2 Outputs, 3 V to 3.6 V, 16 Pins, TSSOP (Alt: PI6C557-03ALEX) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days 0
  • 2,500 $0.4007
  • 5,000 $0.3955
  • 7,500 $0.3904
  • 12,500 $0.3854
  • 25,000 $0.3759
  • 62,500 $0.3669
  • 125,000 $0.3582
$0.3582 / $0.4007 Buy Now
DISTI # PI6C557-03ALEX
Avnet Silica PLL Clock Generator 25 MHz to 200 MHz 2 Outputs 3 V to 36 V 16 Pins TSSOP (Alt: PI6C557-03ALEX) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Silica - 0
Buy Now
Win Source Electronics Clock Generator 25MHz-IN 200MHz-OUT 16-Pin TSSOP T/R / IC CLOCK GENERATOR 16TSSOP 406000
  • 115 $0.5198
  • 240 $0.4863
  • 370 $0.4689
  • 535 $0.4354
  • 690 $0.4193
  • 865 $0.4019
$0.4019 / $0.5198 Buy Now

Part Details for PI6C557-03ALEX

PI6C557-03ALEX CAD Models

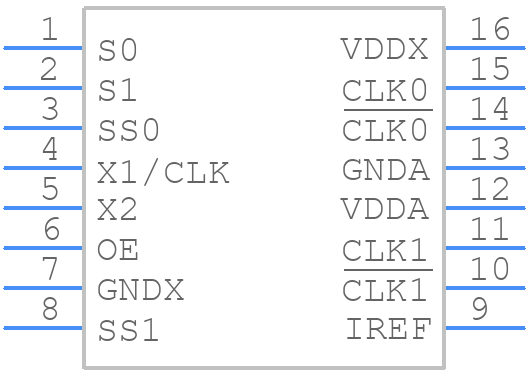

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PI6C557-03ALEX Part Data Attributes

Parametric Data
PI6C557-03ALEX Diodes Incorporated
Buy Now Datasheet
Compare Parts:
PI6C557-03ALEX Diodes Incorporated Clock Generator, 200MHz, CMOS, PDSO16, TSSOP-16
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer DIODES INC
Package Description TSSOP-16
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 12 Weeks
Samacsys Manufacturer Diodes Incorporated
JESD-30 Code R-PDSO-G16
JESD-609 Code e3
Length 5 mm
Moisture Sensitivity Level 1
Number of Terminals 16
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Clock Frequency-Max 200 MHz
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Primary Clock/Crystal Frequency-Nom 25 MHz
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Supply Current-Max 95 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 mm
uPs/uCs/Peripheral ICs Type CLOCK GENERATOR, PROCESSOR SPECIFIC

Alternate Parts for PI6C557-03ALEX
