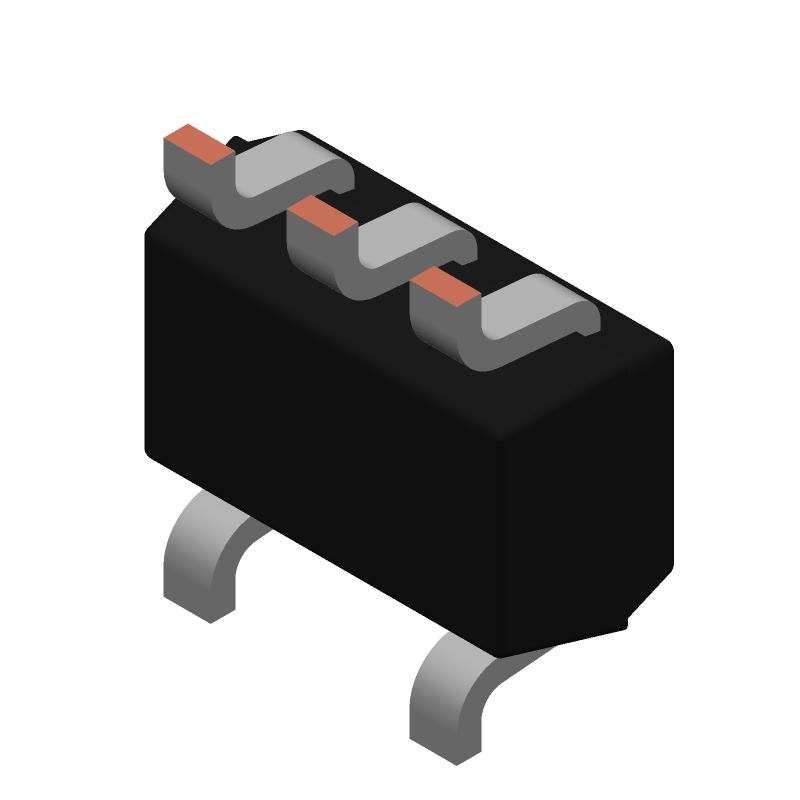

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PESD5V0L4UG,115 by Nexperia
Results Overview of PESD5V0L4UG,115 by Nexperia
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
PESD5V0L4UG,115 Information
PESD5V0L4UG,115 by Nexperia is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PESD5V0L4UG,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38K6659
|
Newark | Esd Protection Device, 5V, Sot-353, Clamping Voltage Vc Max:10V, Diode Case Style:Sot-353, No. Of Pins:5Pins, Operating Voltage:5V, Power Dissipation Pd:30W, Product Range:Pesdxl4Ug Series, Automotive Qualification Standard:- Rohs Compliant: Yes |Nexperia PESD5V0L4UG,115 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 80 |
|
$0.0250 | Buy Now |
|
DISTI #
1727-3835-1-ND
|
DigiKey | TVS DIODE 5VWM 13VC 5TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
6050 In Stock |
|
$0.0608 / $0.4500 | Buy Now |
|
DISTI #
PESD5V0L4UG,115
|
Avnet Americas | ESD Suppressor TVS 20KV 5-Pin SOT-353 T/R - Tape and Reel (Alt: PESD5V0L4UG,115) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0547 / $0.0600 | Buy Now |
|
DISTI #
PESD5V0L4UG,115
|
Avnet Americas | ESD Suppressor TVS 20KV 5-Pin SOT-353 T/R - Tape and Reel (Alt: PESD5V0L4UG,115) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0514 / $0.0562 | Buy Now |
|
DISTI #
771-PESD5V0L4UG-T/R
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes Low capacitance unidirectional quadruple ESD protection diode arrays RoHS: Compliant | 549 |
|
$0.0620 / $0.4600 | Buy Now |
|
DISTI #
E02:0323_00163716
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 5V 5-Pin TSSOP T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2507 | Europe - 6000 |
|
$0.0626 / $0.0672 | Buy Now |
|
DISTI #
V72:2272_06539759
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 5V 5-Pin TSSOP T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 49 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2238 Container: Cut Strips | Americas - 49 |
|
$0.1551 | Buy Now |
|
DISTI #
87795399
|
Verical | ESD Suppressor TVS Uni-Dir 5V 5-Pin TSSOP T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2507 | Americas - 6000 |
|
$0.0634 / $0.0682 | Buy Now |
|
|
Bristol Electronics | Min Qty: 17 | 3000 |
|
$0.0600 / $0.3000 | Buy Now |
|
|
Bristol Electronics | Min Qty: 17 | 975 |
|
$0.0900 / $0.3000 | Buy Now |
Part Details for PESD5V0L4UG,115
PESD5V0L4UG,115 CAD Models
PESD5V0L4UG,115 Part Data Attributes
|
|
PESD5V0L4UG,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PESD5V0L4UG,115
Nexperia
PESD5V0L4UG - Low capacitance unidirectional quadruple ESD protection diode arrays@en-us TSSOP 5-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TSSOP | |
| Pin Count | 5 | |
| Manufacturer Package Code | SOT353 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 6 Weeks | |
| Date Of Intro | 2017-02-01 | |
| Samacsys Manufacturer | Nexperia | |
| Breakdown Voltage-Max | 7.14 V | |
| Breakdown Voltage-Min | 6.46 V | |
| Configuration | COMMON ANODE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 30 W | |
| Number of Elements | 4 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.3 W | |
| Reference Standard | IEC-60134; IEC-61000-4-2, 4-5 | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for PESD5V0L4UG,115
This table gives cross-reference parts and alternative options found for PESD5V0L4UG,115. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PESD5V0L4UG,115, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PESD5V0L4UG | Philips Semiconductors | Check for Price | Trans Voltage Suppressor Diode, 5V V(RWM), Unidirectional, | PESD5V0L4UG,115 vs PESD5V0L4UG |
PESD5V0L4UG,115 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for PESD5V0L4UG,115 is -40°C to 125°C.
-
To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point above 217°C. Also, avoid overheating the device during soldering.
-
For optimal performance, use a PCB layout with a solid ground plane and keep the device as close to the protected IC as possible. Also, use short and wide traces to minimize inductance.
-
Yes, the PESD5V0L4UG,115 is AEC-Q101 qualified, making it suitable for use in automotive applications.
-
The DHV package is a SOT23-6 package, which is suitable for most applications. However, if you need a smaller package, consider the XSON6 package option.
