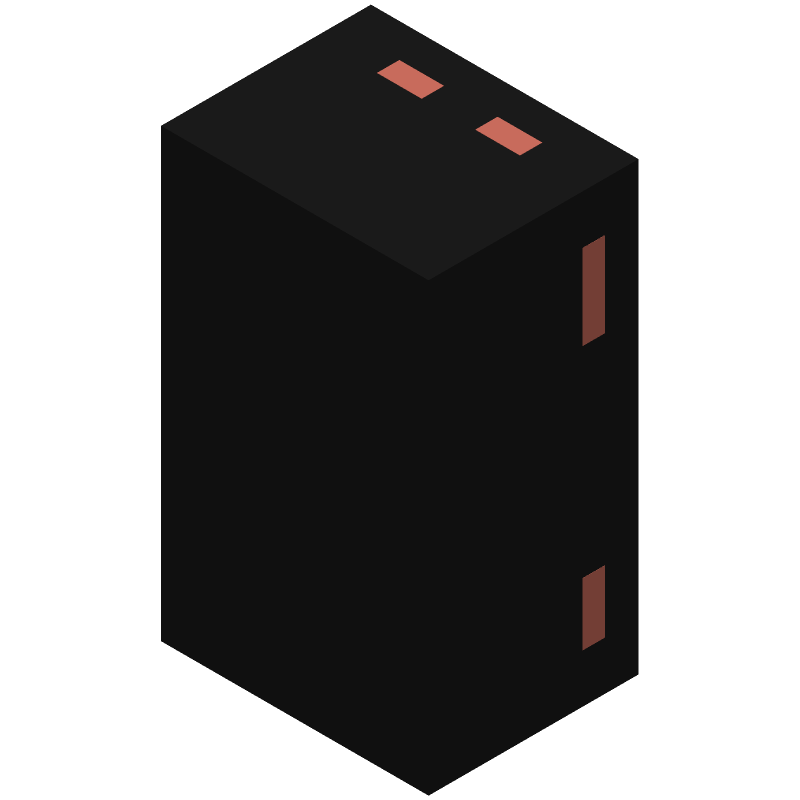

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PESD3V3S1UL,315 by Nexperia
Results Overview of PESD3V3S1UL,315 by Nexperia
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
PESD3V3S1UL,315 Information
PESD3V3S1UL,315 by Nexperia is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PESD3V3S1UL,315
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85Y0100
|
Newark | Diode, aec-Q101,3.3V, sod-882,clamping Voltage Vc Max-20V, diode Case Style-Sod-882,no. Of Pins-2Pins, operating Voltage-3.3V, power Dissipation Pd-,product Range-Pesdxs1Ul Series, automotive Qualification Standard-Aec-Q101, Rohs Compliant: Yes |Nexperia PESD3V3S1UL,315 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 11298 |
|
$0.0320 | Buy Now |
|
DISTI #
1727-5353-1-ND
|
DigiKey | TVS DIODE 3.3VWM 20VC DFN1006-2 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
22531 In Stock |
|
$0.0493 / $0.2400 | Buy Now |
|
DISTI #
PESD3V3S1UL,315
|
Avnet Americas | ESD Protection Device, 20 V, SOD-882, 2 Pins, 3.3 V, 300 pF, PESDxS1UL - Tape and Reel (Alt: PESD3V3S1UL,315) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days Container: Reel | 90000 |
|
$0.0538 | Buy Now |
|
DISTI #
771-PESD3V3S1UL315
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes Unidirectional ESD protection diode RoHS: Compliant | 18756 |
|
$0.0290 / $0.2400 | Buy Now |
|
DISTI #
V36:1790_06539720
|
Arrow Electronics | ESD Suppressor TVS Uni-Dir 3.3V 2-Pin DFN T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks Date Code: 2451 | Americas - 30000 |
|
$0.0290 | Buy Now |
|
DISTI #
86019996
|
Verical | ESD Suppressor TVS Uni-Dir 3.3V 2-Pin DFN T/R RoHS: Compliant Min Qty: 15152 Package Multiple: 1 Date Code: 2201 | Americas - 70000 |
|
$0.0208 / $0.0248 | Buy Now |
|
DISTI #
74073556
|
Verical | ESD Suppressor TVS Uni-Dir 3.3V 2-Pin DFN T/R RoHS: Compliant Min Qty: 1563 Package Multiple: 1 | Americas - 3770 |
|
$0.0454 / $0.0468 | Buy Now |
|
|
Bristol Electronics | 9000 |
|
RFQ | ||
|
|
Rochester Electronics | PESD3V3S1UL - Unidirectional ESD protection diode RoHS: Compliant Status: Active Min Qty: 1 | 77818 |
|
$0.0166 / $0.0268 | Buy Now |
|
|
Future Electronics | PESD Series 20 V 300 pF SMT Uni-Directional ESD Protection Diode - SOD-882 Min Qty: 10000 Package Multiple: 10000 |
150000 null |
|
$0.0209 / $0.0224 | Buy Now |
Part Details for PESD3V3S1UL,315
PESD3V3S1UL,315 CAD Models
PESD3V3S1UL,315 Part Data Attributes
|
|
PESD3V3S1UL,315
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PESD3V3S1UL,315
Nexperia
PESD3V3S1UL - Unidirectional ESD protection diode@en-us DFN 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | DFN | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD882 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Breakdown Voltage-Max | 6 V | |
| Breakdown Voltage-Min | 5.2 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PBCC-N2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 150 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Reference Standard | IEC-61000-4-2, 4-4, 4-5 | |
| Rep Pk Reverse Voltage-Max | 3.3 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN | |
| Terminal Form | NO LEAD | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
PESD3V3S1UL,315 Frequently Asked Questions (FAQ)
-
The maximum surge current that PESD3V3S1UL,315 can handle is 3A, as per the IEC 61000-4-5 standard.
-
The PESD3V3S1UL,315 protects against ESD by using a combination of voltage clamping and current limiting to prevent damage to the protected circuit.
-
The response time of the PESD3V3S1UL,315 to an ESD event is typically in the range of 1-2 nanoseconds.
-
Yes, the PESD3V3S1UL,315 is qualified to the AEC-Q101 standard, making it suitable for use in automotive applications.
-
The operating temperature range of the PESD3V3S1UL,315 is -40°C to 125°C.
