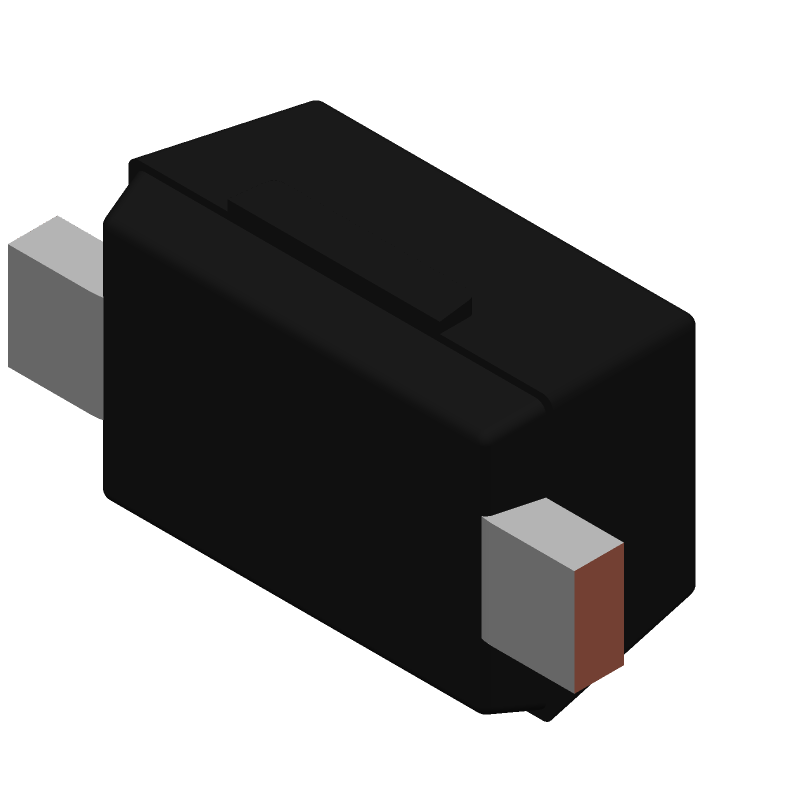

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PESD3V3L1UB,115 by Nexperia
Results Overview of PESD3V3L1UB,115 by Nexperia
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
PESD3V3L1UB,115 Information
PESD3V3L1UB,115 by Nexperia is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PESD3V3L1UB,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
75T7978
|
Newark | Diode, Esd, Low Capacitance, Sod523, Clamping Voltage Vc Max:11V, Diode Case Style:Sod-523, No. Of Pins:2Pins, Operating Voltage:-, Power Dissipation Pd:45W, Product Range:-, Automotive Qualification Standard:-, Msl:Msl 1 - Unlimitedrohs Compliant: Yes |Nexperia PESD3V3L1UB,115 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 6531 |
|
$0.1110 / $0.2720 | Buy Now |
|
DISTI #
1727-5418-1-ND
|
DigiKey | TVS DIODE 3.3VWM 11VC SOD523 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
42875 In Stock |
|
$0.0594 / $0.2500 | Buy Now |
|
DISTI #
PESD3V3L1UB,115
|
Avnet Americas | ESD Protection Device, 11 V, SOD-523, 2 Pins, 3.3 V, 40 pF - Tape and Reel (Alt: PESD3V3L1UB,115) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0553 / $0.0606 | Buy Now |
|
DISTI #
771-PESD3V3L1UB115
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes Low capacitance unidirectional ESD protection diode RoHS: Compliant | 48435 |
|
$0.0600 / $0.2500 | Buy Now |
|
DISTI #
E02:0323_00951520
|
Arrow Electronics | ESD Suppressor Diode TVS Uni-Dir 3.3V 11Vc Automotive AEC-Q101 2-Pin SC-79 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2510 | Europe - 27000 |
|
$0.0576 / $0.0623 | Buy Now |
|
DISTI #
V72:2272_06539708
|
Arrow Electronics | ESD Suppressor Diode TVS Uni-Dir 3.3V 11Vc Automotive AEC-Q101 2-Pin SC-79 T/R RoHS: Compliant Min Qty: 1412 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2238 Container: Cut Strips | Americas - 8502 |
|
$0.0609 / $0.0708 | Buy Now |
|
|
Future Electronics | PESD3V3L1UB Series 6 V 40 pF Uni-Directional ESD Protection Diode - SOD-523 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Container: Reel | 9000Reel |
|
$0.0597 / $0.0644 | Buy Now |
|
|
Future Electronics | PESD3V3L1UB Series 6 V 40 pF Uni-Directional ESD Protection Diode - SOD-523 RoHS: Compliant pbFree: Yes Min Qty: 18000 Package Multiple: 3000 Container: Reel | 0Reel |
|
$0.0597 / $0.0644 | Buy Now |
|
DISTI #
88089255
|
Verical | ESD Suppressor Diode TVS Uni-Dir 3.3V 11Vc Automotive AEC-Q101 2-Pin SC-79 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2510 | Americas - 27000 |
|
$0.0570 / $0.0616 | Buy Now |
|
DISTI #
86020588
|
Verical | ESD Suppressor Diode TVS Uni-Dir 3.3V 11Vc Automotive AEC-Q101 2-Pin SC-79 T/R RoHS: Compliant Min Qty: 4992 Package Multiple: 1 Date Code: 2301 | Americas - 6000 |
|
$0.0561 / $0.0751 | Buy Now |
Part Details for PESD3V3L1UB,115
PESD3V3L1UB,115 CAD Models
PESD3V3L1UB,115 Part Data Attributes
|
|
PESD3V3L1UB,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PESD3V3L1UB,115
Nexperia
Low capacitance unidirectional ESD protection diode@en-us SOD 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOD | |
| Package Description | SC-79, SOD-523, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD523 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 2017-02-01 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOW CAPACITANCE | |
| Breakdown Voltage-Max | 6 V | |
| Breakdown Voltage-Min | 5.3 V | |
| Breakdown Voltage-Nom | 5.6 V | |
| Clamping Voltage-Max | 11 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 45 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Reference Standard | IEC-60134; IEC-61000-4-5 | |
| Rep Pk Reverse Voltage-Max | 3.3 V | |
| Reverse Current-Max | 0.3 µA | |
| Reverse Test Voltage | 3.3 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
PESD3V3L1UB,115 Frequently Asked Questions (FAQ)
-
A good PCB layout for PESD3V3L1UB,115 involves placing the device close to the protected IC, using short and wide traces for the signal lines, and ensuring a solid ground plane for heat dissipation and noise reduction.
-
The choice of package type (e.g., SOT23, SOT323, or SOT523) depends on the specific requirements of your application, including available board space, thermal considerations, and reflow soldering capabilities.
-
The maximum operating temperature range for PESD3V3L1UB,115 is -40°C to 150°C, but it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
-
Yes, PESD3V3L1UB,115 is suitable for ESD protection in high-speed data lines, such as USB, HDMI, and Ethernet, due to its low capacitance and high surge capability.
-
To ensure proper soldering, follow the recommended reflow soldering profile, use a solder paste with a suitable melting point, and ensure the PCB is clean and free of oxidation.
