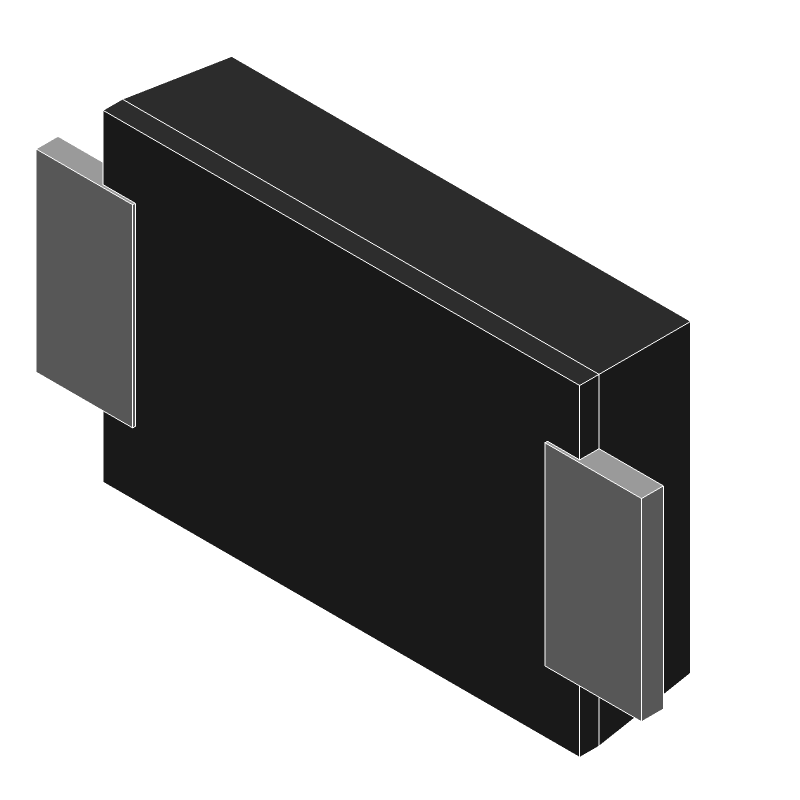

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PDZVTFTR3.6B by ROHM Semiconductor
Results Overview of PDZVTFTR3.6B by ROHM Semiconductor
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
PDZVTFTR3.6B Information
PDZVTFTR3.6B by ROHM Semiconductor is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PDZVTFTR3.6B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
94AC7735
|
Newark | Zener Diode, 3.6V, 1W, Sod-128, Zener Voltage Nom:3.6V, Power Dissipation:1W, Diode Case Style:Sod-128, No. Of Pins:2Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Product Range:Pdzvtf Series Rohs Compliant: Yes |Rohm PDZVTFTR3.6B RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 100 |
|
$0.1350 / $0.4300 | Buy Now |
|
DISTI #
29AK3204
|
Newark | Zener Diode, 3.6V, 1W, Sod-128, Zener Voltage Vz Typ:3.6V, Power Dissipation Pd:1W, Diode Case Style:Sod-128, Zener Tolerance ±:-, No. Of Pins:2Pins, Operating Temperature Max:150°C, Product Range:Pdzvtf Series, Automotive Rohs Compliant: Yes |Rohm PDZVTFTR3.6B RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0920 / $0.1000 | Buy Now |
|
DISTI #
PDZVTFTR3.6BCT-ND
|
DigiKey | DIODE ZENER 3.8V 1W PMDTM Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0925 / $0.5800 | Buy Now |
|
DISTI #
755-PDZVTFTR3.6B
|
Mouser Electronics | Zener Diodes 3.6-4V 40mA SOD-128, PMDTM RoHS: Compliant | 0 |
|
$0.0920 / $0.4300 | Order Now |
|
DISTI #
66284913
|
Verical | Zener Diode Single 3.8V 5% 15Ohm 1000mW Automotive 2-Pin PMDT-M T/R Min Qty: 421 Package Multiple: 1 Date Code: 1801 | Americas - 2980 |
|
$0.1688 / $0.1865 | Buy Now |
|
DISTI #
82724472
|
Verical | Zener Diode Single 3.8V 5% 15Ohm 1000mW Automotive 2-Pin PMDT-M T/R Min Qty: 315 Package Multiple: 1 Date Code: 2338 | Americas - 600 |
|
$0.1440 / $0.1830 | Buy Now |
|
|
Quest Components | 2384 |
|
$0.2080 / $0.5200 | Buy Now | |
|
DISTI #
PDZVTFTR3.6B
|
TME | Diode: Zener, 1W, 3.6V, SMD, reel,tape, SOD128, single diode, 60uA Min Qty: 1 | 0 |
|
$0.0860 / $0.3850 | RFQ |
Part Details for PDZVTFTR3.6B
PDZVTFTR3.6B CAD Models
PDZVTFTR3.6B Part Data Attributes
|
|
PDZVTFTR3.6B
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
PDZVTFTR3.6B
ROHM Semiconductor
Zener Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Date Of Intro | 2017-04-04 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | HIGH RELIABILITY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 1 W | |
| Reference Standard | AEC-Q101 | |
| Reference Voltage-Nom | 3.6 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 5.27% | |
| Working Test Current | 40 mA |
