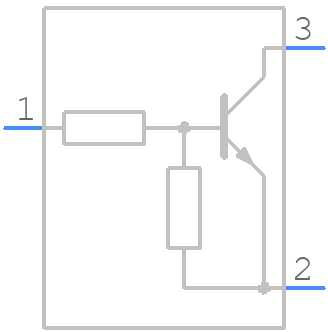

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PDTC114YT,215 by Nexperia
Results Overview of PDTC114YT,215 by Nexperia
- Distributor Offerings: (26 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
PDTC114YT,215 Information
PDTC114YT,215 by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PDTC114YT,215
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
04X4938
|
Newark | Bipolar Pre-Biased/Digital Transistor, Brt, 50 V, 100 Ma, 10 Kohm, 47 Kohm, 4.7, Sot-23 Rohs Compliant: Yes |Nexperia PDTC114YT,215 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 3000 |
|
$0.0250 / $0.0280 | Buy Now |
|
DISTI #
38K6603
|
Newark | Digital Transistor, 50V, 0.1A, Transistor Polarity:Single Npn, Collector Emitter Voltage Max Npn:50V, Collector Emitter Voltage Max Pnp:-, Continuous Collector Current:100Ma, Base Input Resistor R1:10Kohm, No. Of Pins:3 Pin Rohs Compliant: Yes |Nexperia PDTC114YT,215 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 109 |
|
$0.0060 | Buy Now |
|
DISTI #
35AH4627
|
Newark | Pdtc114Yt/Sot23/To-236Ab Rohs Compliant: Yes |Nexperia PDTC114YT,215 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0250 / $0.0280 | Buy Now |
|
DISTI #
1727-5134-1-ND
|
DigiKey | TRANS PREBIAS NPN 50V TO236AB Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
31125 In Stock |
|
$0.0120 / $0.1200 | Buy Now |
|
DISTI #
PDTC114YT,215
|
Avnet Americas | Trans Digital BJT NPN 50V 100mA 3-Pin TO-236AB T/R - Tape and Reel (Alt: PDTC114YT,215) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 54000 |
|
$0.0163 | Buy Now |
|
DISTI #
771-PDTC114YTT/R
|
Mouser Electronics | Digital Transistors 50 V, 100 mA NPN resistor-equipped transistor, R1 = 10 kohm, R2 = 47 kohm RoHS: Compliant | 130847 |
|
$0.0130 / $0.1200 | Buy Now |
|
DISTI #
E02:0323_00017360
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 250mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2514 | Europe - 201000 |
|
$0.0148 / $0.0194 | Buy Now |
|
DISTI #
P40:2555_19664759
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 250mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 9493 Package Multiple: 1 Date Code: 2212 | Europe - 45000 |
|
$0.0148 | Buy Now |
|
DISTI #
A03:0893_00017360
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 250mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2435 | Asia - 6000 |
|
$0.0104 / $0.0146 | Buy Now |
|
|
Future Electronics | PDTC114YT Series 50 V 100 mA SMT NPN Resistor-Equipped Transistor - SOT-23 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Container: Cut Tape/Mini-Reel | 2870Cut Tape/Mini-Reel |
|
$0.0239 / $0.1000 | Buy Now |
Part Details for PDTC114YT,215
PDTC114YT,215 CAD Models
PDTC114YT,215 Part Data Attributes
|
|
PDTC114YT,215
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PDTC114YT,215
Nexperia
PDTC114YT - 50 V, 100 mA NPN resistor-equipped transistor; R1 = 10 kΩ, R2 = 47 kΩ@en-us TO-236 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TO-236 | |
| Package Description | PLASTIC PACKAGE-3 | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT23 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.21.00.95 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1997-12-12 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | BUILT IN BIAS RESISTANCE RATIO IS 4.7 | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Base Capacitance-Max | 3.5 pF | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SINGLE WITH BUILT-IN RESISTOR | |
| DC Current Gain-Min (hFE) | 100 | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation Ambient-Max | 0.25 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| VCEsat-Max | 0.3 V |
